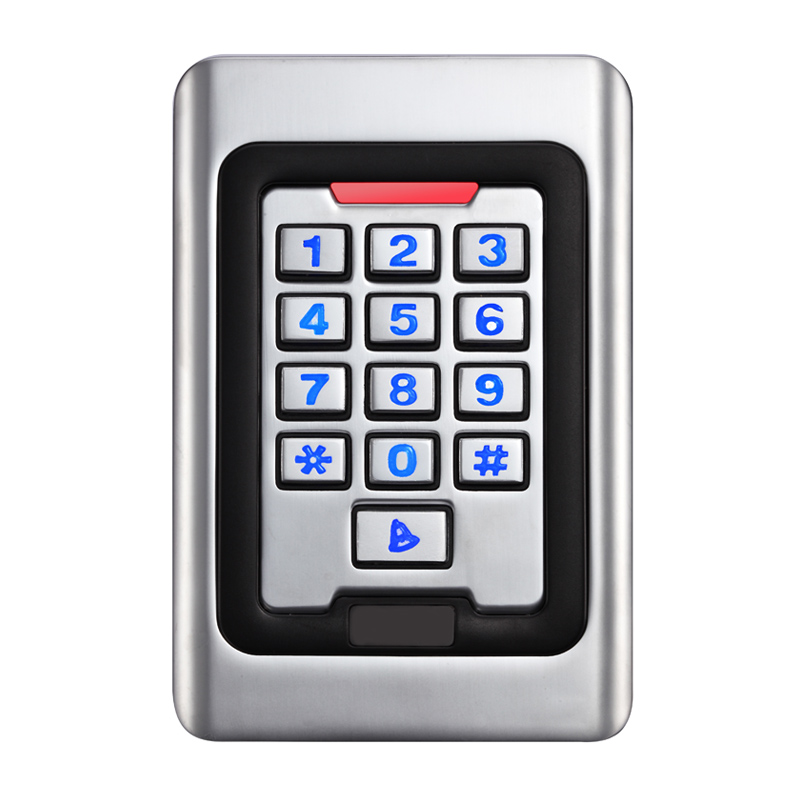

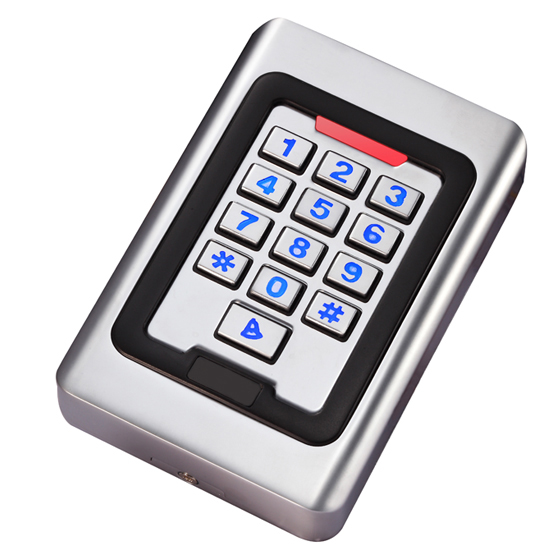

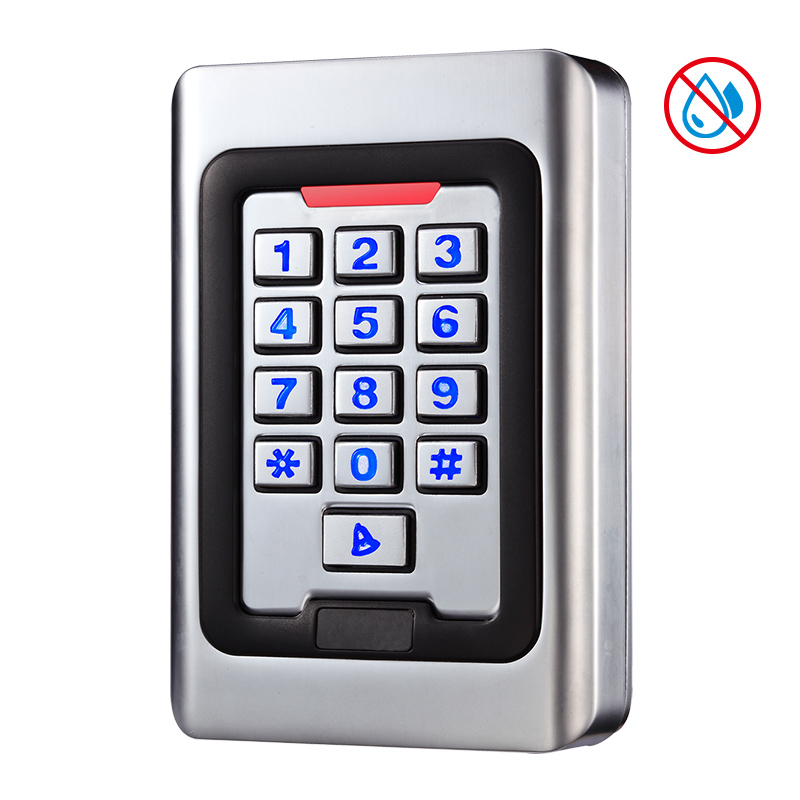

Metal Standalone Access Control Keypad

> Card type: EM Card

> Full programming from the keypad

> WG26 Input/output

> 2000 uses, supports Card, PIN, Card + PIN

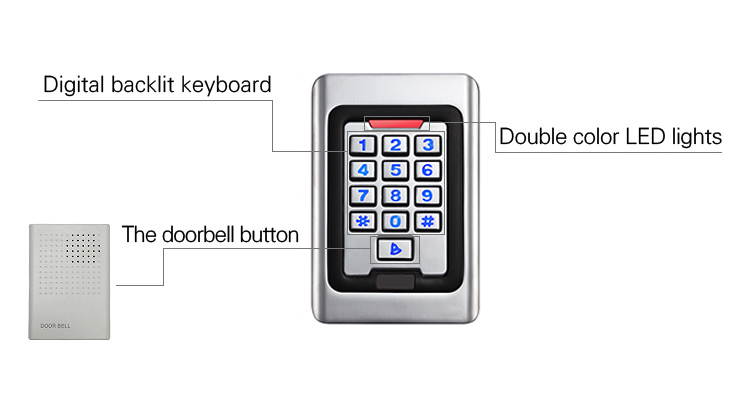

> Digital backlit keypad

> Red, Yellow, and Green LEDs display the working status

  • Brand:

    S4A
  • Item NO.:

    K9
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Metal Standalone Access control

Model No.: K9 EM

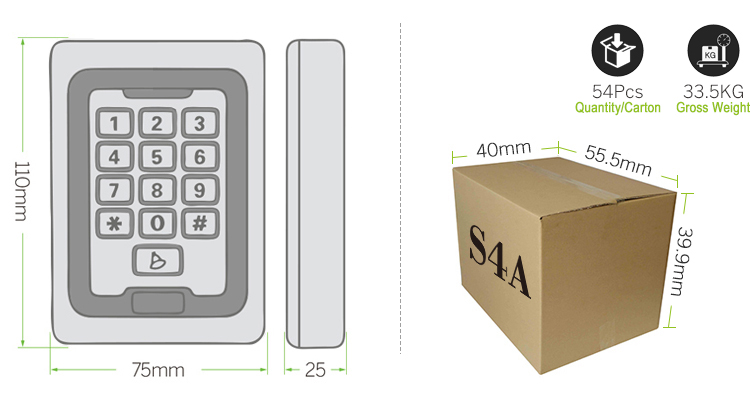

Dimension

110*75*25mm

Card type

EM 125KHz

Operating Voltage

DC 12V±10%

User Capacity

2000

Card Reading Distance

3-6 cm

Active Current

<60mA

Idle Current

25±5 mA

Lock Output Load

Max 3A

Alarm Output Load

Max 20A

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Adjustable Door Relay time

0 -99 seconds

Adjustable Alarm Time

0- 3 minutes

Wiegand Interface

Wiegand 26 bit

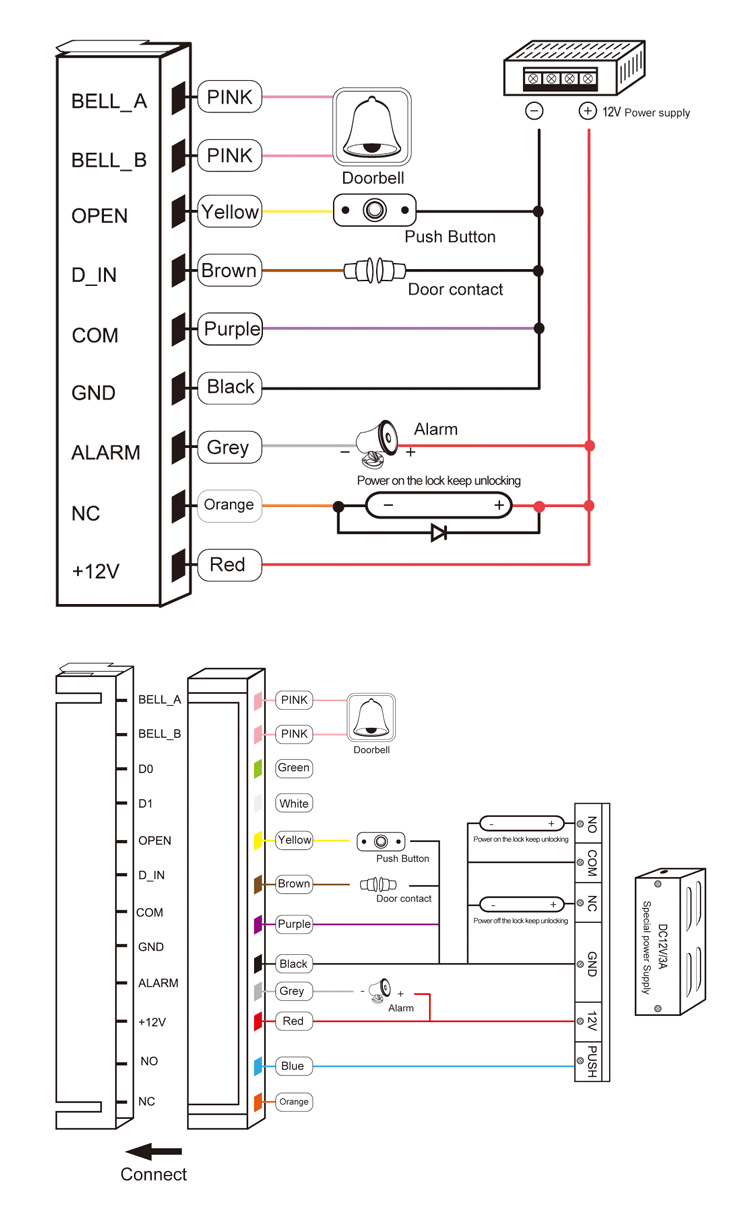

Wiring Connections

Electric Lock, Exit Button, External Alarm, External reader

Metal Standalone Access control

Metal Standalone Access control


Metal Standalone Access control


Metal Standalone Access Control Keypad

Model No.

Quantity/Carton

Gross Weight

Carton Size

K9EM

54pcs

33.5KG

55.5x39.9x40cm

K9MF

K9EM-W

54pcs

38.6KG

K9MF-W

Access Control Keypad

S4A User Manual K9_Metal Standalone Access Control Keypad
