> Metal Case, anti-vandal
> Waterproof conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: Hid card, EM card & Mifare card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
Brand:
S4AItem NO.:
S5-RXMetal RFID Reader Dual frequency access reader(E/H/Mifare)
Model No.: S5-RX 125KHz&13.56MHz

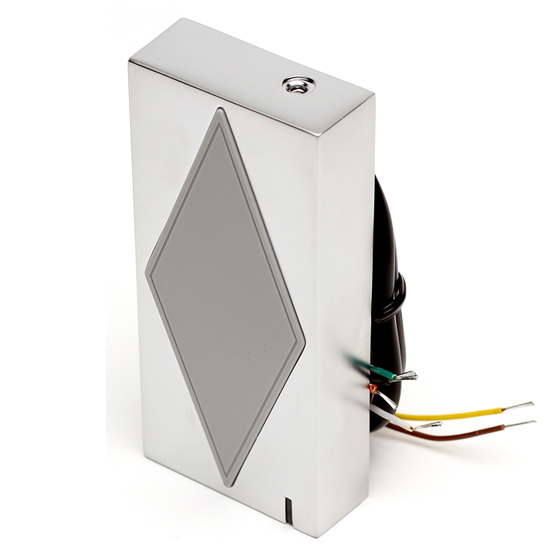

The S5-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in a harsh environment.
> Metal Case, anti-vandal
> Waterproof conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: Hid card, EM card & Mifare card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
Operating Voltage | 9~24V DC |
Frequency | 125KHz & 13.56MHz |
Card Type | 125KHz - EM & Hid Card |
13.56MHz - Mifare Card (ISO 14443A Compatible) | |
Reading Distance | 3~8 CM |
Output Format | Wiegand 26 bits |
(26~37 bits available upon request) | |
Operating Temperature | -40℃ ~ 60℃ (-40°F ~ 140°F) |
Standby Current | < 25mA |
Operating Humidity | 10%~98% RH |
Index of Protection | IP66 |

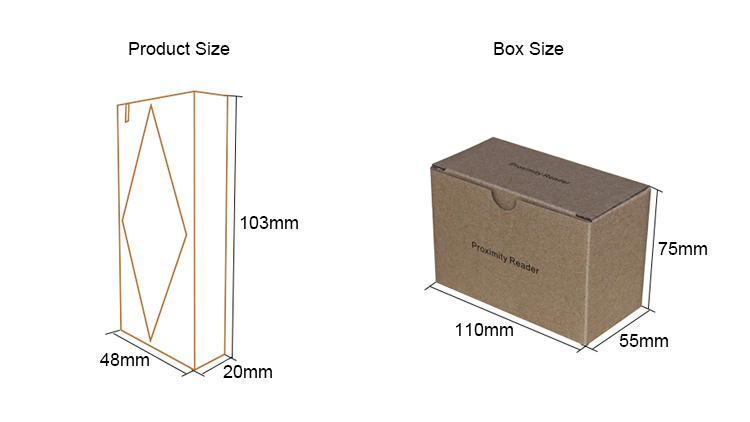

Dimensions | L103 x W48 x H19 (mm) |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
