Metal Wiegand Reader Access RFID Card reader(E/H/Mifare)

> Metal Case, anti-vandal

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control

  • Brand:

    S4A
  • Item NO.:

    S6-RX
  • Specifications

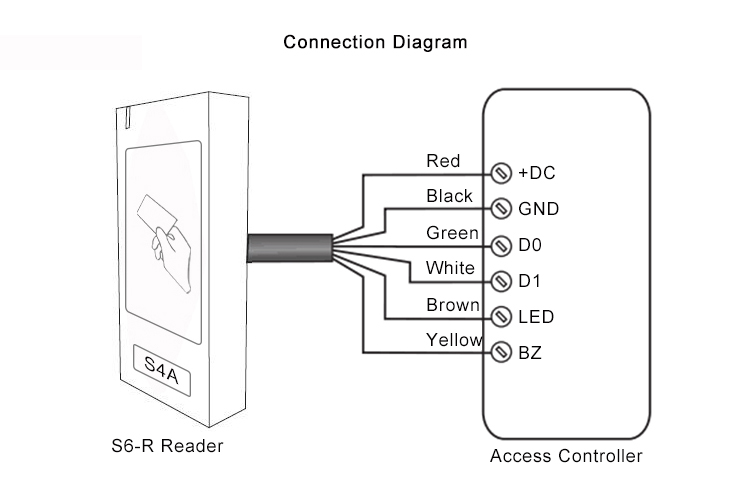

  • Wiring Diagram
  • Package

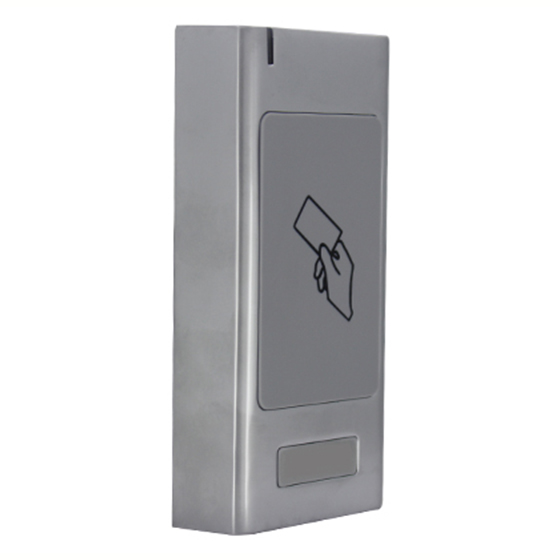

Metal Wiegand Reader Access RFID Card reader(E/H/Mifare)

Model No.: S6-RX 125KHz&13.56MHz


The S6-RX reader is an advanced 125KHz & 13.56MHz technology proximity reader.

Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in a harsh environment.

> Metal Case, anti-vandal

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control


Operating Voltage

9~24V DC

Frequency

125KHz & 13.56MHz

Card Type

125KHz - EM & Hid Card

13.56MHz - Mifare Card (ISO 14443A Compatible)

Reading Distance

3~8 CM

Output Format

Wiegand 26 bits

(26~37 bits available upon request)

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Standby Current

< 25mA

Operating Humidity

10%~98% RH

Index of Protection

IP66

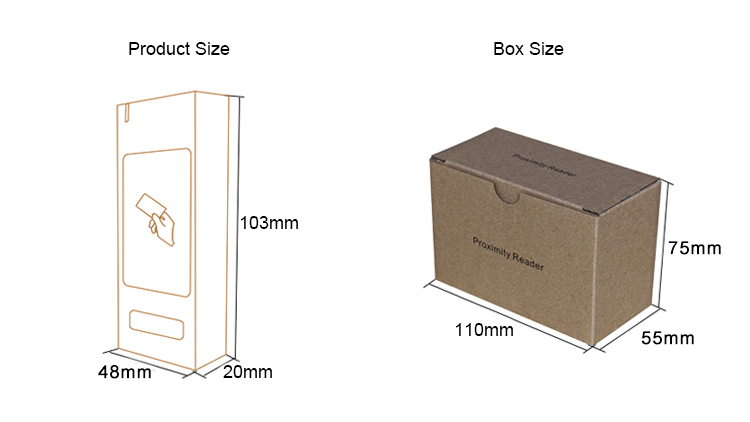

Dimensions

L103 x W48 x H19 (mm)


Metal Wiegand Reader

Metal Wiegand Reader

Metal Wiegand Reader
