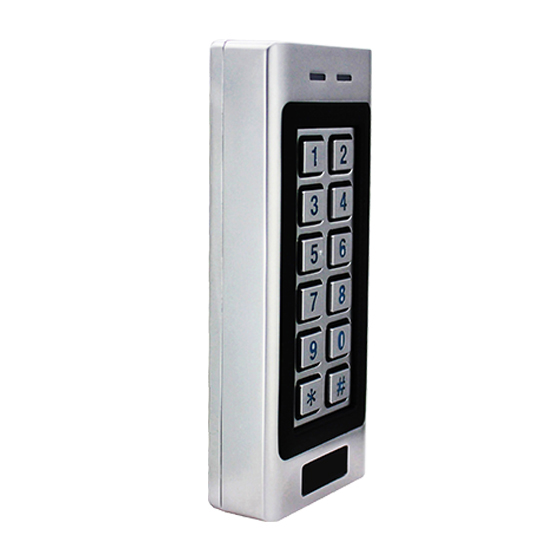

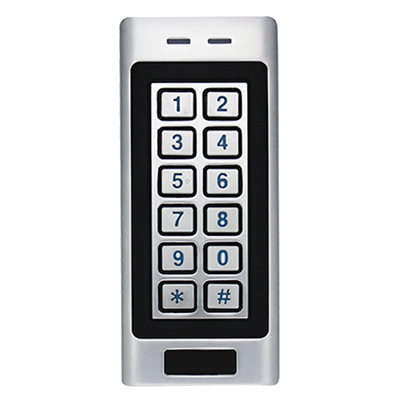

125KHz Wiegand 26/34 RFID Reader with 2 relays Connect with Access Control Board

> Waterproof, conforms to IP66

> Two relays operation

> 1,100 users (Card, PIN, Card + PIN)

> Card type: 125KHZ EM card

> PIN length: 4~6 digits

> Latch mode to hold door or gate open

> Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

  • Brand:

    S4A
  • Item NO.:

    SK4 Dual-relay
  • Specifications

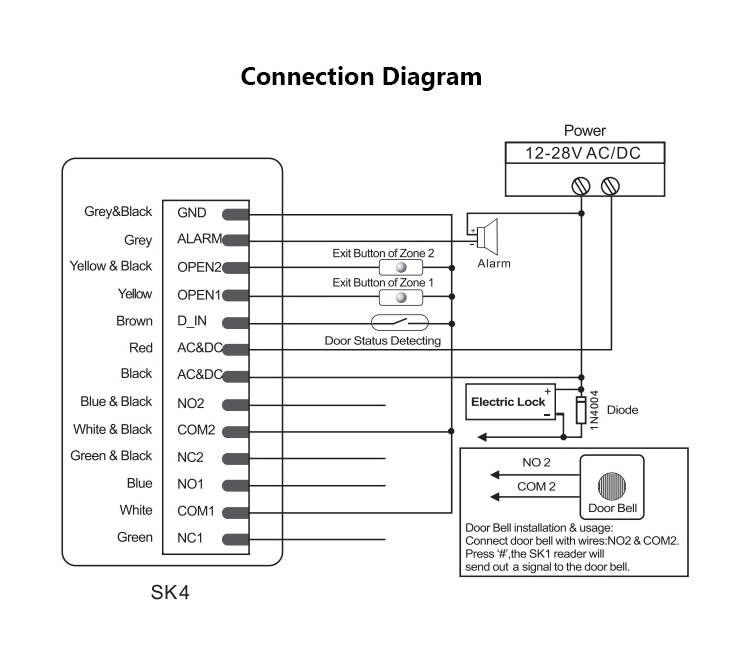

  • Wiring Diagram
  • Package

125KHz Wiegand 26/34 RFID Reader with 2 relays Connect with Access Control Board

Model No.: SK4 Dual-relay


> Waterproof conforms to IP66

> Two relays operation

> 1,100 users (Card, PIN, Card + PIN)

> Card type: 125KHZ EM card

> PIN length: 4~6 digits

> Latch mode to hold door or gate open

> Working Temperature: -40°C ~ 60°C (-40 °F ~ 140 °F)


User Capacity

1100 Card/PIN

Zone 1

1000

Zone 2

100

Operating Voltage

12~28V AC/DC

Idle Current

55mA

Active Current

80mA

Keypad

12 Key (2*6)

Proximity Card Reader

EM

Radio Technology

125KHz Industry Standard Proximity Card

Read Range

3 ~ 6 cm

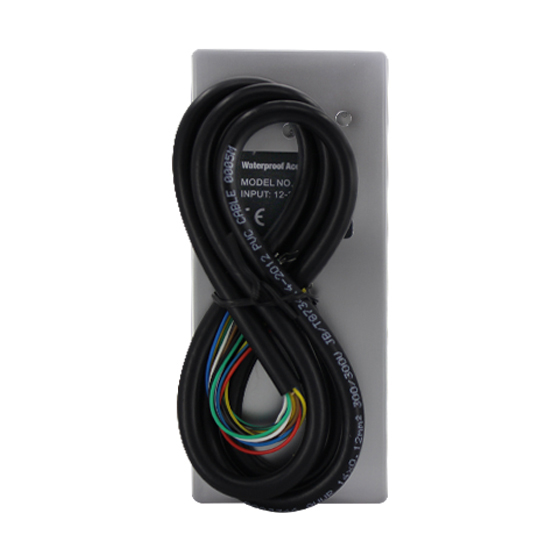

Wiring Connections

Electric lock, exit button,

DOT, external alarm, the doorbell

Relay

Two (NO, NC, COM)

Adjustable Relay Output Time

0 ~ 99 Seconds (5 seconds default)

Adjustable Alarm Output Time

1 ~ 3 minutes (1-minute default)

Lock Output Load

3 Amp Maximum

Alarm Output Load

3 Amp Maximum

Environment

Meets IP66

Operating Temperature

-40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

10% ~ 90% Non-Condensing

Physical

Zinc-Alloy Enclosure

Surface Finish

Powder Coat

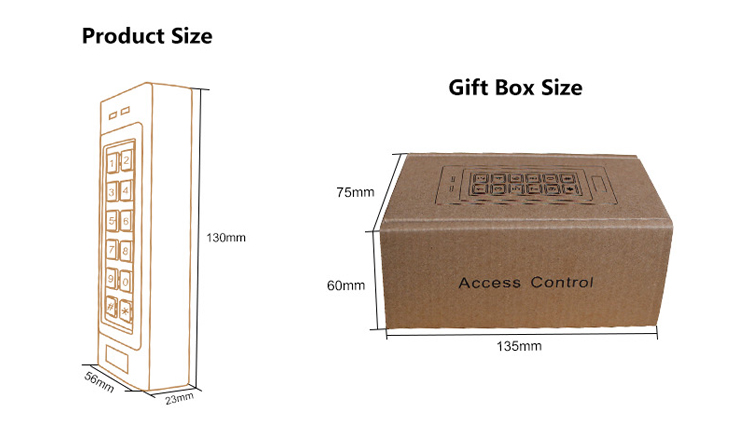

Dimensions

13.0L x 5.6W x 2.3H (cm)

Unit Weight

500g

Shipping Weight

650g

RFID Reader

RFID Reader

RFID Reader
