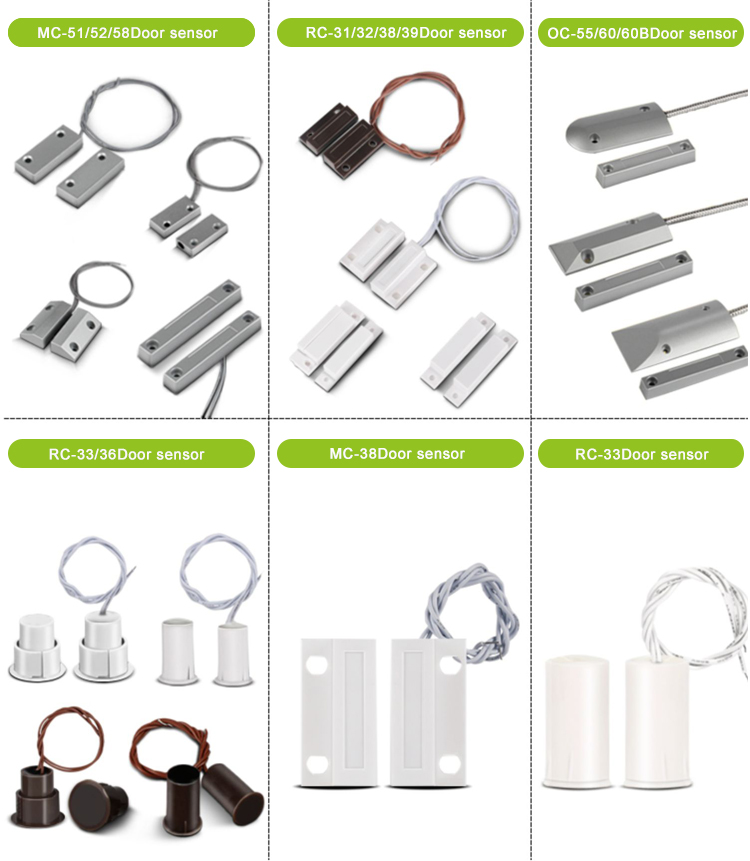

magnetic door alarm sensor

>Switch form: NC-Normally Close

>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A

>Shell material: ABS, white, brown

  • Brand:

    S4A
  • Item NO.:

    RC-33A
  • Specifications
  • Package
  • Download

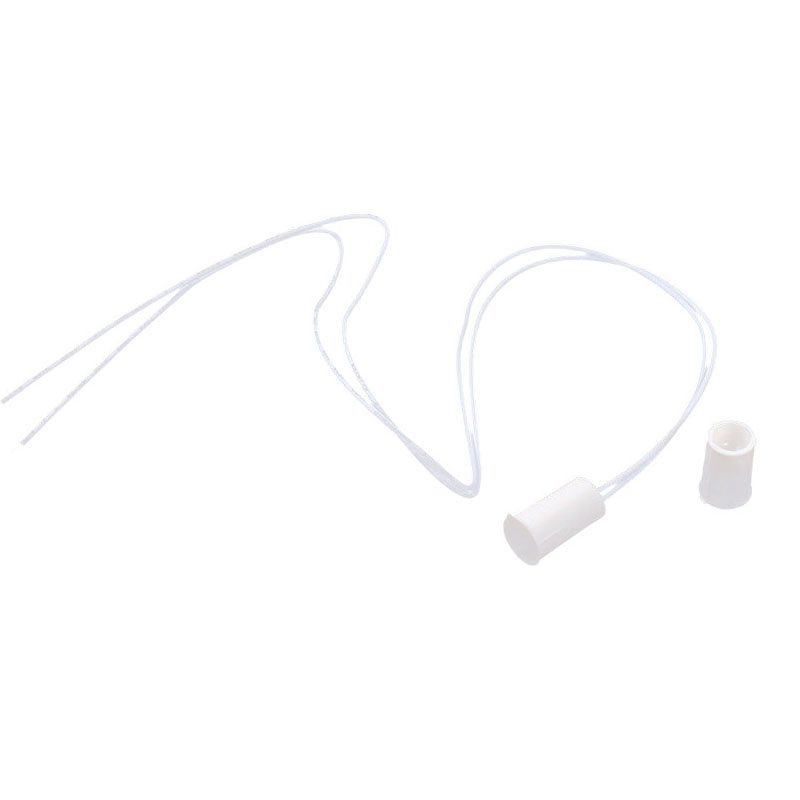

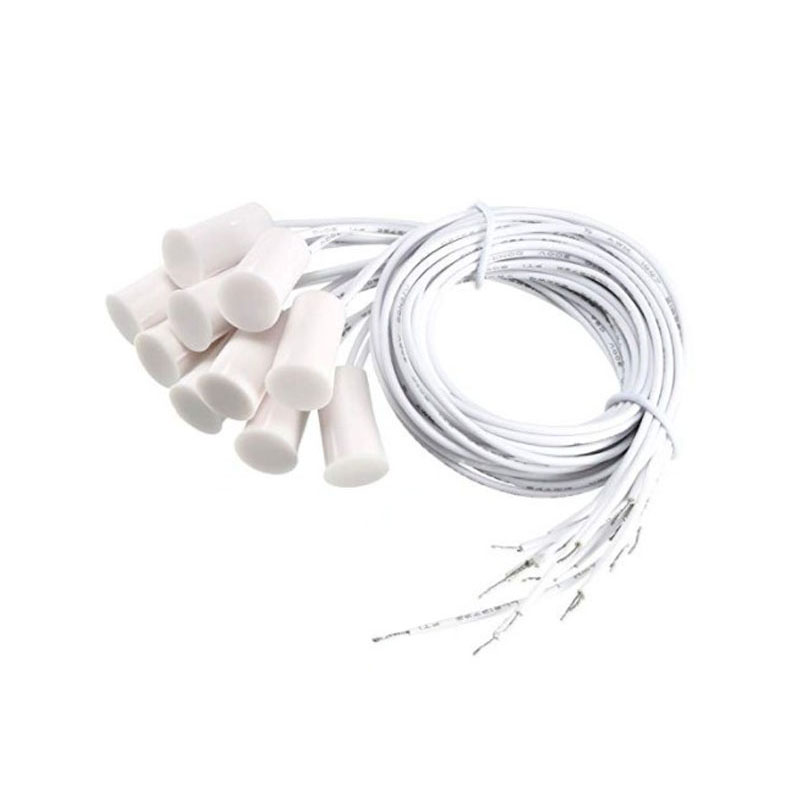

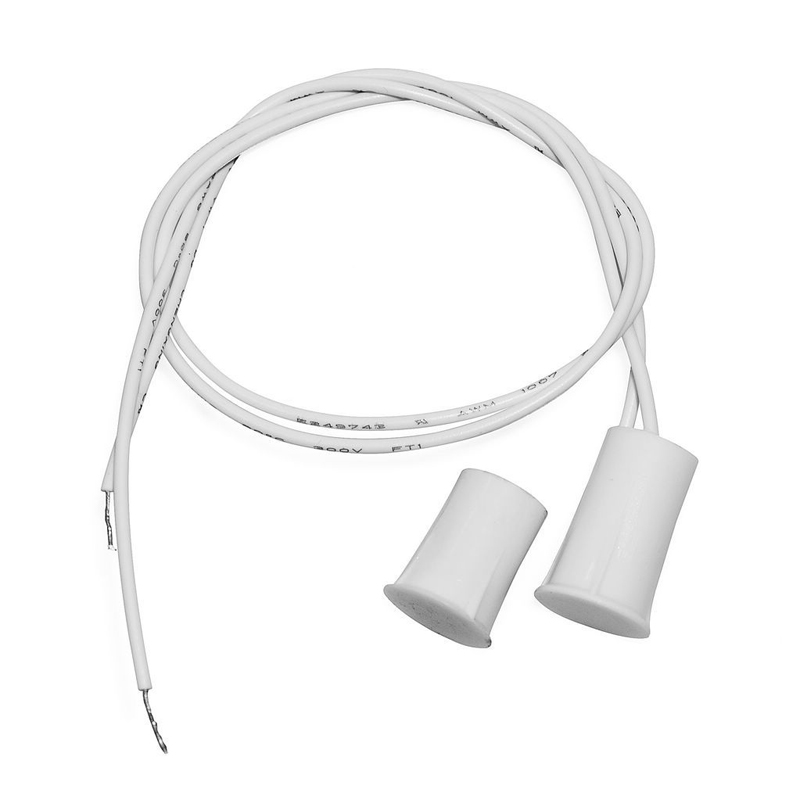

magnetic door alarm sensor

Model No.: RC-33A


magnetic door alarm sensor


what is Magnetic Reed Switch?

The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.


What are magnetic reed switches used for?

A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.

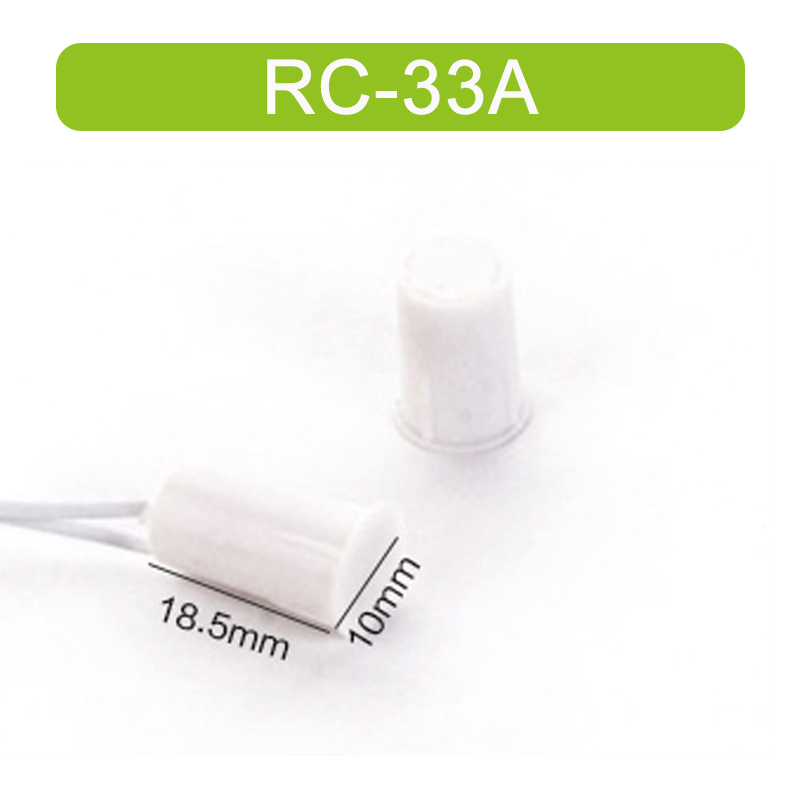

Size

10*18.5mm

Sensing distance

15-25mm

Switch form

NC-Normally Close

Electrical parameters

maximum power 10W, maximum voltage 100V, maximum current 0.5A

Shell material

ABS, white, brown

Lead

1007UL#24AWG 260mm

Scope of application

wooden door magnetic


magnetic door alarm sensor


magnetic door alarm sensor

S4A_Datesheet_magnetic door alarm sensor
