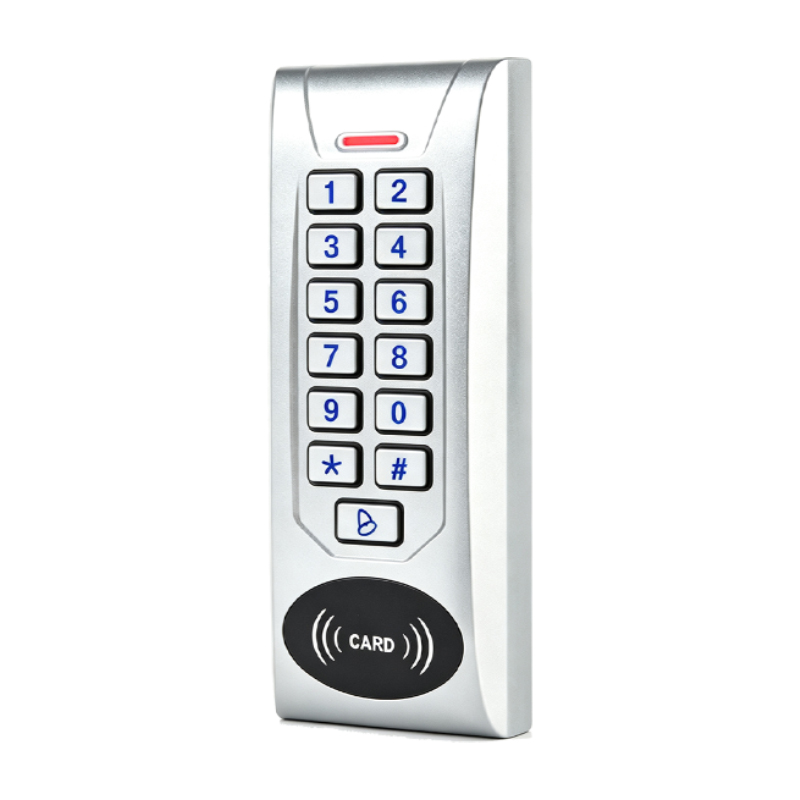

M7SM7S Dual-Frequency Waterproof Access Control Keypad
The M7S is a high-capacity standalone access control terminal featuring a durable, slim profile optimized for secure entryway management. Built with a premium aluminum alloy housing and a fully potted waterproof structure, this device delivers reliable, long-lasting performance in any environment. Offering versatile multi-credential support, it is an ideal choice for outdoor and high-traffic installations.
Product Parameter
Parameter Descr1ption
Model
M7S (Dual Frequency)
Working Voltage
AC/DC 12V - 24V
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Standard Keypad / Push Buttons
Material Zinc
Alloy Housing
Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
10,000 Users
Card Types
ID, IC, NFC (Dual Frequency)
Wiegand Interface
WG26 / WG34 Input & Output
External Connectivity
Supports external card reader connection
Reading Distance
1cm - 10cm
Dimensions
150mm * 58mm * 20mm
M7S Dual Frequency Waterproof Access Control Keypad
Premium Reliability for Your Security Needs
The M7S is a robust, high-performance access control keypad designed for both durability and versatility.
With its IP68-rated, fully potted sealing architecture, this unit provides complete waterproof resilience,
making it ideal for harsh outdoor environments. Constructed with a premium aluminum alloy housing,
the M7S offers a sleek finish alongside high-strength physical protection against vandalism.
Key Technical Features:
1:Dual-Frequency Flexibility: Supports 125KHz (ID), 13.56MHz (IC), and NFC access tracking.
2:Massive Capacity: Large-scale memory accommodating up to 10,000 card or PIN credentials.
3:Seamless Integration: Features built-in WG26/WG34 input/output communication for easy integration with third-party panels.
Installation Guidance:
For optimal performance, we recommend mounting the M7S on a flat, stable surface. Given its IP68 rating, ensure all cable
entry points are properly sealed during installation to maintain the integrity of the enclosure. The M7S supports both
standalone operation and integration as a Wiegand reader for centralized systems. For detailed wiring layouts or specific system
configurations, our technical support team is available to guide you through your deployment process.
