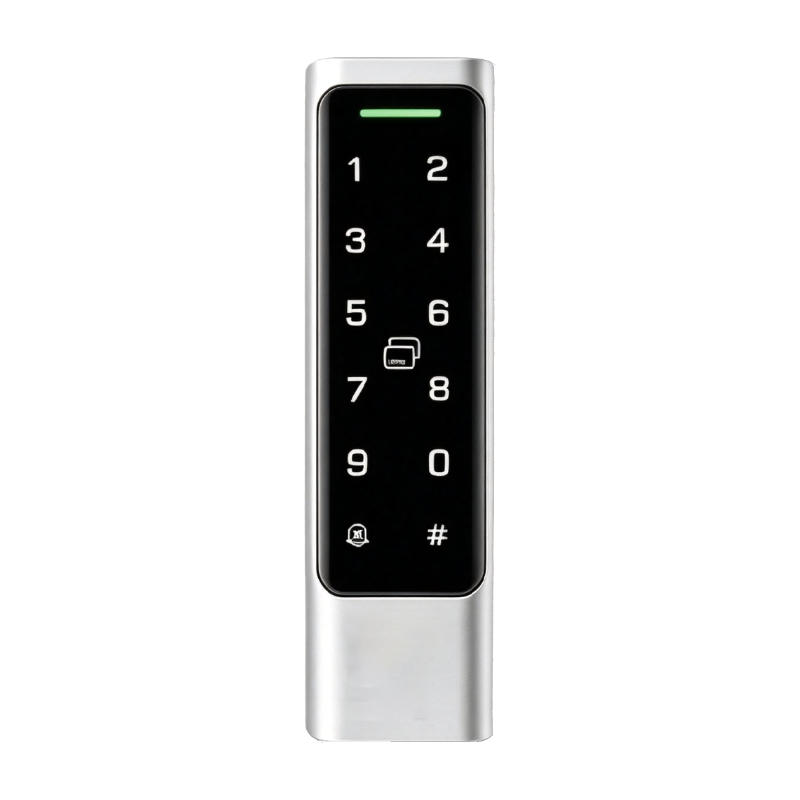

K20SK20S Slim Dual-Frequency Waterproof Access Control Keypad
The K20S is a high-performance standalone access control terminal featuring a sleek, narrow profile ideal for space-constrained installations. Built with a premium zinc alloy housing and a tempered glass panel, it balances sophisticated aesthetics with rugged durability. Its fully potted waterproof construction ensures outdoor reliability, while dual-frequency ID, IC, and NFC support offers maximum credential flexibility.
Product Parameter
Parameter Descr1ption
Model
K20S (Dual Frequency)
Working Voltage
AC/DC 12V - 24V
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Touch Keypad
Material Zinc
Alloy + Tempered Glass Panel
Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
10,000 Cards
Card Types
ID, IC, NFC (Dual Frequency)
Wiegand Interface
WG26 / WG34 Input & Output
External Connectivity
Supports external card reader connection
Reading Distance
1cm - 10cm

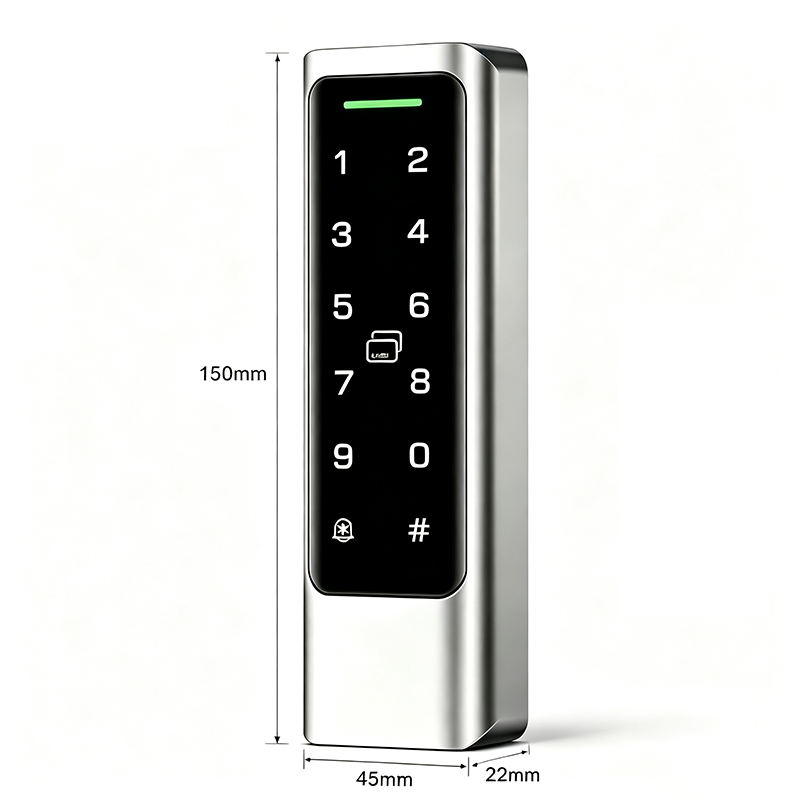

Dimensions
150mm * 45mm * 22mm
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
