Categories
NO/NC/COM/+12V/GND;
115Lx40W(mm)
Brand:
S4AItem NO.:

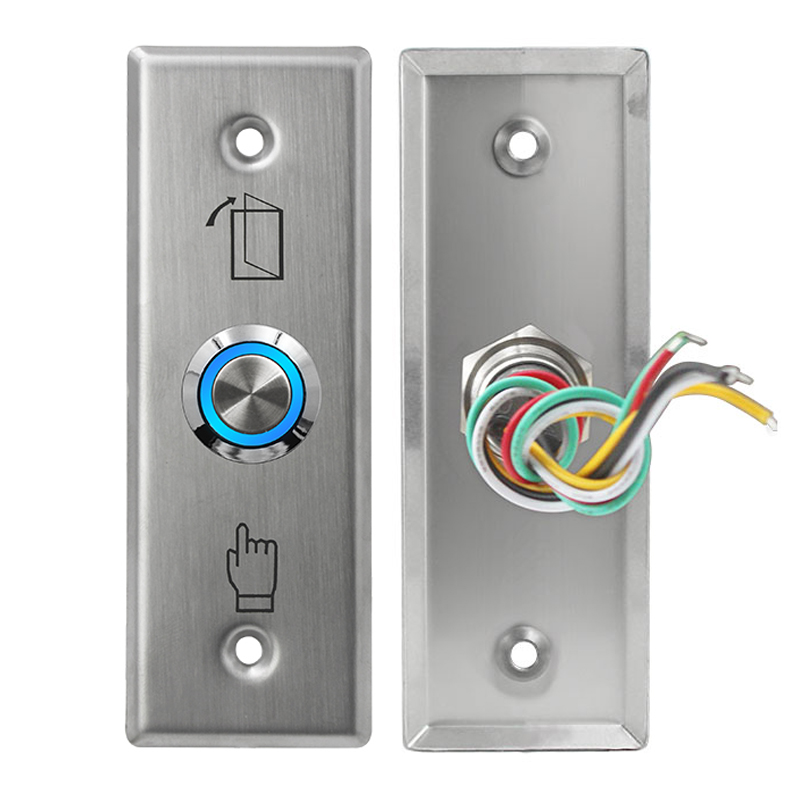

S40LIlluminated Exit Button For Security Access Control
Model:S40L
| Product Parameter | Parameter Description |
| S4A Model | S40L |
| Product Name | Stainless Steel Exit Button with LED |
| Dimensions | 115Lx40W(mm) |
| Panel | 0.9mm Thick 304 Stainless steel (Wire Drawing） |
| Power | 12VDC or 24VDC |
| Contact Rating | 3A/125-250VAC |
| Output Contact | NO/NC/COM/+12V/GND |
| Mechanical Life | 100,000 Tests |
| Suitalbe for Door | Hollow Door |
| Operating Temperature | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Installation Diameter | 19mm |
| Led Colour | Default Blue,Optional Green/Red |
| Button Colour | Silvery |
| Logo | S4A Customizable |
| Unit Weight | 0.073KG |
| Packing Quantity | 100 PCS/CTN |
| Packing Size(L*W*H) | 51*43*33 (cm) |
| Gross Weight | 8.5KG |
Dimension: 91x30x20mm
Dimension: 91x30x20mm
Dimension: 115x70x25mm
Dimension: 115x70x25mm
Dimension: 86x86x38mm
Dimension: 86x86x38mm
Dimension: 86x86mm
Dimension: 86x86mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
