TF4Fingerprint Touch-Screen Standalone Keypad controller with 10,000 users and DC 12-24V Wiegand 26 Output
Model No.:TF4

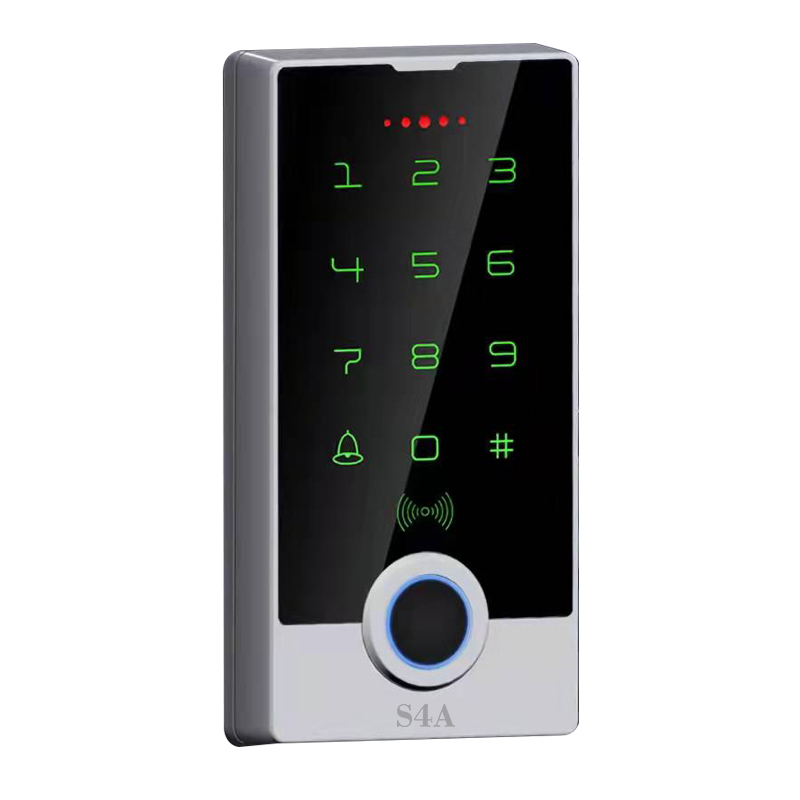

TF4 Metal & IP68 Waterproof Fingerprint Standalone Access Controller
This is a new generation of multi-function standalone access control.
It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc..
Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..
S4A Model
> TF4EM-W: Metal & IP68 Waterproof, Support Finger + ID Cards
> TF4MF-W: Metal & IP68 Waterproof, Support Finger + IC Cards
Features
> Read 125KHz EM / 13.56MHz Mifare (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The transmission format could be adjusted by user.
> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
Product Parameter | Parameter Description |
S4A Model | TF4 |
Product Name | Metal Fingerprint Access Control |
Card type | EM / MF |
User Capacity | 10,000 users |
Fingerprint Capacity | 1000 |
Keypad Characteristic | Metal backlight keypad |
Operating Voltage | DC 12-24V |
Standby Current | <=35mA |
Operating Current | <=100mA |
Operating Temperature | -40℃ ~ 60℃ |
Operating Humidity | 0%~95% |

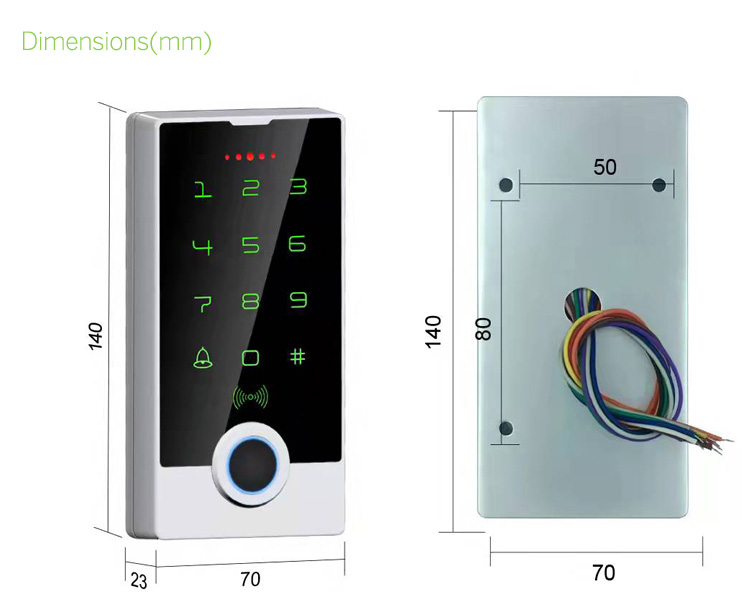

Dimensions | 140x70x23mm |
Access ways | Fingerprint, card, code, or multiple |
combination methods |
S4A Datesheet_Fingerprint Touch-Screen Standalone Keypad controller with 10,000 users and DC 12-24V Wiegand 26 Output
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
