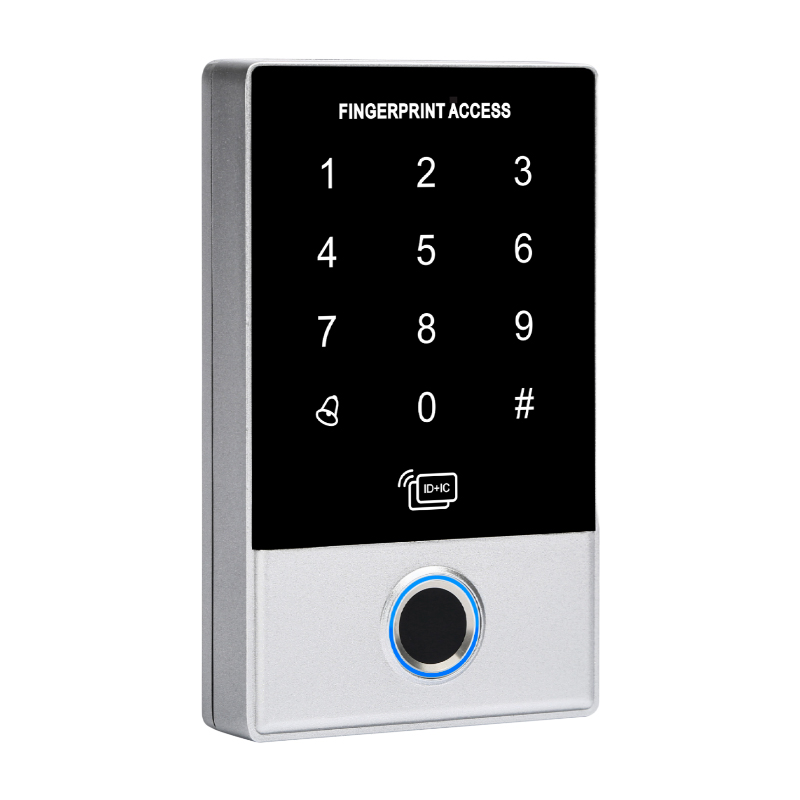

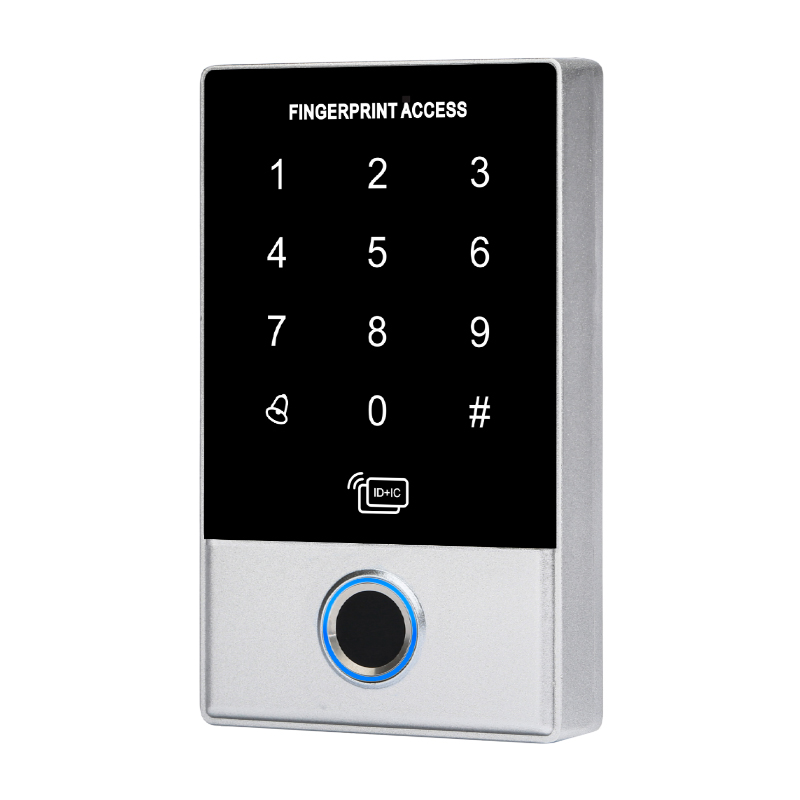

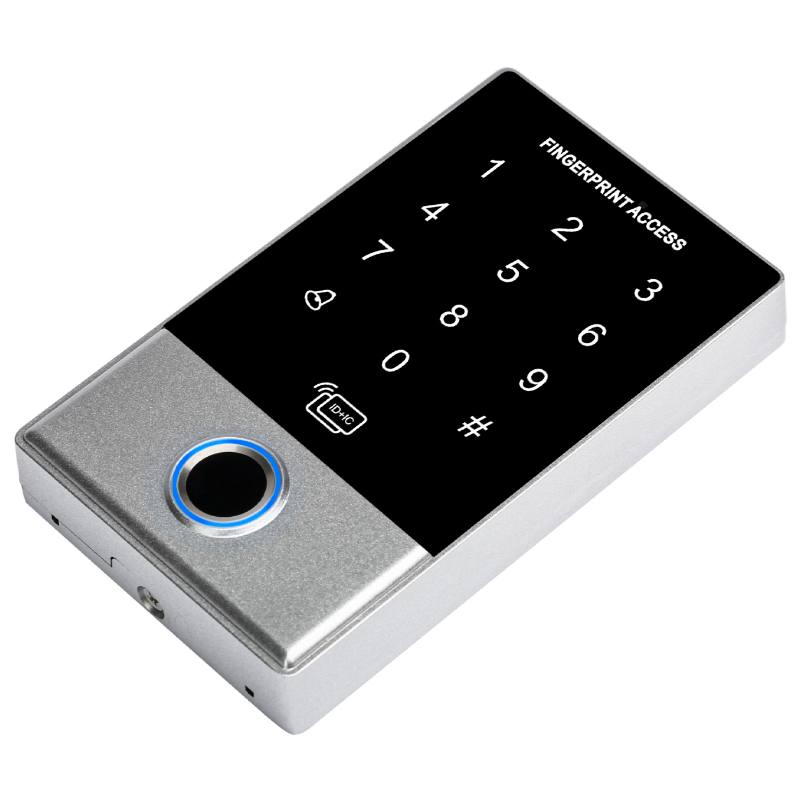

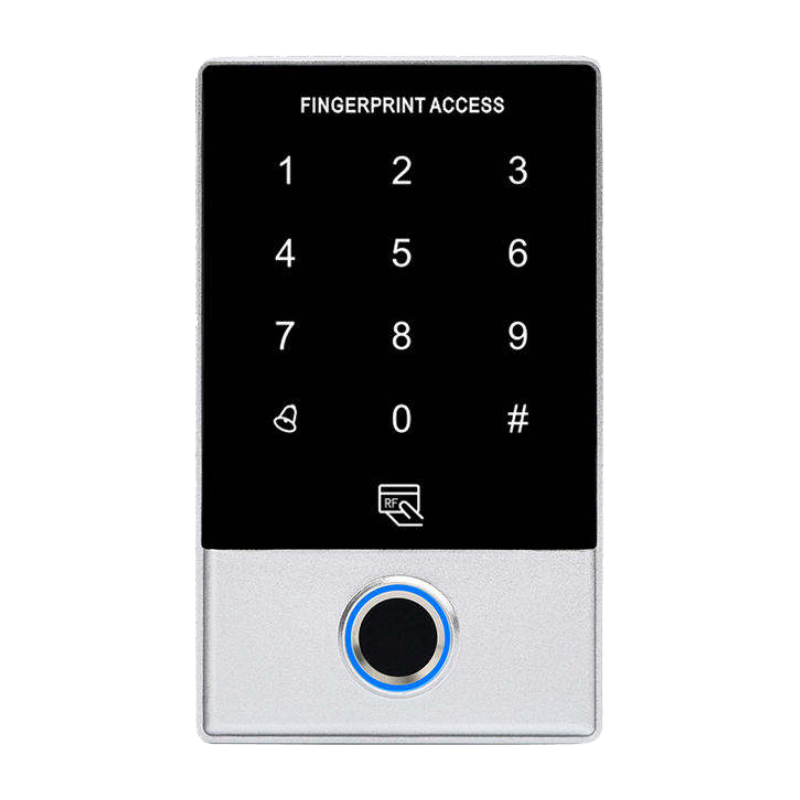

FG1SFG1S Dual-Frequency Waterproof Fingerprint Access Control Keypad
The FG1S is a premium standalone biometric access control system combining advanced fingerprint recognition with flexible card access. Crafted with a sleek aluminum alloy housing and a fully potted waterproof design, it delivers high-level security for both indoor and outdoor commercial applications. Supporting ID, IC, and NFC dual-frequency verification, the FG1S ensures fast, versatile, and secure access management.
Product Parameter
Parameter Descr1ption
Model
FG1S (Dual Frequency)
Working Voltage
AC/DC 12V - 24V
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Touch Keypad
Material Zinc
Alloy Housing
Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
1,000 Cards + 100 Fingerprints
Card Types
ID, IC, NFC (Dual Frequency)

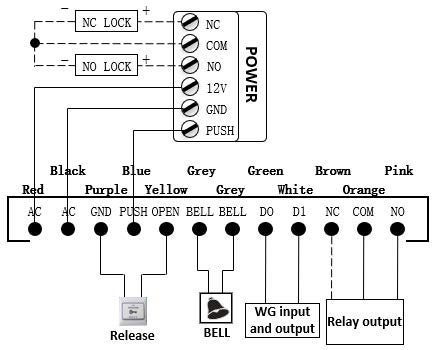

Wiegand Interface
WG26 / WG34 Input & Output
Reading Distance
1cm - 10cm
Dimensions
124mm * 74mm * 20mm
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
