> With LED (Red only)
> Holding force: 280KGx2(600lbsx2)
> Voltage: DC12V and DC24V (adjustable)
> Current Draw: 12V/500mAx2 24V/240mAx2
> Lock Size: 500Lx48.5Wx25H(mm)
> Armature plate: 180x38x11mm
Brand:
S4AItem NO.:

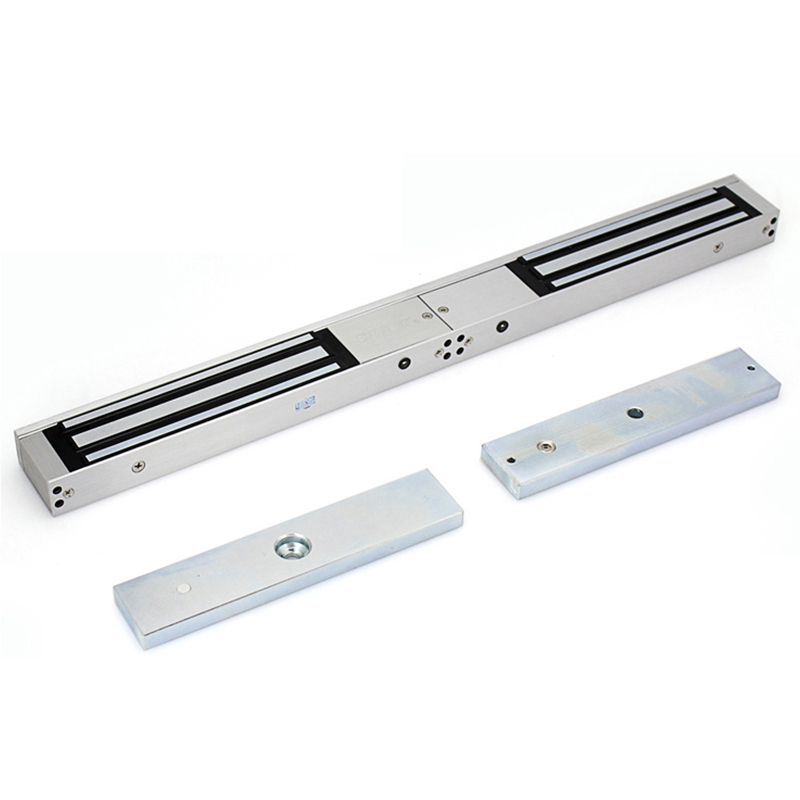

EL-600DSDouble Door 280KG Magnetic Lock
Model No.: EL-600DS
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-600D | Without indicator lights |

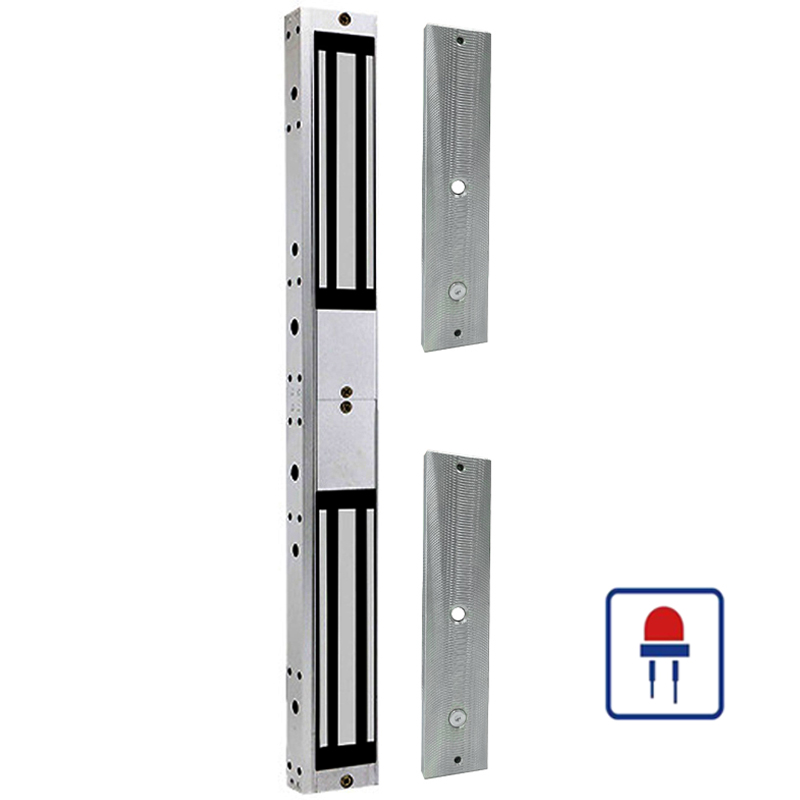

EL-600DS | With LED (Red only) |
EL-600DSD | With LED, door senor |
EL-600DST | LED, door sensor, Time delay |
Lock Size | 500Lx48.5Wx25H(mm) |
Armature Plate | 180Lx38Wx11H(mm) |
Holding Force | 280kgx2 (350Lbsx2) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mAx2 24V/250mAx2 |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4kg |
Standard Packing | 4pcs |

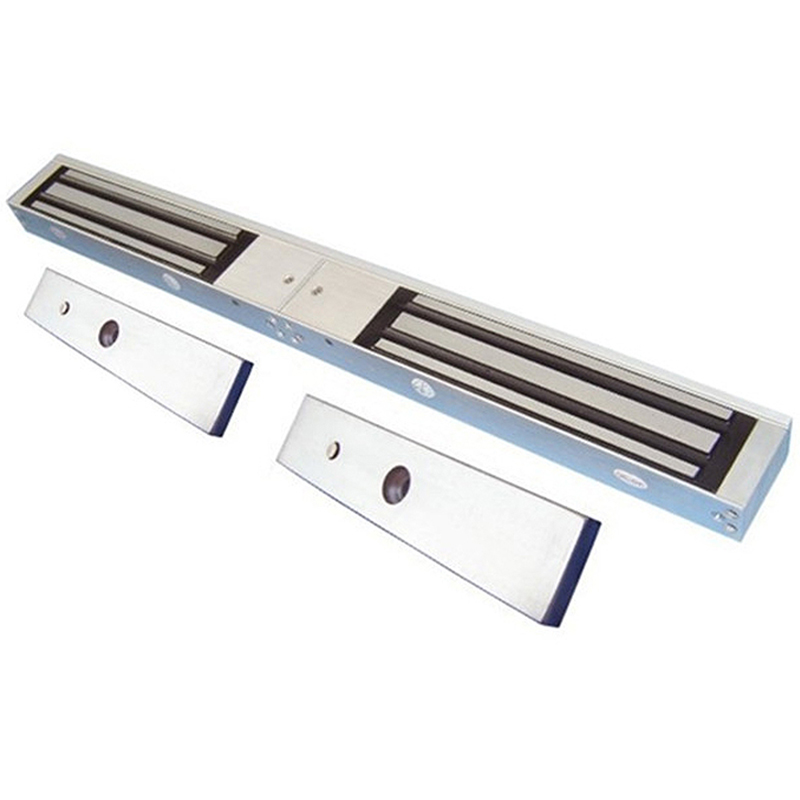

Double Door Electromagnetic Door Lock | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-600D | 500x48.5x25mm | 10pcs | 35.7KG | 52x31x15cm |
EL-600DS | 10pcs | 35.7KG | ||
EL-600DSD | 10pcs | 35.7KG | ||
EL-600DST | 10pcs | 35.7KG | ||
S4A Instruction_EL-600DS_Double Door Electromagnetic Door Lock
> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> With LED (Red only)> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> Built in LED, door sensor and buzzer> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and time delay> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
100% Cooper Material and built-in Standalone access control function> No Need to order standalone control> Connect it with our reader-ID-WG26. then it works> User Capacity: 1364> Voltage: 7-18V
> EL-W600 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: DC12V> Lock Size: 225Lx45Wx25H(mm)
