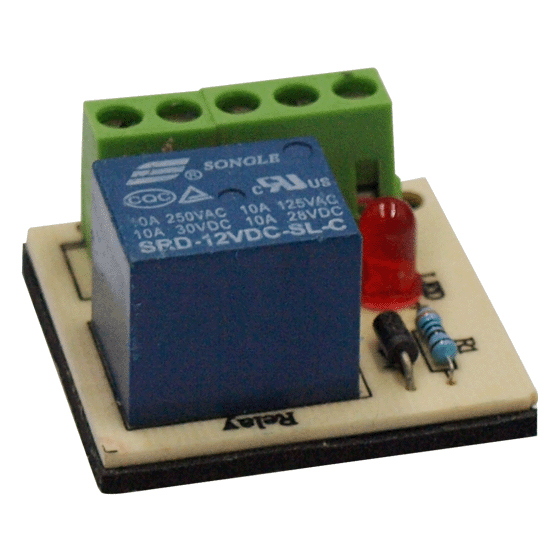

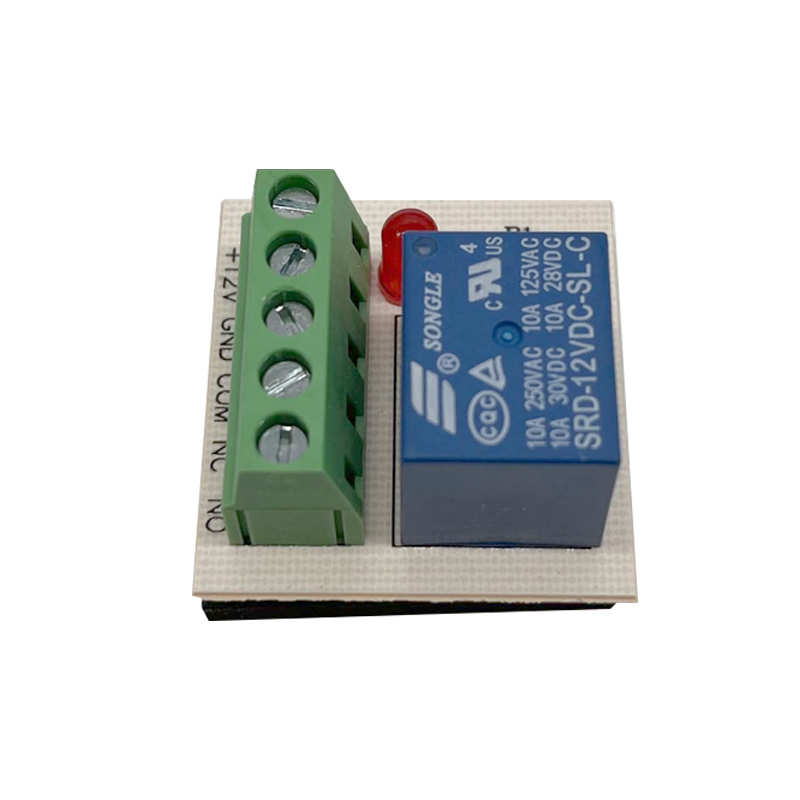

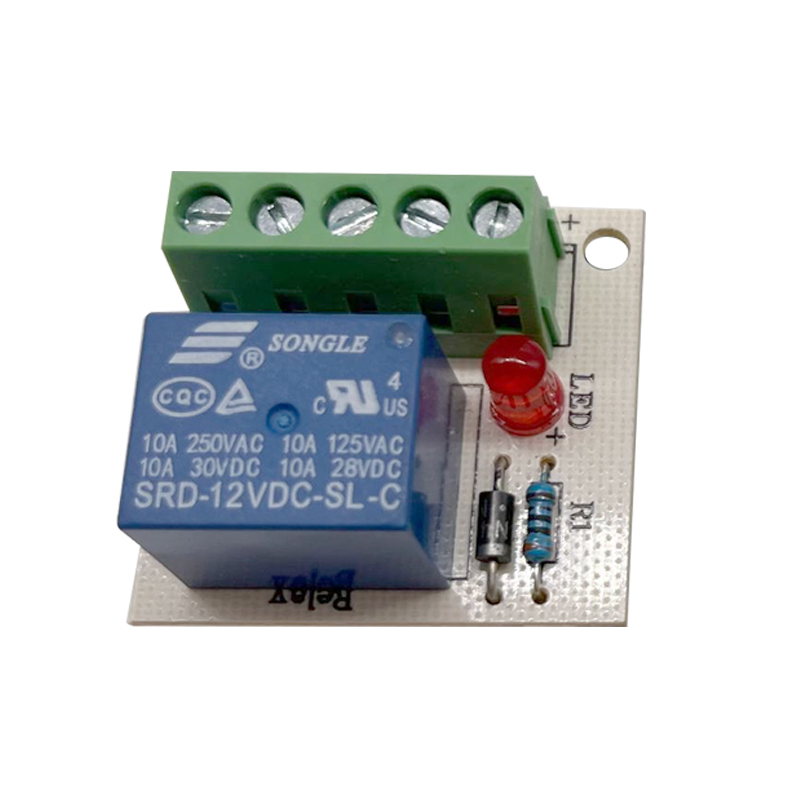

Door Control Relays Modules

> Dimensions: 36x34x20mm

> Material: High quality elements with superb design

> Suitable for Door: Externally-connected electronic lock of access controller

> Output Capability: Dry contact output

> Max. overload: 10A/250VAC 10A/30VDC


  • Brand:

    S4A

  • Item NO.:

    S4A-502
Inquire Now
  • Specifications

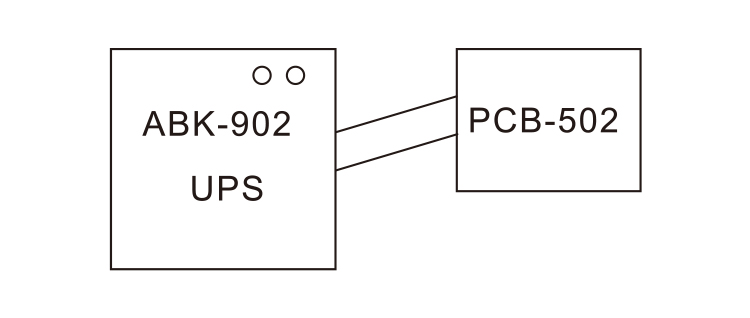

  • Wiring Diagram
  • Package
  • Download

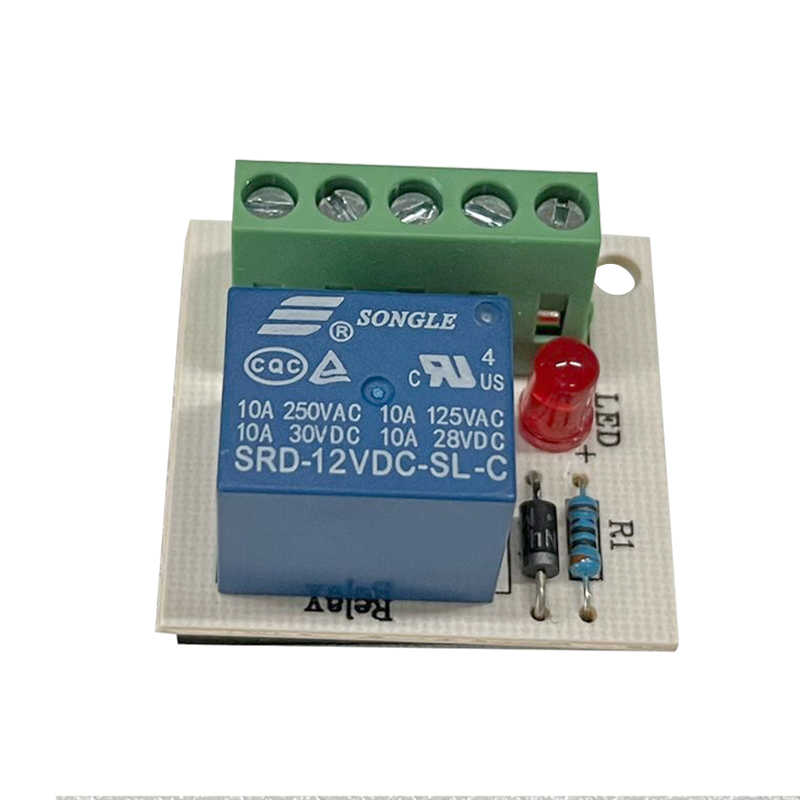

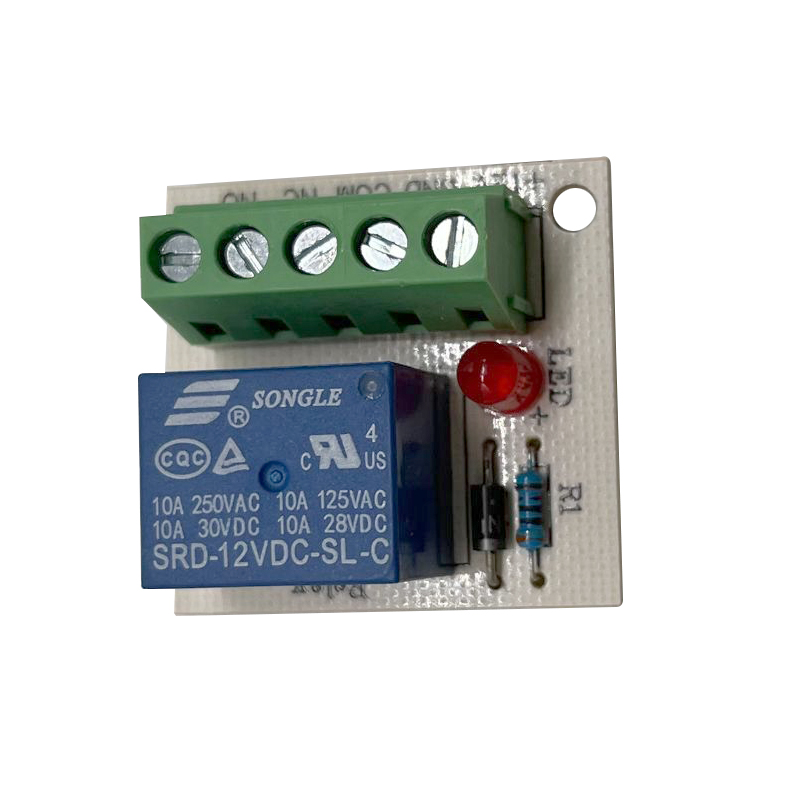

Door Control Relays Modules

Model No.: S4A-502


What is Relay Module?

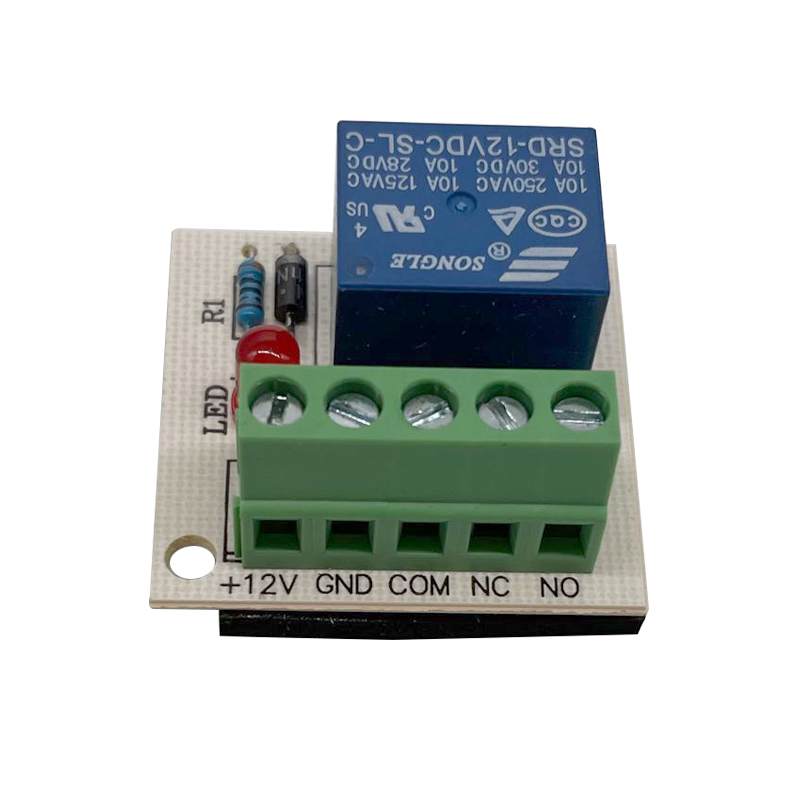

The Relay Module offers 3 contacts: NO, NC, COM to make both of the electric lock and power supply connection easier and convenient.


Advantage

Interlocking relay module is the ideal choice for the purpose of interlocking door control project, which is easy to install, professional and capable of standing wear.

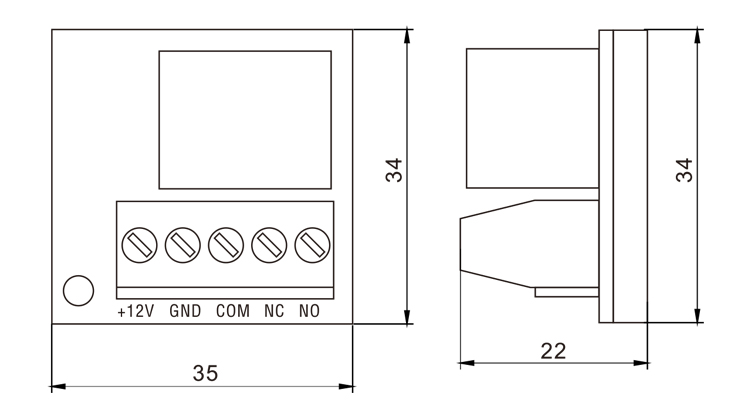

Dimensions

36Lx34Wx20H(mm)

Material

High quality elements with superb design

Suitable for Door

Externally-connected electronic lock of access controller

Output Capability

Dry contact output

Operating temp

-20℃～70℃

Max.  overload

10A/250VAC     10A/30VDC

Weight

0.05kg


Relay Module

Door Control Relays Modules

Model No.

Quantity/Carton

Gross Weight

Carton Size

S4A-502

100pcs

5KG

54.3x13.5x19.3cm

Relay Module

S4A User Manual S4A-502_Door Control Relays Modules

Download
Related Tags : Relay Module Access Control Relay Module Extended Relay Module
