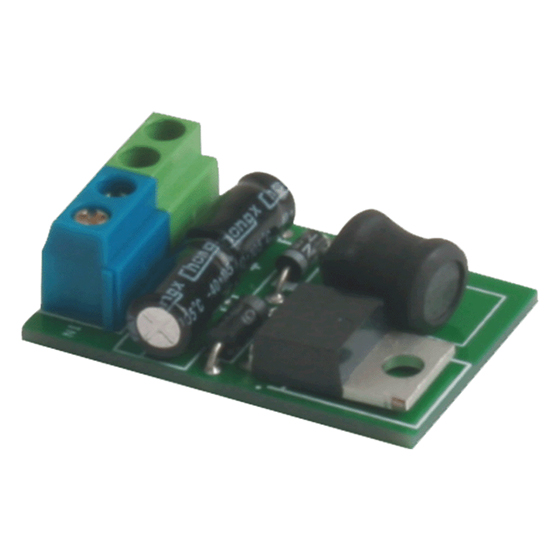

DC12-28VDC to DC12V Voltage Switch Module for Magnetic Locks

> Dimensions: 40x27x12mm

> Input: 12-28VDC (Blue)

> Output: 12VDC/1A (Green)


  • Brand:

    S4A

  • Item NO.:

    S4A-504
Inquire Now
  • Specifications

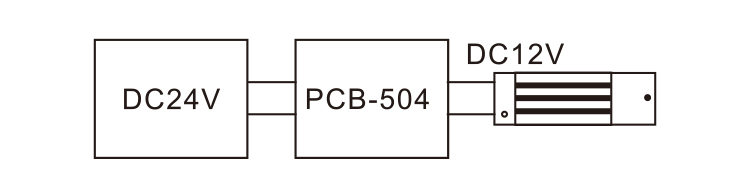

  • Wiring Diagram
  • Package
  • Download

DC12-28VDC to DC12V Voltage Switch Module for Magnetic Locks

Model No.: S4A-504


What is Voltage Switch Module?

The voltage switch module can be input 12-28VDC and output is 12V .this is the most common voltage for the electric locks and make the voltage conversion easier.

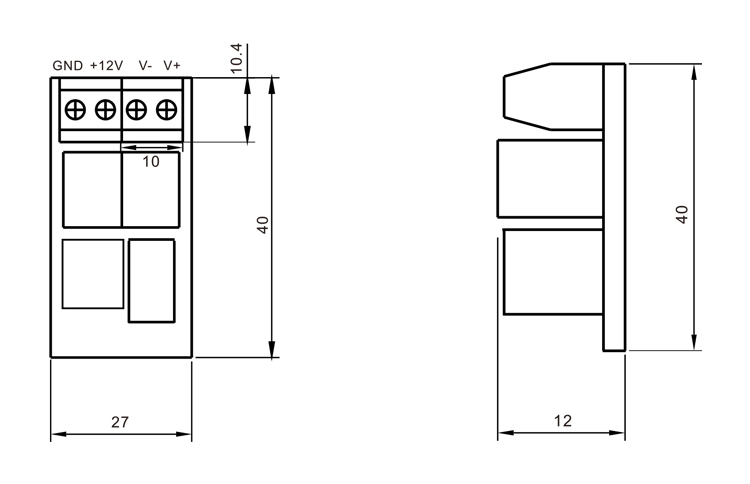

Dimensions

40Lx27Wx12H(mm)

Input

12-28VDC (Blue)

Output

12VDC / 1A (Green)

Operating temp

-20℃～70℃

Weight

0.05kg


Voltage Switch Module

DC12-28VDC to DC12V Voltage Switch Module for Magnetic Locks

Model No.

Quantity/Carton

Gross Weight

Carton Size

S4A-504

100pcs

5KG

54.3x13.5x19.3cm

Voltage Switch Module

S4A User Manual S4A-504_DC12-28VDC to DC12V Voltage Switch Module for Magnetic Locks

Download
