> Voltage: AC/DC 12-36V
> Relay output: N.O.-point output(relay)
> Maximum switching voltage: 48V AC/DC
> Maximum switching current: 0.5A AC/1.0A DC
> The largest power switch: 55VA/24W
Brand:
S4AItem NO.:

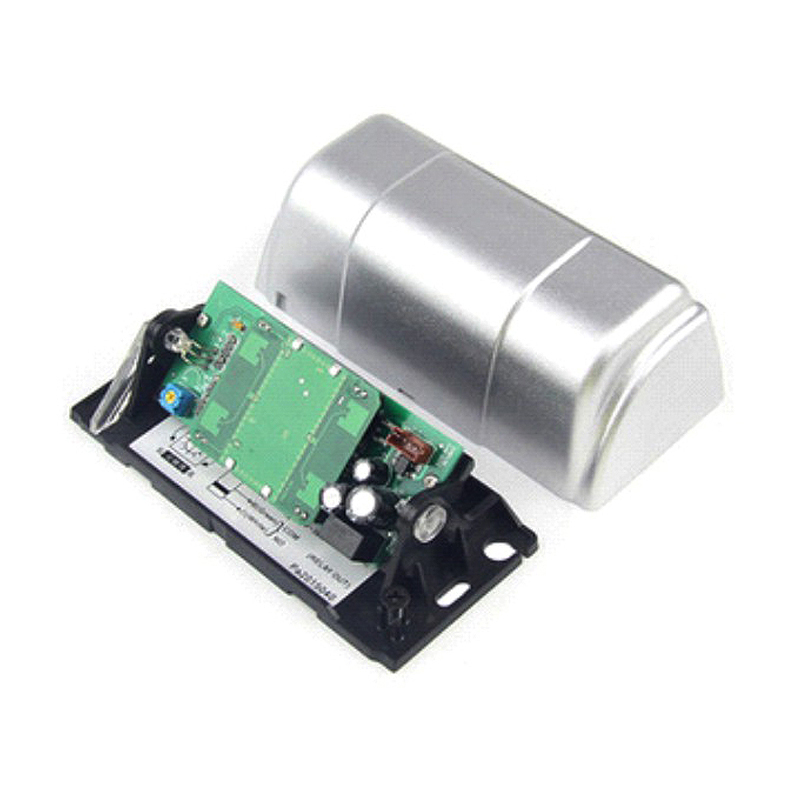

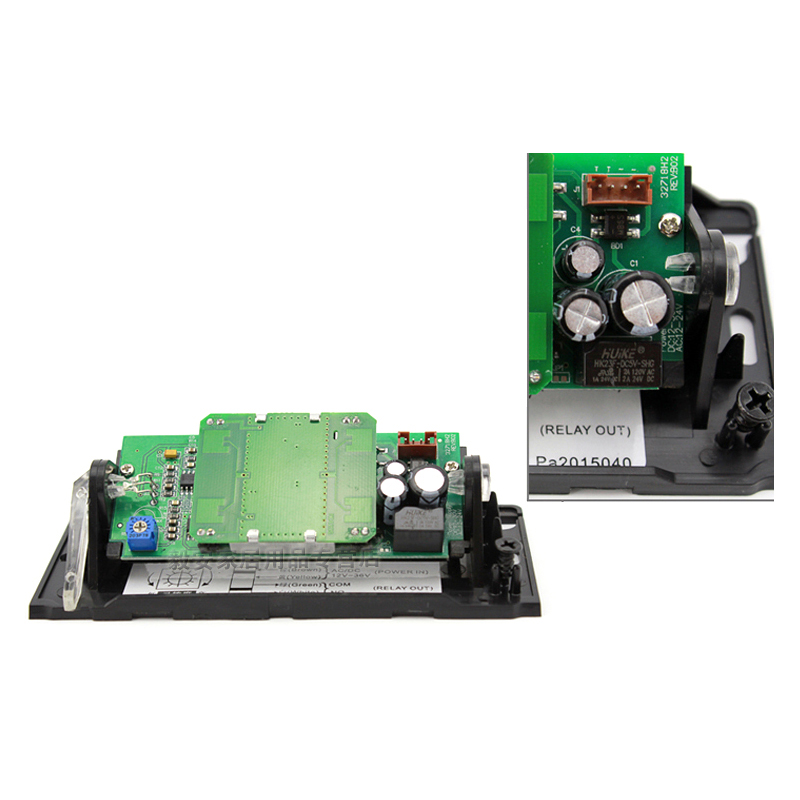

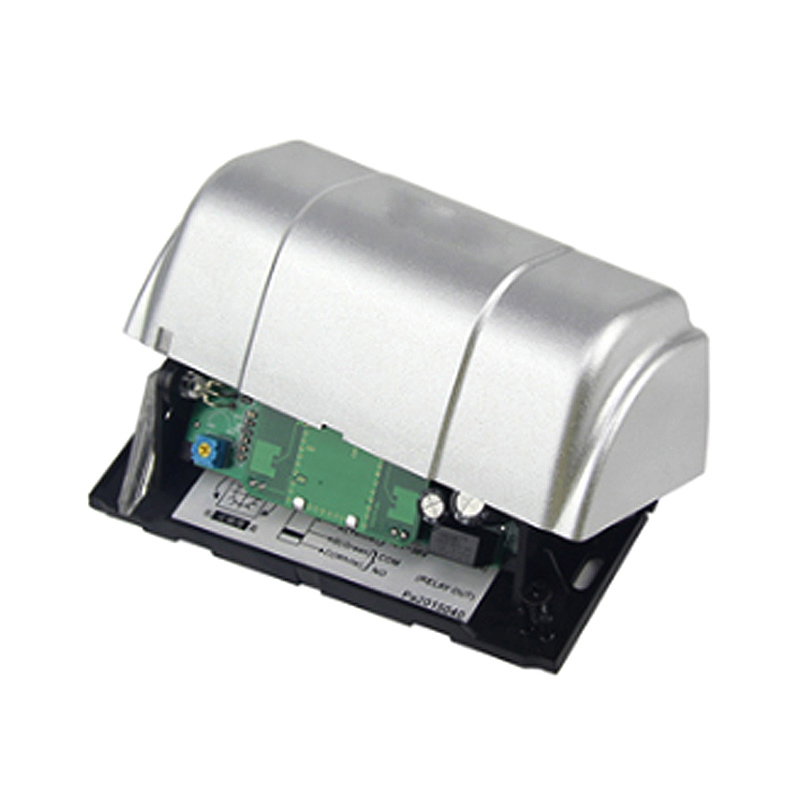

M-204Microwave motion sensor automatic door infrared sensor
Model No.: M-204
What is a Microwave Motion Sensor?
A microwave motion sensor uses electromagnetic radiation. It emits waves that are then reflected back to the receiver. The receiver analyzes the waves that are bounced back. If there is an object moving in the room,
these waves are going to be altered. The microwave detector is able to identify changes from moment to moment.
Ideally, the receiver should be receiving the same waves back again and again.
Because of the way that microwave motion sensors work, they can be either more sensitive or less sensitive.
They can identify every minute changes (a totally empty house) or be calibrated to require larger-scale movement (to avoid false positives).
Power supply | AC/DC 12-36V |
Current consumption | Static 45MA, dynamic 105MA(When DC 12V2 power supply) |
Environmental temperature | 40 |
Environmental humidity | 0-90%, without condensation |
Radio waves | X_Band 10.525GHZ |
Output | ≤20dbm |
Relay output | N.O.-point output(relay) |
Maximum switching voltage | 48V AC/DC |
Maximum switching current | 0.5A AC/1.0A DC |
Minimum switching current | 1MA |
The largest power switch | 55VA/24W |
Weight | 220g |
Protection level | IP54 |
Size | 131x61x46mm |
Microwave Motion Sensor Automatic Door Infrared Sensor | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
M-204 | 50 PC | 13.95 KG | 24x51x46 CM |
> Voltage: AC/DC12V~24V> Detection mode: Movement> Dimensions: 115x73mm
> Power supply: AC/DC 12V~30V> Maximum sending and receiving distance: 10M> Number of beams: Single beam or double beam optional> Dimensions (main controller): 105.5x53.4x28.5mm
>Static Current: 30mA (DC12V)>Action Current: 110mA (DC12V)>Power Supply: AC/DC 12~24V (-/+10%)
High-Frequency Precision: Utilizes the 24.125GHz microwave band to ensure rapid and accurate detection, even in high-traffic environments. Flexible Installation: Supports a mounting height of up to 4 meters with an adjustable induction angle making it versatile for everything from retail shops to industrial warehouses. Universal Compatibility: Features an AC/DC 12–24V power input and a standard NO relay output, allowing it to integrate seamlessly with any automatic door controller
>Power Supply AC/DC 12~24V (-/+10%)>Static Current 30mA (DC12V)>Action Current 110mA (DC12V)
> PCD series is available for OEM and ODM. KR series is not allowed > Delivery terms: EXW factory > This is RFID card reader only, need to work with ACB series Control board > Delivery time: If under 500pcs/model, within 2-3working days once confirmed
>SPDT ( NO/NC/COM ), Round Key_x000d_ Red LED indicator only>Input: DC12V>Material: Material>Contact Rating: 3A/125-250VAC
Available for EM or Mifare
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
