>Static Current: 30mA (DC12V)
>Action Current: 110mA (DC12V)
>Power Supply: AC/DC 12~24V (-/+10%)
Brand:
S4AItem NO.:

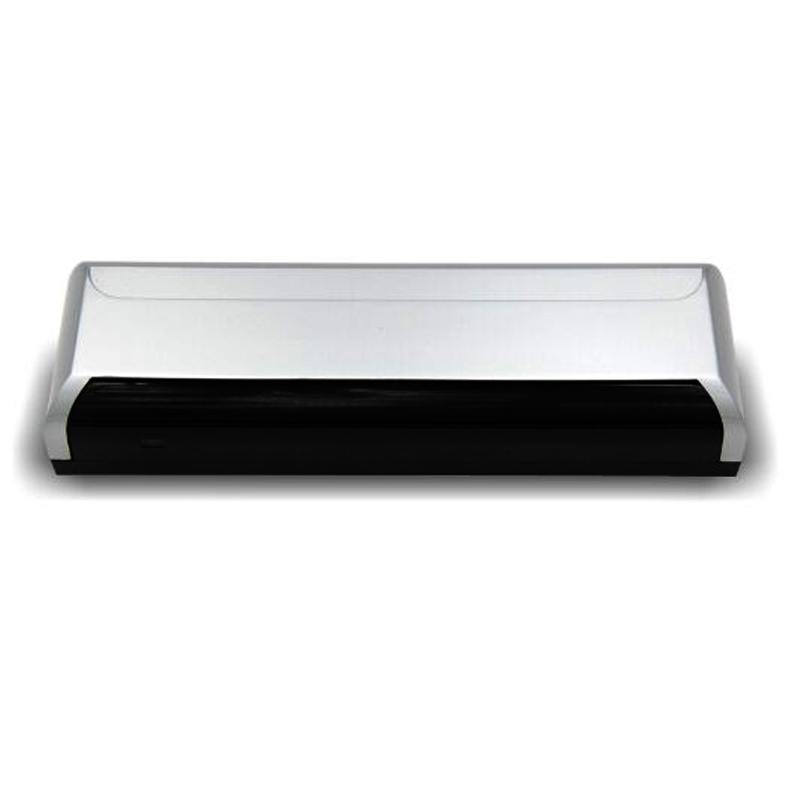

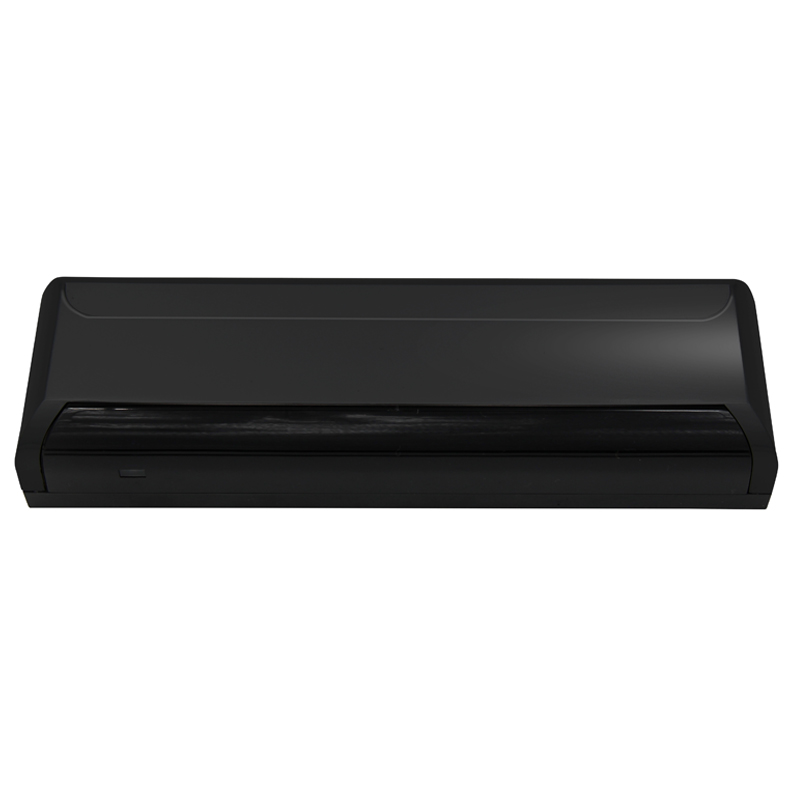

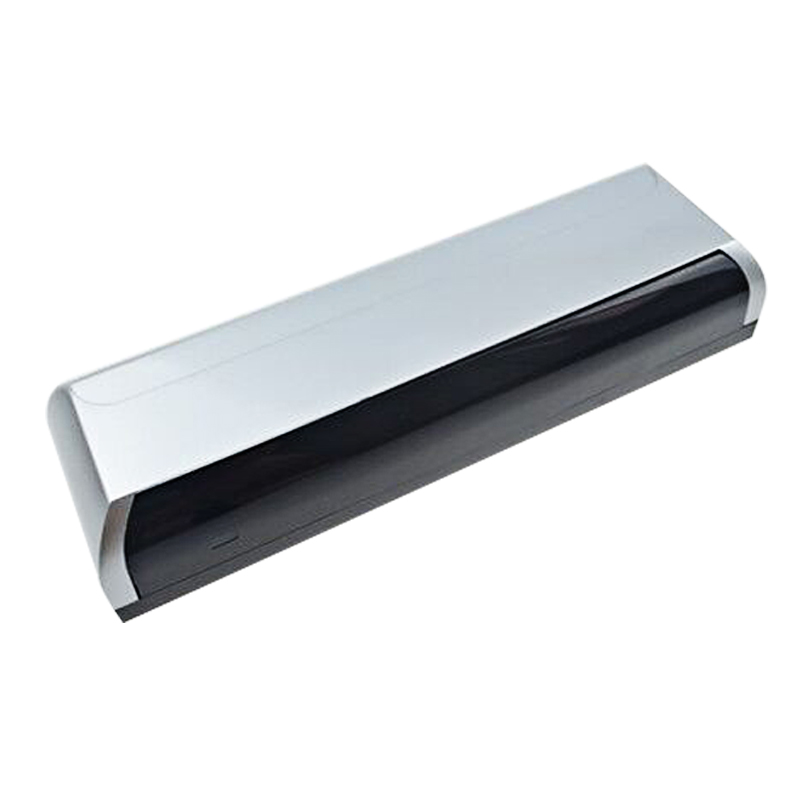

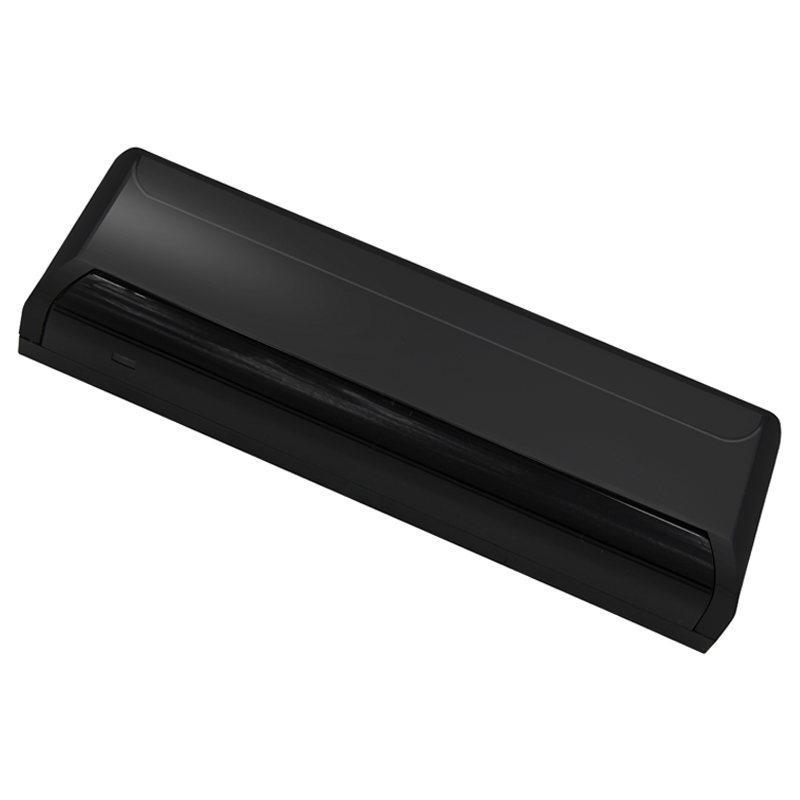

M-254Infrared IR Motion Presence Safety Sensor For Automatic Door Opener
Model No.: M-254
>Active infrared activation and infrared safety combination sensor for automatic sliding doors.
IR activation & IR safety sensor
>A combination sensor of door opening and safety protection,
using active infrared technology for both motion detect and presence detect.
>Accurate and adjustable probing range of movement detection is perfect choice
for limited space automated door activation.
>Active IR presence detecting with self-learning ability (background analysis)
at threshold area provides reliable safety protection, avoids the pedestrian clamping accidents by closing door wings.
Power Supply | AC/DC 12~24V (-/+10%) |
Relay Signal Output | 1 for motion detect, 1 for presence detect |
Max. Mounting Height | 3000mm |
Static Current | 30mA (DC12V) |
Action Current | 110mA (DC12V) |
Ray Type | Reflect Infrared |
Ray Source | 940nm Infrared |
Activation Ray | 1 line, 4 emissions, 16 light spots |
Presence Detect Ray | 3 line, 12 emissions, 48 light spots |
Self-learning time | 10s |
Working Temperature | -40°C ~ 60°C |
LED indication | Standby(GREEN), Activation(YELLOW), Presence detect(RED) |
Probing Range | 1600mm (width) x 800mm (depth) |
Signal holding time | Presence detect 500ms, motion detect 2s |
Response time | ≤100m s |
Dimension | 229mm(width) × 67mm(height) × 41mm(depth) |
S4A Datesheet_Infrared IR Motion Presence Safety Sensor For Automatic Door Opener
