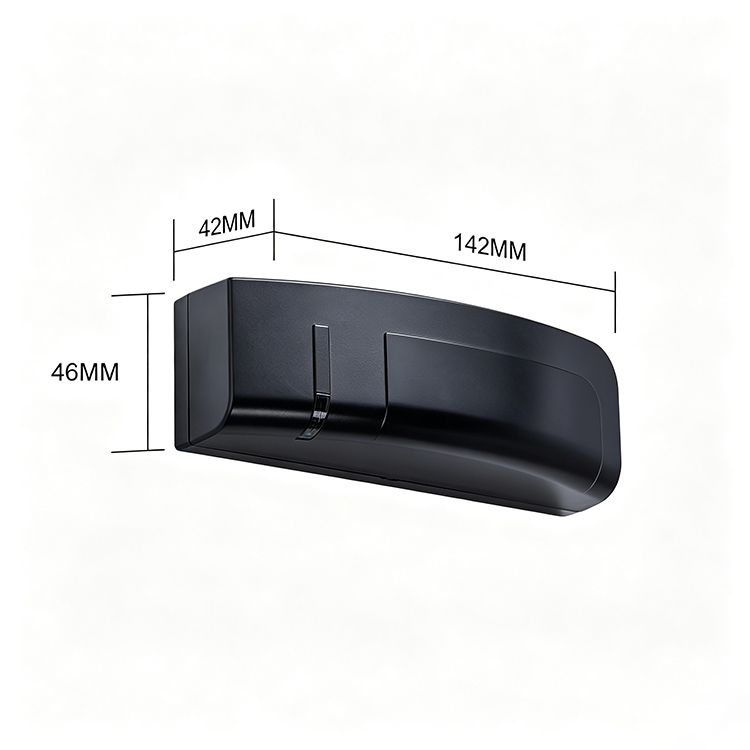

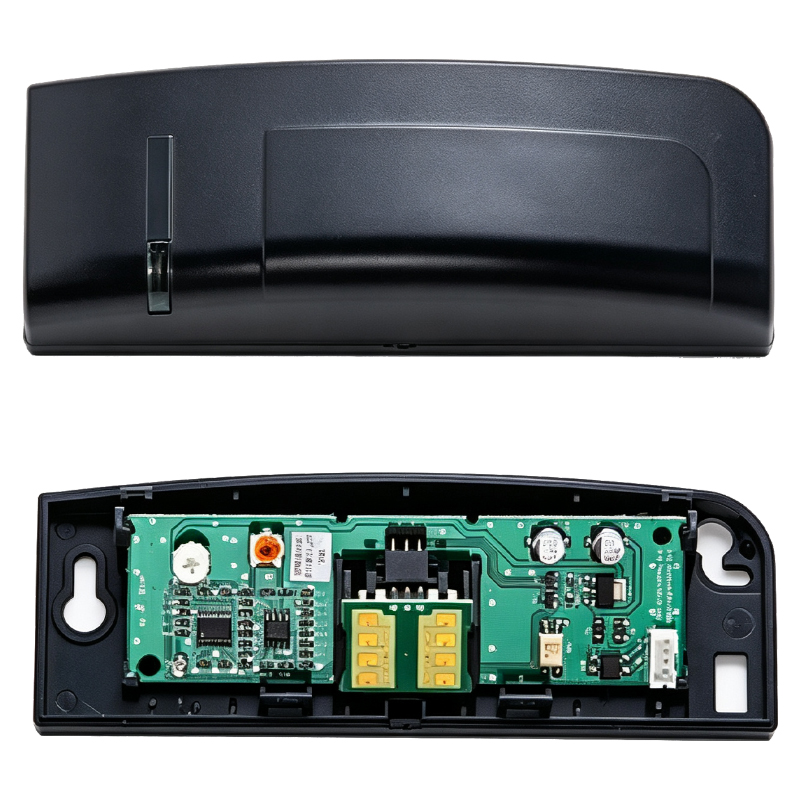

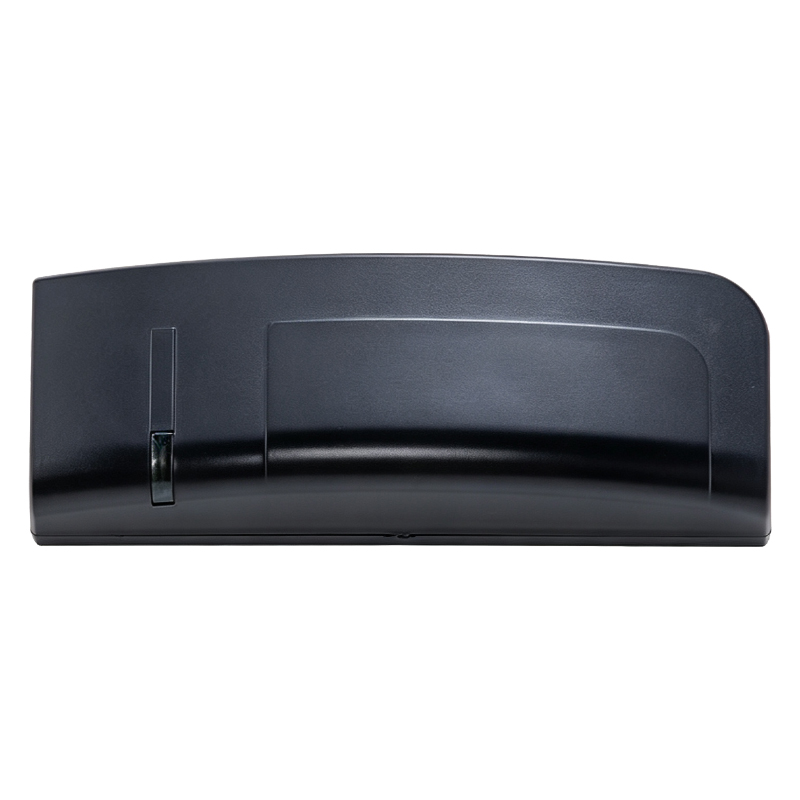

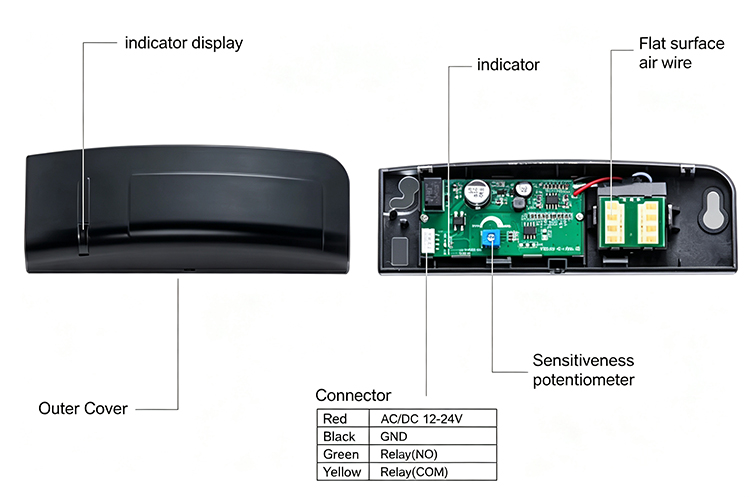

S4A104-F Automatic Door 24.125Ghz Microwave Motion Sensor

> Voltage: AC/DC 12-36V> Relay output: N.O.-point output(relay)> Maximum switching voltage: 48V AC/DC> Maximum switching current: 0.5A AC/1.0A DC> The largest power switch: 55VA/24W

24.125Ghz Doppler Microwave Technology: Ensures fast and accurate motion detection for automatic door systems. Flexible 0° to 90° Angle Adjustment: Easy far or near detection field tuning to suit various entrance layouts. High Mounting Altitude (Up to 4m): Supports higher ceiling or door frame installations up to 4 meters high. IP54 Weather Protection: Durable ABS housing offering IP54 level protection against dust and splashing water. Universal Power Input: Broad AC/DC 12–24V power compatibility for seamless door operator integration.

> Voltage: AC/DC12V~24V> Detection mode: Movement> Dimensions: 115x73mm

> Power supply: AC/DC 12V~30V > Maximum sending and receiving distance: 10M > Number of beams: Single beam or double beam optional > Dimensions (main controller): 105.5x53.4x28.5mm

>Static Current: 30mA (DC12V) >Action Current: 110mA (DC12V) >Power Supply: AC/DC 12~24V (-/+10%)

24.125Ghz Microwave Technology: Ensures fast and accurate motion detection for automatic sliding and swing doors. AC/DC 12–24V Power Input: Broad power compatibility for effortless connection with various door controllers. Max 3.5m Mounting Height: Suitable for standard commercial and residential door frame installations. Up & Down Angle Adjustment: Flexible vertical angle adjustment from 25° to 55° to optimize detection coverage. Dual Color Selection: Offered in sleek Black and Silver finishes to match modern entrance aesthetics.

24.125Ghz Microwave Technology: Delivers rapid, accurate motion detection for smooth automatic door opening. Wide Power Compatibility: Supports AC/DC 12–24V input for seamless integration with standard door controllers. Up to 4m Mounting Height: Flexible installation capability with a maximum mounting height of 4 meters. Adjustable Detection Angle: Easily adjust detection field coverage from 10° to 60° for far or near sensing. Dual Color Options: Available in Black and Silver finishes to complement modern architectural door frames.

Dual Sensing Technology: Combines Doppler microwave detection with a 200W pixel CMOS image recognition camera. Humanoid & Motion Detection: Supports smart humanoid detection, motion capture, alarm image recording, and timing video. Mobile APP & Web Browsing: Full remote regulation via smartphone APP (iPhone/Android) and browser web servers. Long-Range WiFi Connectivity: Linear WiFi transmission distance of 10m to 30m depending on signal strength. Flexible 30° Angle Adjustment: Easy camera and sensing angle adjustment up to 30° with a max mounting height of 4m.
