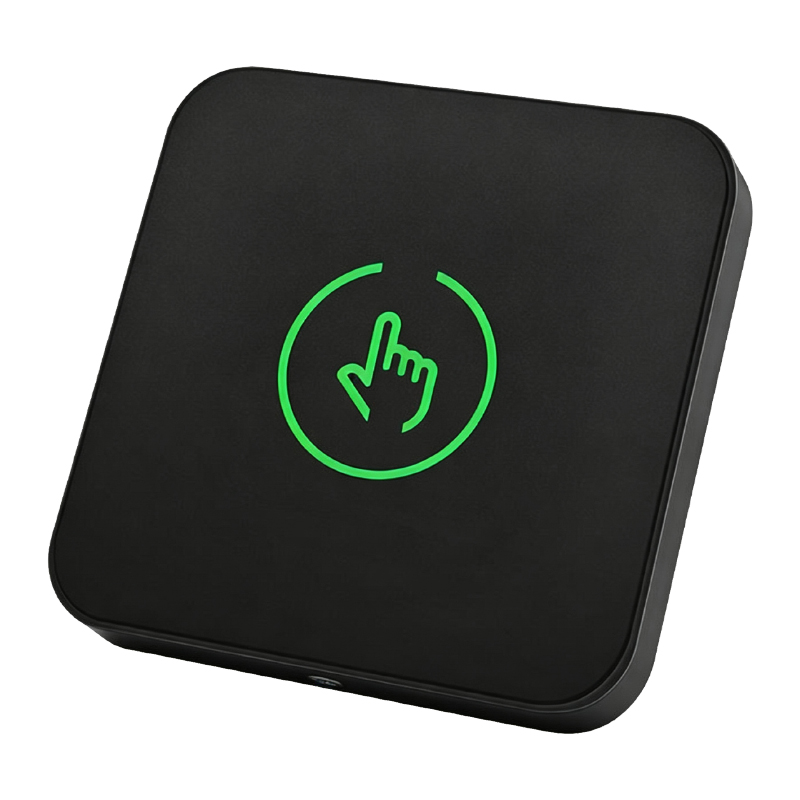

C6B Touch Sensor Exit Button

Touch Sensor Activation: Provides fast, smooth, and sensitive touch-response door release control.
Dual-Color LED Status Indicator: Integrated LED displays blue light during standby and green light upon activation.
Wide Voltage Compatibility: Supports DC 12V–24V power input for seamless access control system integration.
Durable Square Enclosure: Standard 86 x 86 x 12 mm form factor featuring a robust PC case and ABS faceplate.
Flexible Contact Output: Equipped with NO / NC / COM relay outputs compatible with standard electric lock systems.


  • Brand:

    S4A

  • Item NO.:

    C6B
Inquire Now
  • Specifications
  • Wiring Diagram
  • Package
C6B Touch Sensor Exit Button

The C6 Touch Sensor Exit Button is a high-reliability surface-mount door release solution designed for modern access control systems. Built in a standard square 86 x 86 x 12 mm profile with a durable PC case and ABS faceplate, it supports wide-range DC12V–24V power input. Featuring dual-color LED status indicators (Blue for Standby, Green for Active) and tested for 500,000 operations, the C6 provides versatile NO/NC/COM relay contacts ideal for commercial, office, and residential door access installations.


Parameter Specification
S4A Model C6B
Product Name Touch Sensor Exit Button
Dimensions 86 L x 86 W x 12 H (mm)
Power Input DC 12V–24V
Output Contact NO / NC / COM
Mounting Way Surface Mount
Material PC Case + ABS Faceplate
Mechanical Life 500,000 Tested
LED Indicator Blue LED (Standby) / Green LED (Active)
Operating Temperature -20°C ~ +55°C (14°F–131°F)
Suitable Humidity 0–95% (relative humidity)
Unit Weight 0.071 KG
Standard Package 100 PCS / Carton
Carton Weight 7.5 KG
Carton Size 51 * 43 * 33 (cm)

Door Exit Release Button
