Dimension: 86x50x20mm
Brand:
S4AItem NO.:

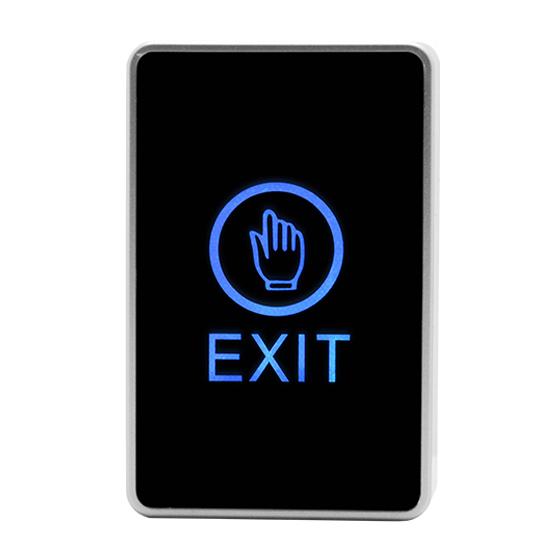

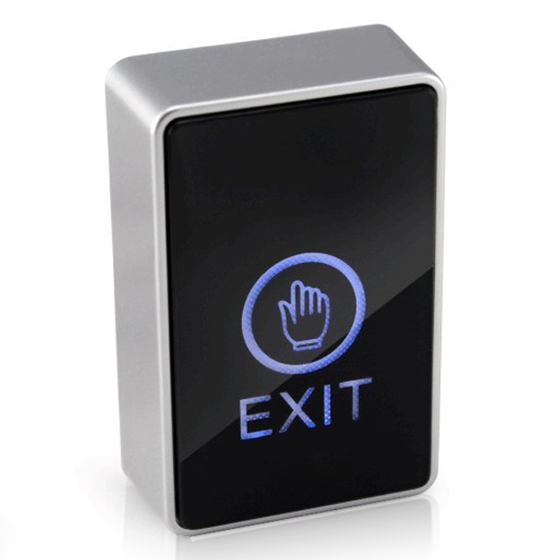

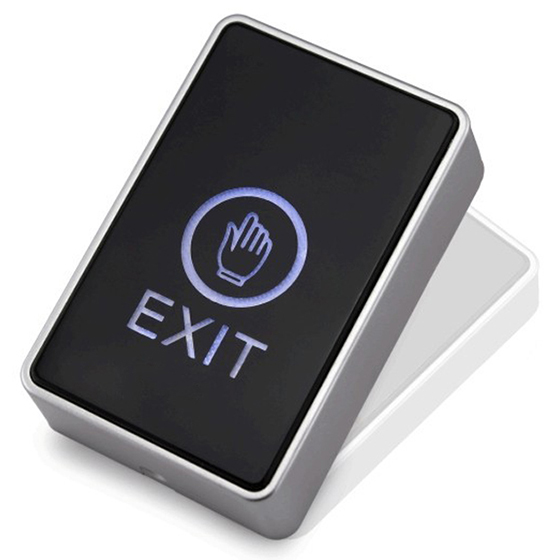

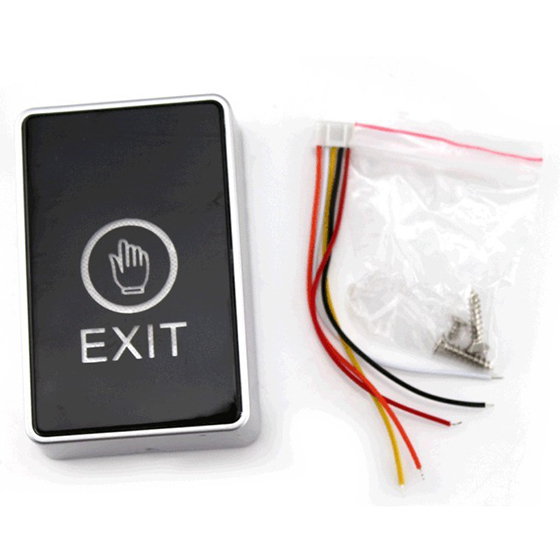

EB-1112V Access Control Button Touch Sensing Button Access Control Power Switch Button
Model No: EB-11

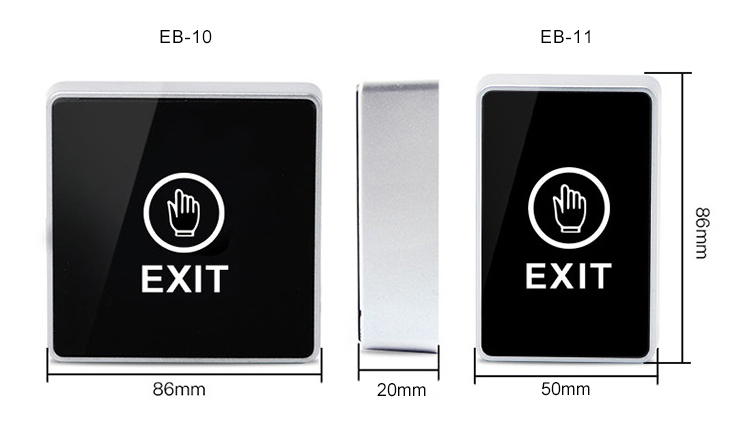

Dimensions | 86 X 50 X 20mm |
Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |

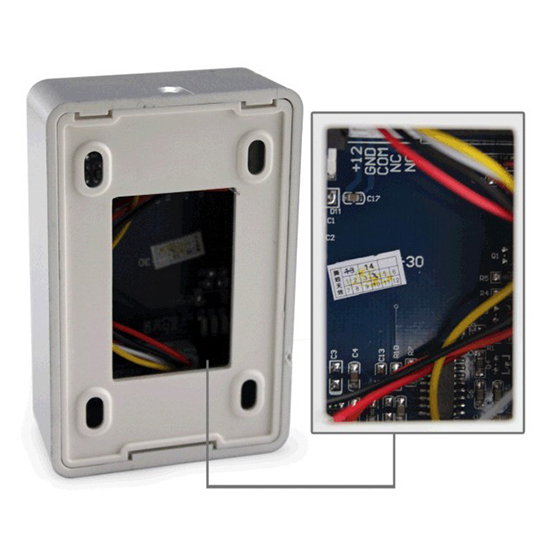

Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10~+55°C(14-131F) |
Operating Humidity | 0-95% (non- condensing) |
Dimension: 86x86x20mm
Dimension: 86x40x18mm
Dimension: 86x86x18mm
>NO/NC/COM>86*86MM
Touch Sensor Activation: Delivers instant and sensitive door release control with a simple touch. Dual-Color LED Status Indicator: Built-in LED displays blue light during standby and green light upon activation. Wide Voltage Support: Compatible with DC 12V–24V power input for flexible system integration. Durable & Compact Enclosure: Features a rugged PC case and ABS faceplate in an ultra-slim 86 x 55 x 12 mm profile. Flexible Contact Output: Equipped with standard NO / NC / COM relay outputs suitable for various electric locks.
NO/NC/COM; 115*40mm
NO/NC/COM; 86*55mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
