C5A Touch Sensor Exit Button

Touch Sensor Activation: Delivers instant and sensitive door release control with a simple touch.
Dual-Color LED Status Indicator: Built-in LED displays blue light during standby and green light upon activation.
Wide Voltage Support: Compatible with DC 12V–24V power input for flexible system integration.
Durable & Compact Enclosure: Features a rugged PC case and ABS faceplate in an ultra-slim 86 x 55 x 12 mm profile.
Flexible Contact Output: Equipped with standard NO / NC / COM relay outputs suitable for various electric locks.


  • Brand:

    S4A

  • Item NO.:

    C5A
Inquire Now
  • Specifications

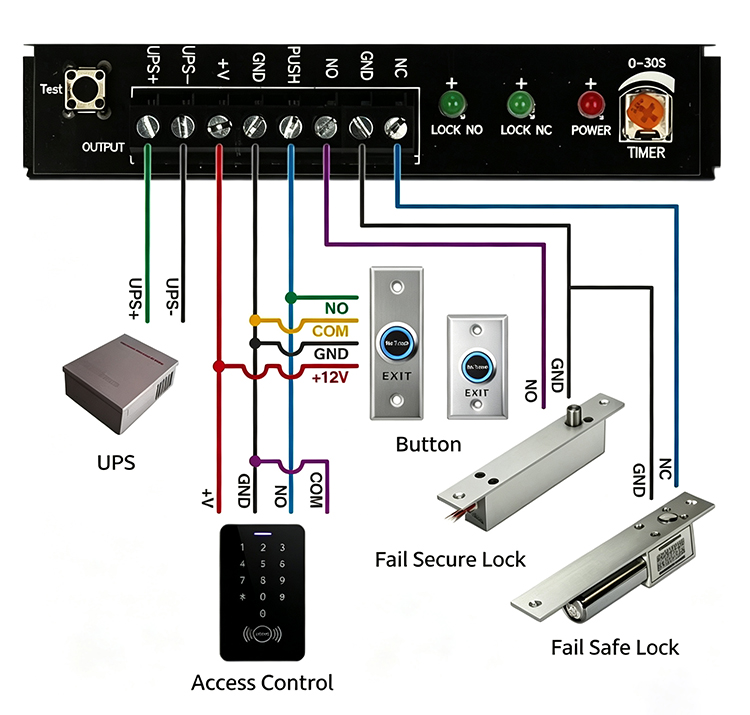

  • Wiring Diagram
  • Package

C5A Touch Sensor Exit Button


The C5 Touch Sensor Exit Button is an advanced surface-mount door release solution designed for modern access control systems. Built with a durable PC case and ABS faceplate, it supports wide-range DC12V–24V power input and features clear dual-color LED status indicators (Blue for Standby, Green for Active). Tested for 500,000 mechanical operations, the C5 provides versatile NO/NC/COM relay contacts, making it ideal for commercial, office, and residential access control applications.


Parameter Specification
S4A Model C5A
Product Name Touch Sensor Exit Button

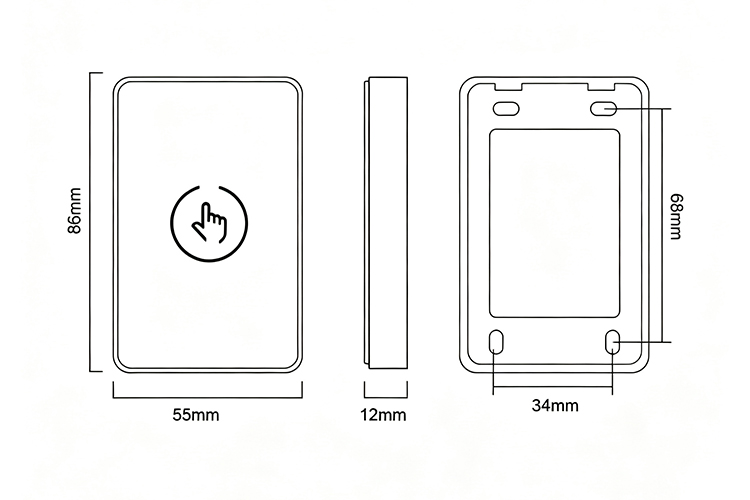

Dimensions 86 L x 55 W x 12 H (mm)
Power Input DC 12V–24V
Output Contact NO / NC / COM
Mounting Way Surface Mount
Material PC Case + ABS Faceplate
Mechanical Life 500,000 Tested
LED Indicator Blue LED (Standby) / Green LED (Active)
Operating Temperature -20°C ~ +55°C (14°F–131°F)
Suitable Humidity 0–95% (relative humidity)
Unit Weight 0.071 KG
Standard Package 100 PCS / Carton
Carton Weight 7.5 KG
Carton Size 51 * 43 * 33 (cm)
