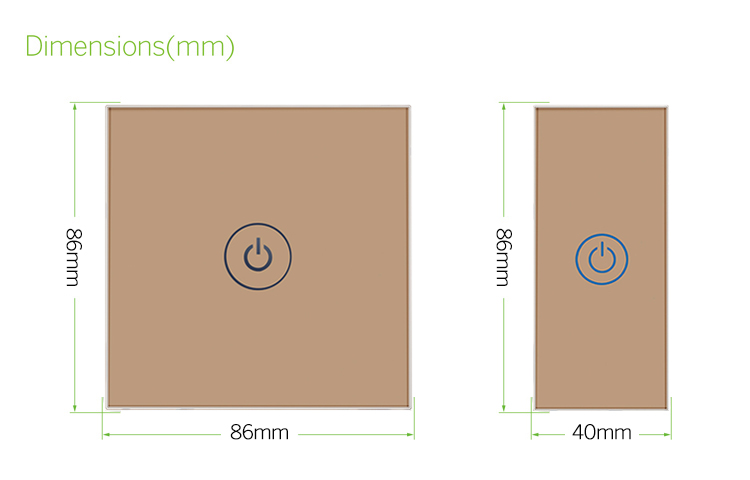

Dimension: 86x86x18mm
Brand:
S4AItem NO.:

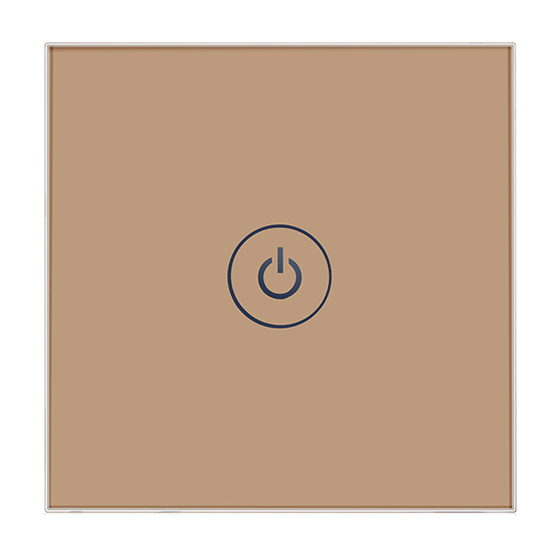

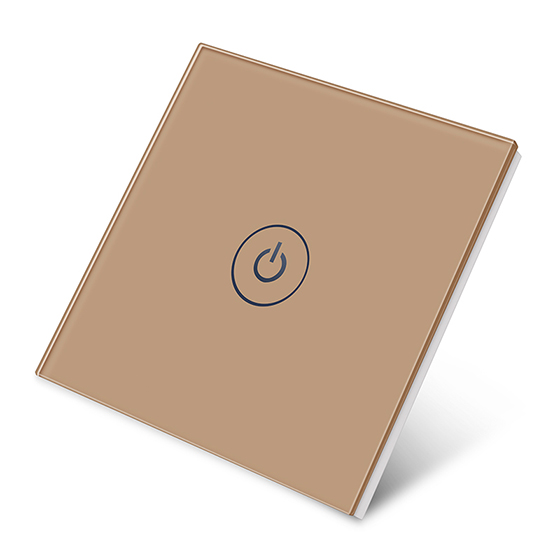

OP10BAccess Control Button Integrated Machine wall switch panel
Model No: OP10B
Description:
It's a sensitive touch exit button with an adaptive capacity of temperature and humidity, meanwhile, it won't change sensitivity and stability as the weather changes.

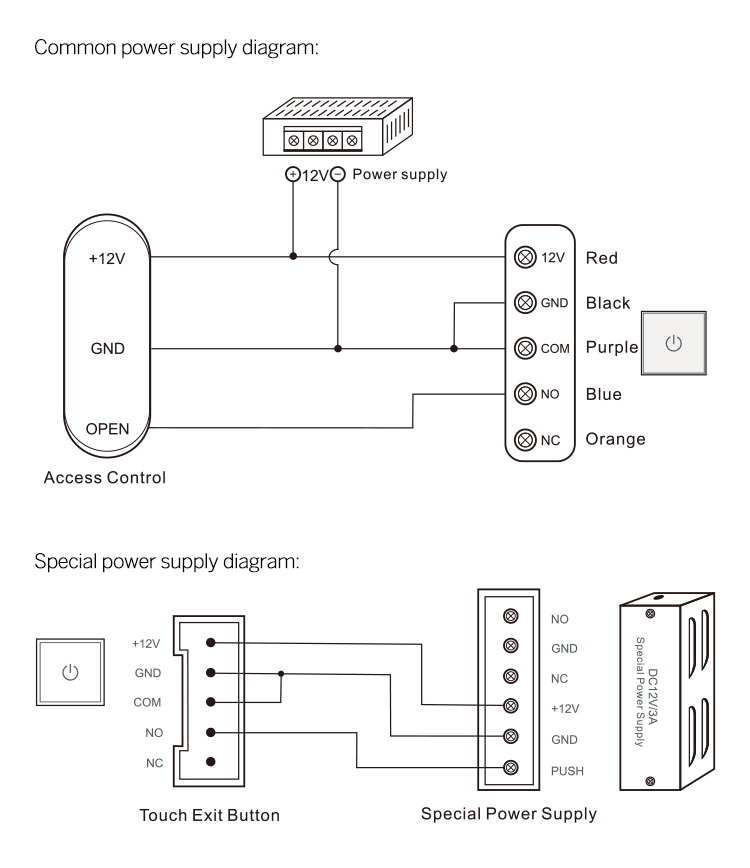

Output NO or NC signal and LED on upon touch it, Static LED is green, LED is red upon touch it.

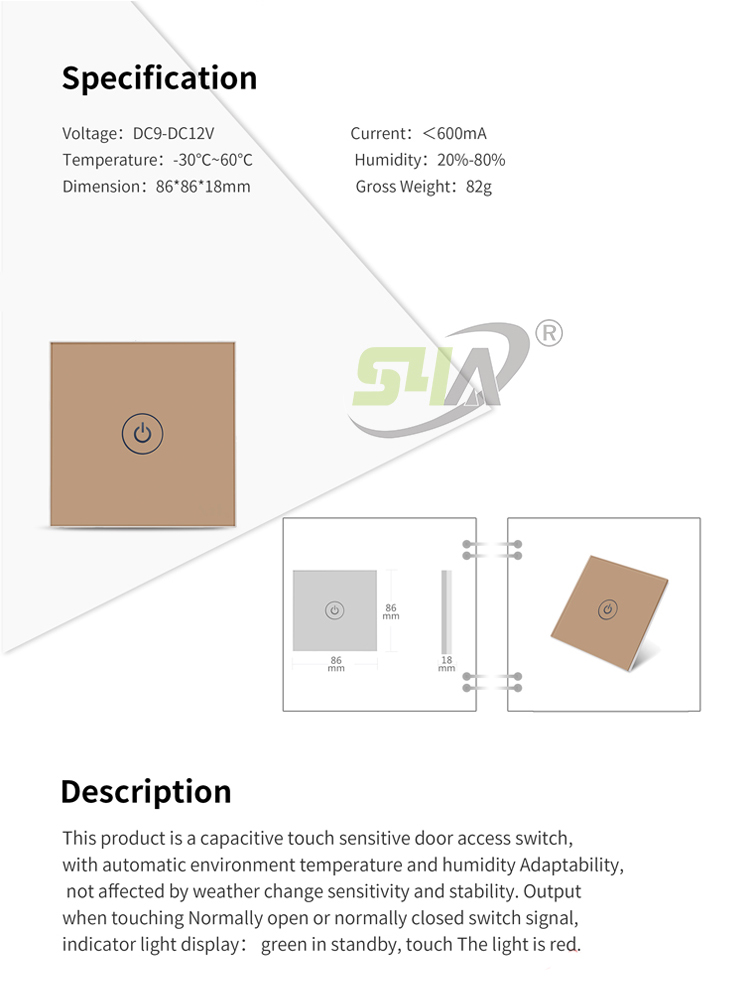

Dimensions | 86 X 86 X 18mm |
Operating Voltage | DC9-12V |
Working Current | ＜600mA |
Operating Temp | -30°C~60°C |
Operating Humidity | 20%-80% |
Weight | 82g |
Dimension: 86x86x20mm
Dimension: 86x40x18mm
Dimension: 86x50x20mm
>NO/NC/COM>86*86MM
Touch Sensor Activation: Delivers instant and sensitive door release control with a simple touch. Dual-Color LED Status Indicator: Built-in LED displays blue light during standby and green light upon activation. Wide Voltage Support: Compatible with DC 12V–24V power input for flexible system integration. Durable & Compact Enclosure: Features a rugged PC case and ABS faceplate in an ultra-slim 86 x 55 x 12 mm profile. Flexible Contact Output: Equipped with standard NO / NC / COM relay outputs suitable for various electric locks.
NO/NC/COM; 115*40mm
NO/NC/COM; 86*55mm
