Bluetooth card reader 125KHz for Access Control System

> Card type: EM, MF, Card

> Metal Case, anti-vandal

> Waterproof conforms to IP66

> One relay(Pulse mode, toggle mode)

> APP supports Android 4.3 and IOS7.0 above

> Compatible with all Bluetooth-enabled mobile phones (version: 4.0 above)

  • Brand:

    S4A
  • Item NO.:

    S5-BT
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Bluetooth Standalone Access Control

Model No.: S5-BT EM, MF


The S5-Bluetooth is a metal case anti-vandal standalone access control that can be mounted both indoor and outdoor.
The unique feature is can be operated by mobile phone through Bluetooth or 13.56MHz Mifare card / 125KHz EM card.
The operation is very smart and convenient.


User Capacity

10,000

Card

13.56MHz Mifare Card (S5-BT MF) / 125KHz EM Card (S5-BT EM)

Mobile

Android 4.3 and IOS7.0 above

Operating Voltage

12V DC

Idle current

<35mA

Active current

<90mA

Proximity Card Reader

Mifare Card / EM Card

Radio Technology

13.56MHz / 125KHz

Card Read range

2~6cm

Bluetooth

Bluetooth Version:4.0 Above

Range

<20m(relate to environment)

Reaction

<2seconds

Relay

One(NO, NC, Common)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-20°C ~ 60°C

Operating Humidity

0%~98%

Physical

Zinc-Alloy Enclosure

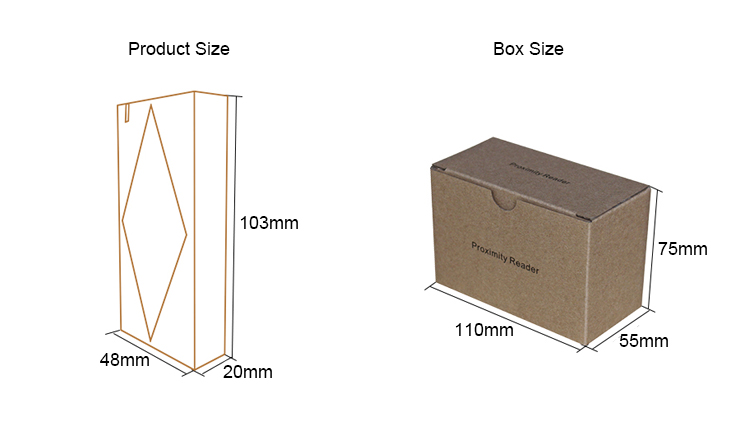

Dimension

L103 x W48 x H19 (mm)

Net Weight

260g

Shipment Weight

300g

Bluetooth Standalone Access Control

Bluetooth Standalone Access Control

Bluetooth Standalone Access Control
