Bluetooth Rfid Reader for Access Cotrol System

> Card type: EM, MF, Card
> Metal Case, anti-vandal
> Waterproof conforms to IP66
> One relay(Pulse mode, toggle mode)
> APP supports Android 4.3 and IOS7.0 above
> Compatible with all Bluetooth-enabled mobile phones (version: 4.0 above)

Brand:
S4A
Item NO.:
S6-BT

Inquire Now

Specifications

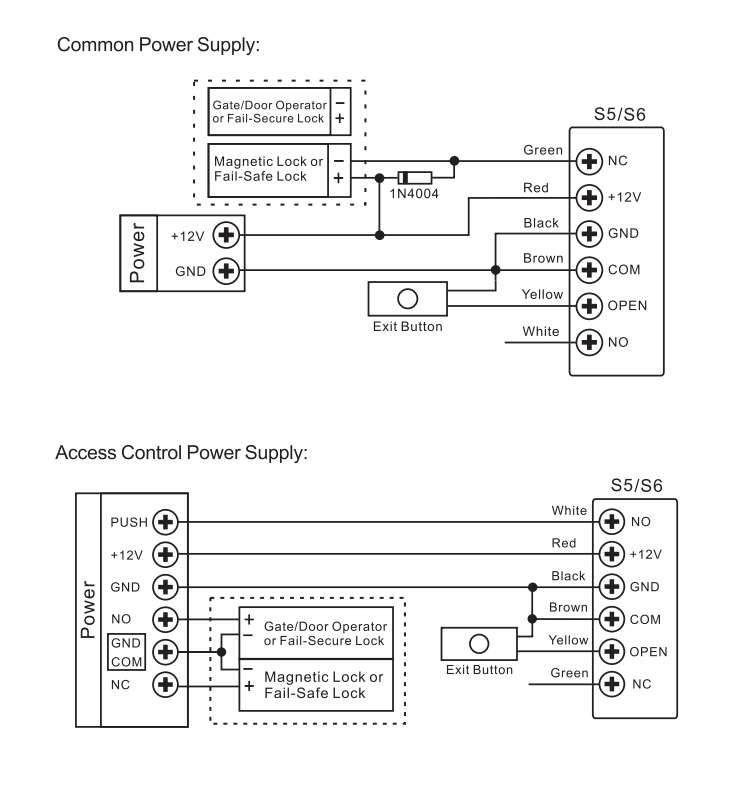

Wiring Diagram
Package
Download

Bluetooth Single-door Access Controller

Model No.: S6-BT EM, MF

The S6-Bluetooth is a metal case anti-vandal standalone access control that can be mounted both indoor and outdoor.
The unique feature is can be operated by mobile phone through Bluetooth or 13.56MHz Mifare card / 125KHz EM card.

The operation is very smart and convenient.

User Capacity	10,000
Card	13.56MHz Mifare Card (S6-BT MF) / 125KHz EM Card (S6-BT EM)
Mobile	Android 4.3 and IOS7.0 above
Operating Voltage	12V DC
Idle current	<35mA
Active current	<90mA
Proximity Card Reader	Mifare Card / EM Card
Radio Technology	13.56MHz / 125KHz
Card Read range	2~ 6cm
Bluetooth	Bluetooth Version:4.0 Above
Range	<20m(relate to environment)
Reaction	<2seconds
Relay	One(NO, NC, Common)
Lock Output Load	2 Amp Maximum
Environment	Meets IP66
Operating Temperature	-20°C~ +60°C
Operating Humidity	0%~98%
Physical	Zinc-Alloy Enclosure

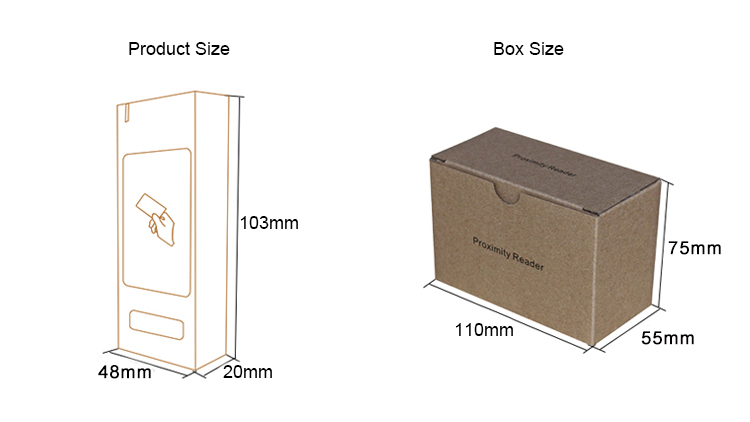

Dimension	L103 x W48 x H19 (mm)
Net Weight	260g
Shipment Weight	300g

Bluetooth Single door Access Controller

S4A User Manual S6-BT_Bluetooth Rfid Reader for Access Cotrol System (IOS)

Download
