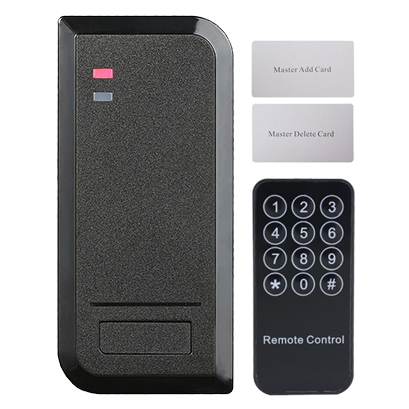

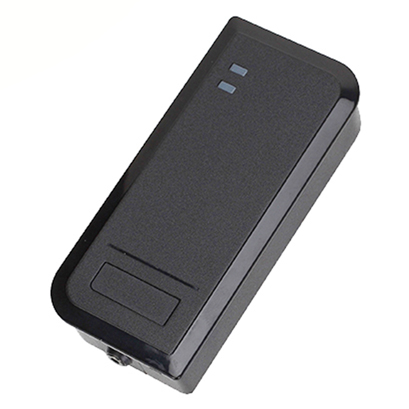

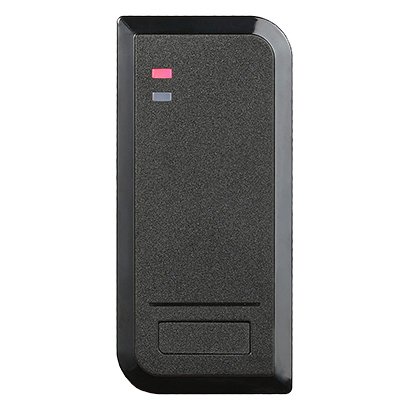

DC12-18V Convertible Controller and Reader

> Card type: EM or EM+HID Card

> Waterproof conforms to IP66

> One relay, 1000 users

> Access modes: Card, PIN, Card + PIN, Multi Cards

> Card type: 125KHz EM & Hid card, PIN length: 4~6 digits

> Wiegand 26~37 bits input & output

> User data can be transferred by Wiegand line

> Pulse mode, toggle mode

> 2pcs devices support interlock for two doors

  • Brand:

    S4A
  • Item NO.:

    S2-X
  • Specifications

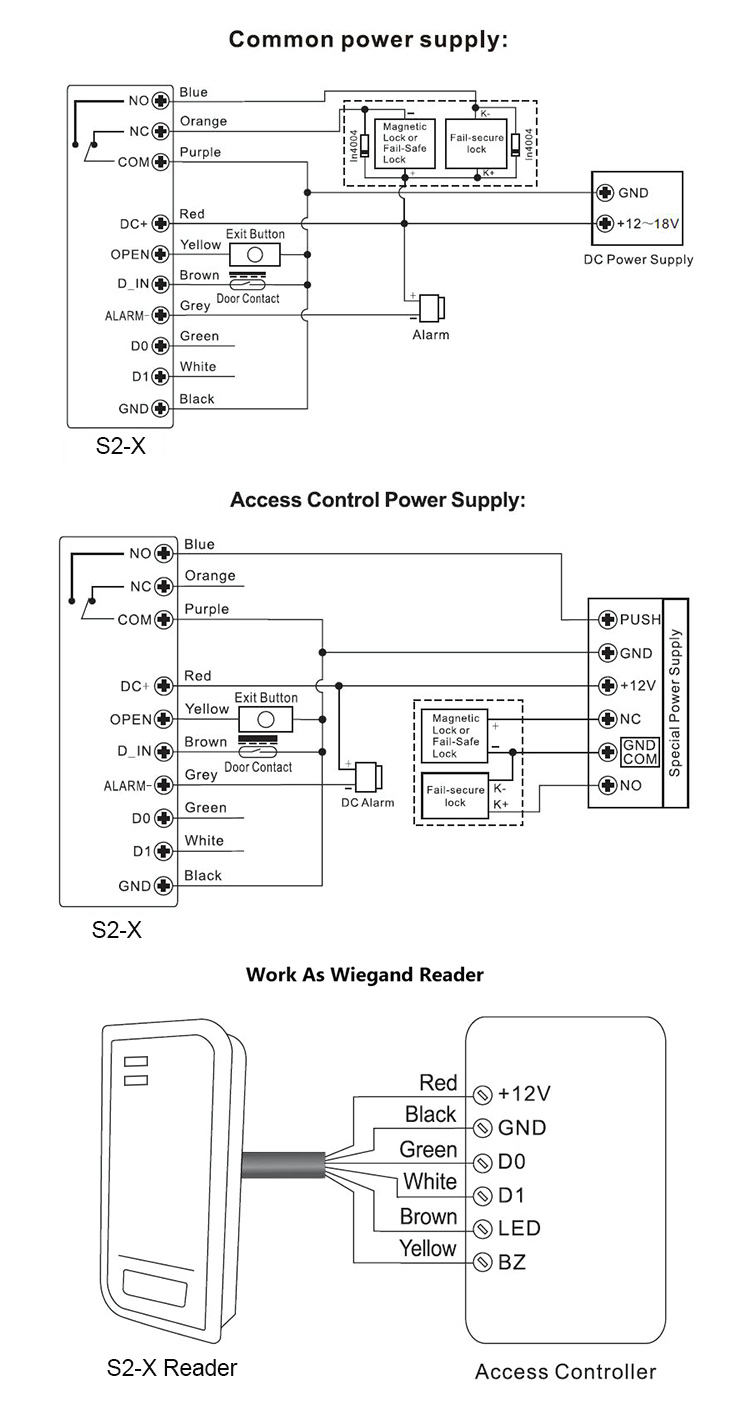

  • Wiring Diagram

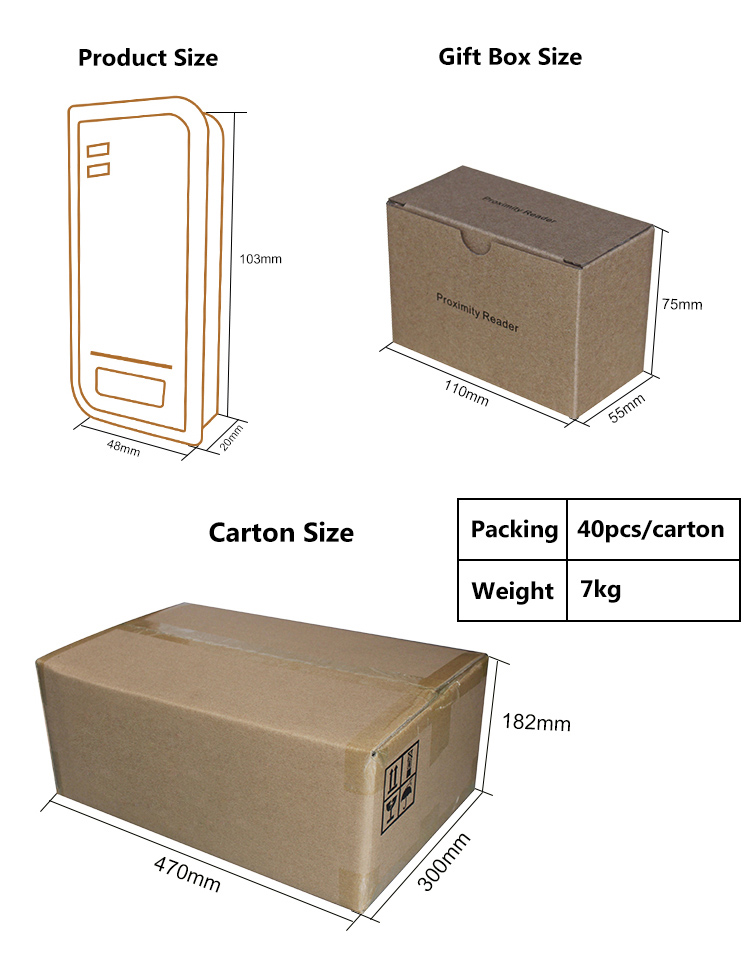

  • Package
  • Download

Convertible Controller/Reader

Model No.: S2-X EM, EM&HID


The S2-X is a single door multifunction standalone access controller or a Wiegand output reader.

It supports multi-access modes, and it has extra features including block enrollment, interlocked...etc.

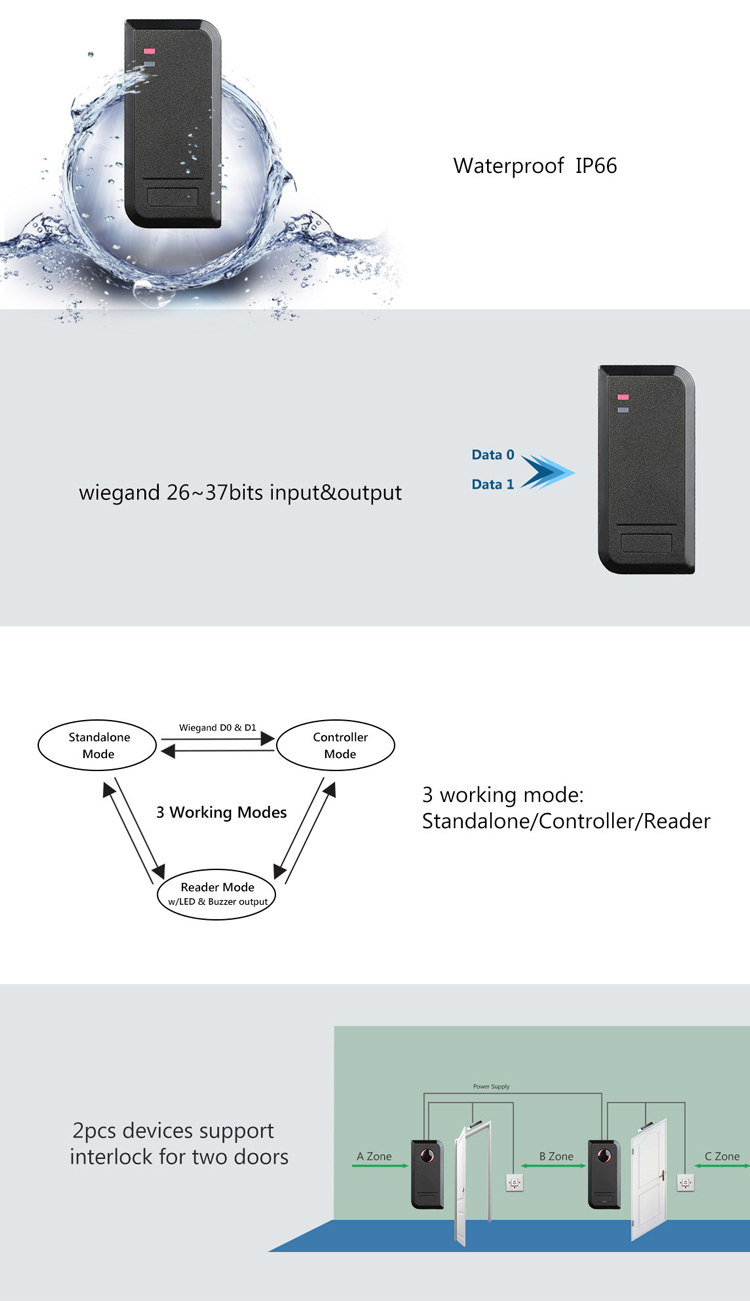

> Waterproof conforms to IP66

> One relay, 1000 users

> Access modes: Card, PIN, Card + PIN, Multi Cards

> Card type: 125KHz EM & Hid card, PIN length: 4~6 digits

> Wiegand 26~37 bits input & output

> User data can be transferred by Wiegand line

> Pulse mode, toggle mode

> 2pcs devices support interlock for two doors


User Capacity

1000

Common User

998

Panic User

2

Operating Voltage

12~18V DC

Idle Current

< 35mA

Proximity Card Reader

EM, EM&HID

Radio Technology

125KHz Proximity Card

Read Range

2~6 cm

Wiring Connections

Relay Output, Exit Button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Operating Humidity

0%RH ~ 98%RH

Physical

ABS Shell

Colour

Black (White optional)

Dimensions

L103 x W48 x H20 (mm)

Unit Weight

125g

Shipping Weight

185g


Convertible Controller

Convertible Controller

Convertible Controller

S4A User Manual S2-X_DC12-18V Convertible Controller and Reader
