ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers

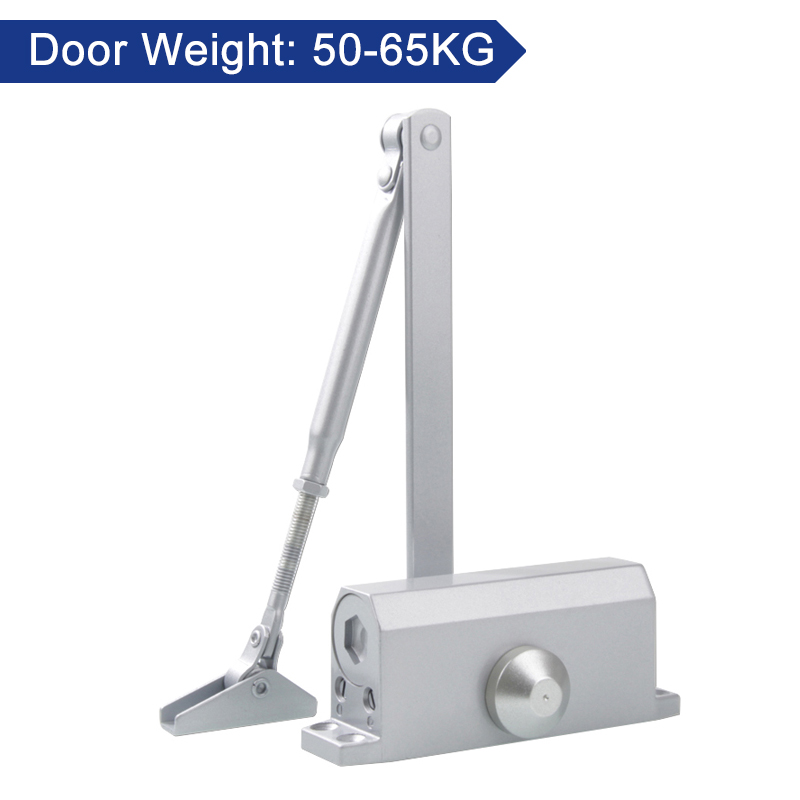

> Door Weight: 50-65KG

> Material: Aluminum alloy

> Door Width: 1000mm

> Dimensions: 175x65x40mm

  • Brand:

    S4A
  • Item NO.:

    DL-60
  • Specifications
  • Wiring Diagram
  • Package

ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers

Model No.: DL-60


Material

Aluminum alloy

Door Weight

50~65KG

Door Width

1000mm

Finish

Electrostatic paint

Speed adjustment

Two stages of adjustable speed

Temperature

-40°C~80°C, -60°C~80°C

Function

90° hold-open and Automatic (Factory default is Automatic)

Warranty

300000 times; 500000 times

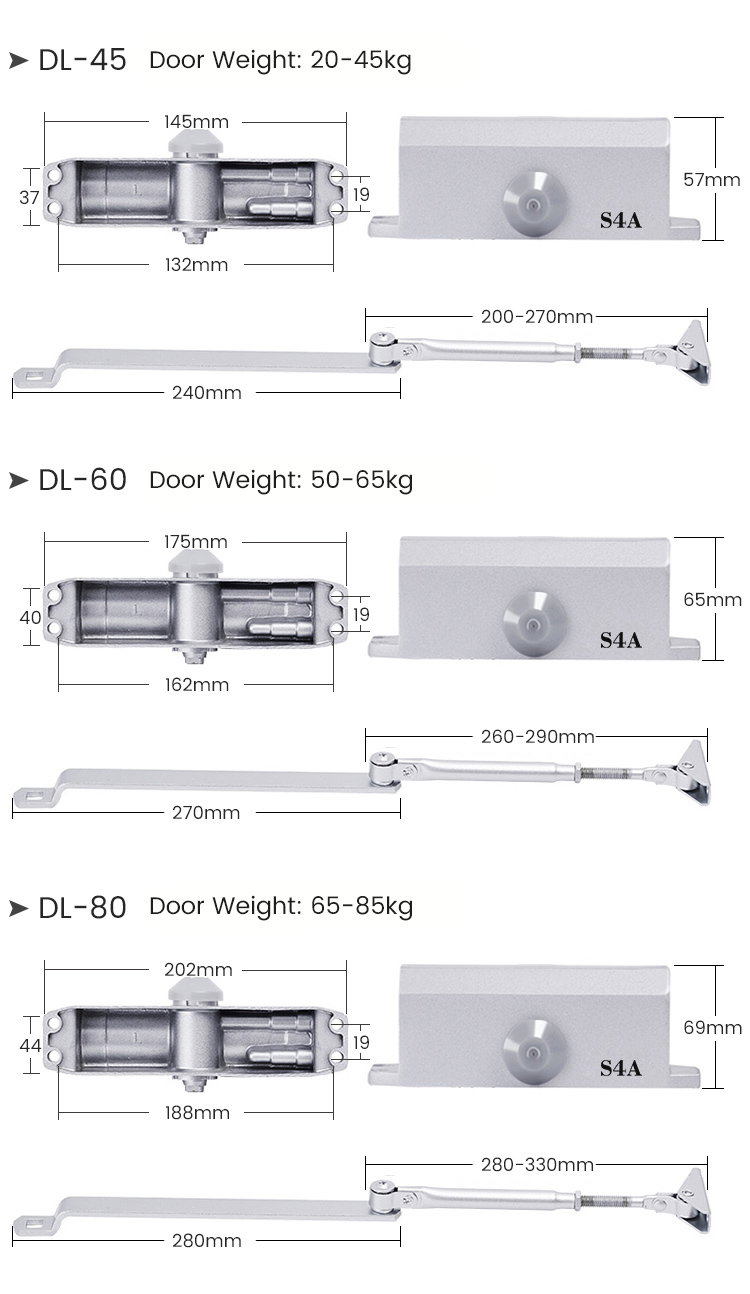

Dimensions

175x65x40mm


Application:

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.


Functional:

A. Economic type door closer of residential and commercial

B. Performance standard: QB/T 2698-2013

C. Two speed control valve,adjusting closing speed and latching speed

D. ADC12 environmental production of aluminum alloy casting body


Product Details:

1. Cycle test: up to 500,000 cycles

2. Hydraulic oil: low-temperature resistance to -45℃

3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken

4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance

5. Power Size EN4/5

6. Positioning Function Optional

7. Back-check function Optional

8. Manufactured under strict observation of EN1154 standard

9. Precise sealed, preventing oil leakage

10. High quality die-casting aluminum alloy, protected with two-layer bright paint.

11. Two hydraulic press valves controlling two stage doors closing automatically.

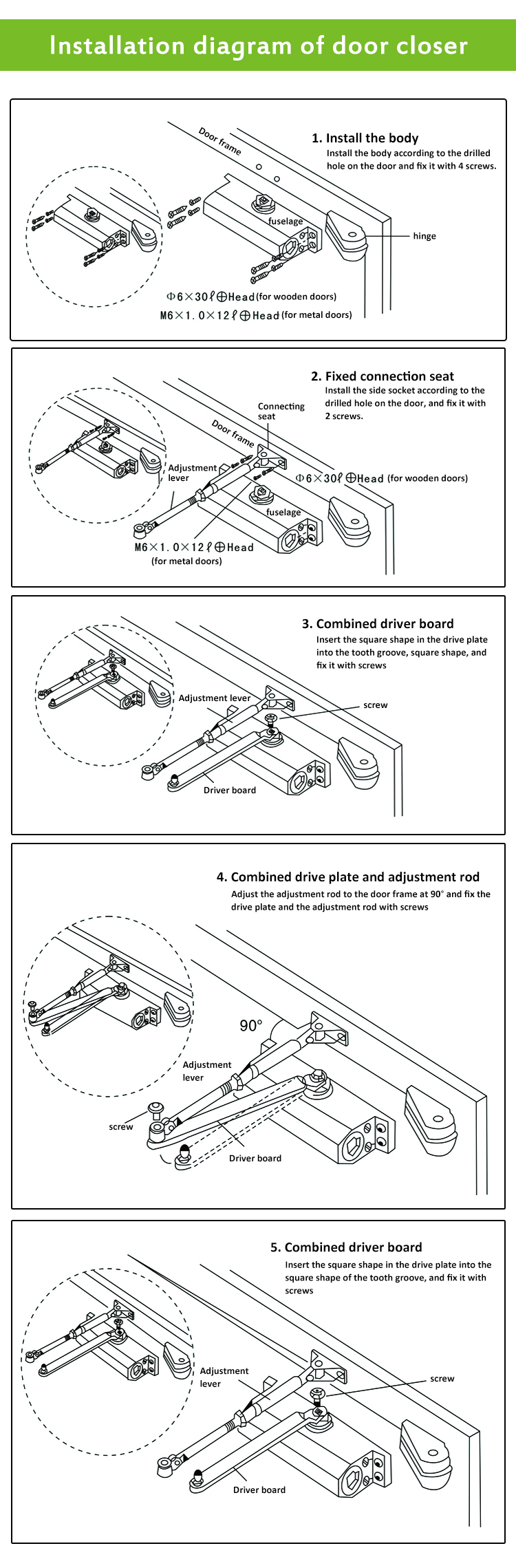

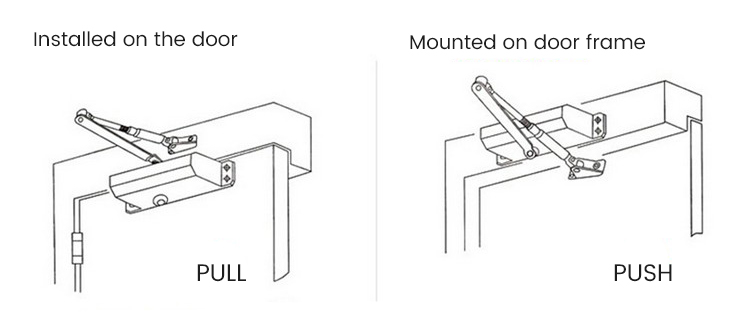

12. It can be installed on the door plate or installed on the doorframe.


Packaging:

Polybag inside, carton box outside, each carton is less than 25kg.(Or according to the customer request)
