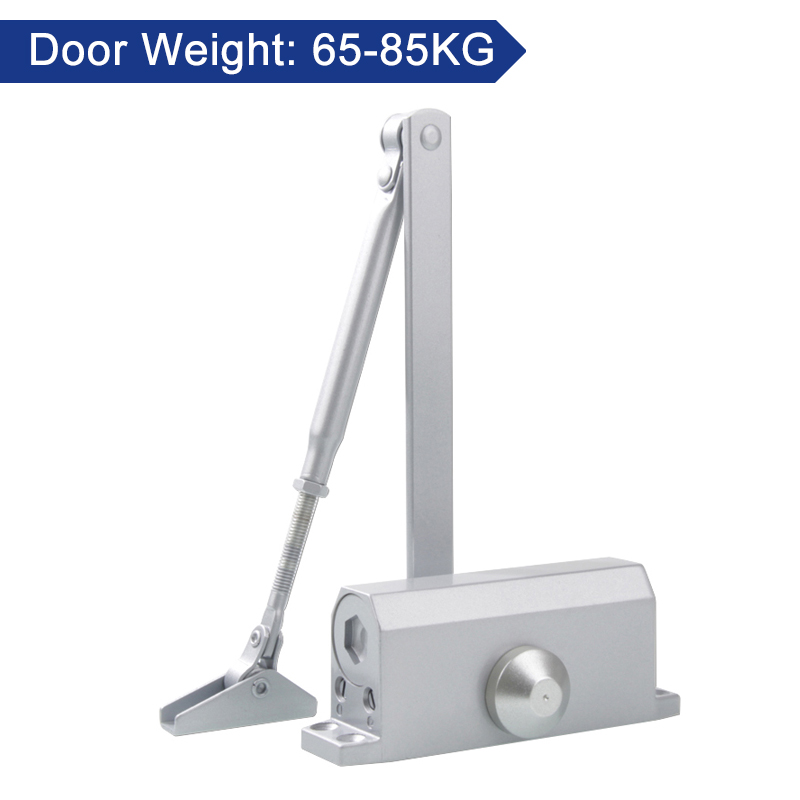

Aluminium Hydraulic Overhaned Automatic Door Closer for Any Kinds Door

> Door Weight: 65-85KG

> Material: Aluminum alloy

> Door Width: 1200mm

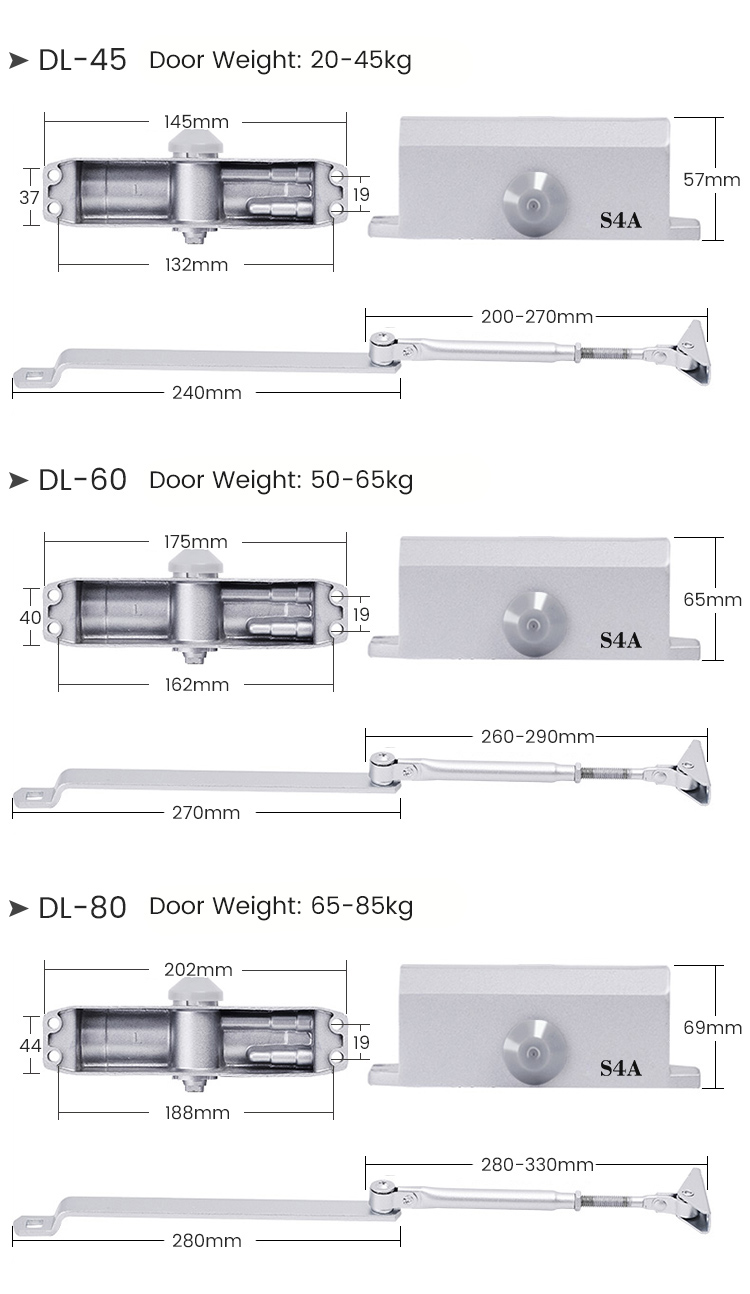

> Dimensions: 202x69x44mm

  • Brand:

    S4A
  • Item NO.:

    DL-80
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Aluminium Hydraulic overhaned automatic door closer for any kinds door

Model No.: DL-80


Material

Aluminum alloy

Door Weight

65~85KG

Door Width

1200mm

Finish

Electrostatic paint

Speed adjustment

Two stages of adjustable speed

Temperature

-40°C~80°C, -60°C~80°C

Function

90° hold-open and Automatic (Factory default is Automatic)

Warranty

300000 times; 500000 times

Dimensions

202x69x44mm


Application:

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.


Functional:

A. Economic type door closer of residential and commercial

B. Performance standard: QB/T 2698-2013

C. Two speed control valve,adjusting closing speed and latching speed

D. ADC12 environmental production of aluminum alloy casting body


Product Details:

1. Cycle test: up to 500,000 cycles

2. Hydraulic oil: low-temperature resistance to -45℃

3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken

4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance

5. Power Size EN4/5

6. Positioning Function Optional

7. Back-check function Optional

8. Manufactured under strict observation of EN1154 standard

9. Precise sealed, preventing oil leakage

10. High quality die-casting aluminum alloy, protected with two-layer bright paint.

11. Two hydraulic press valves controlling two stage doors closing automatically.

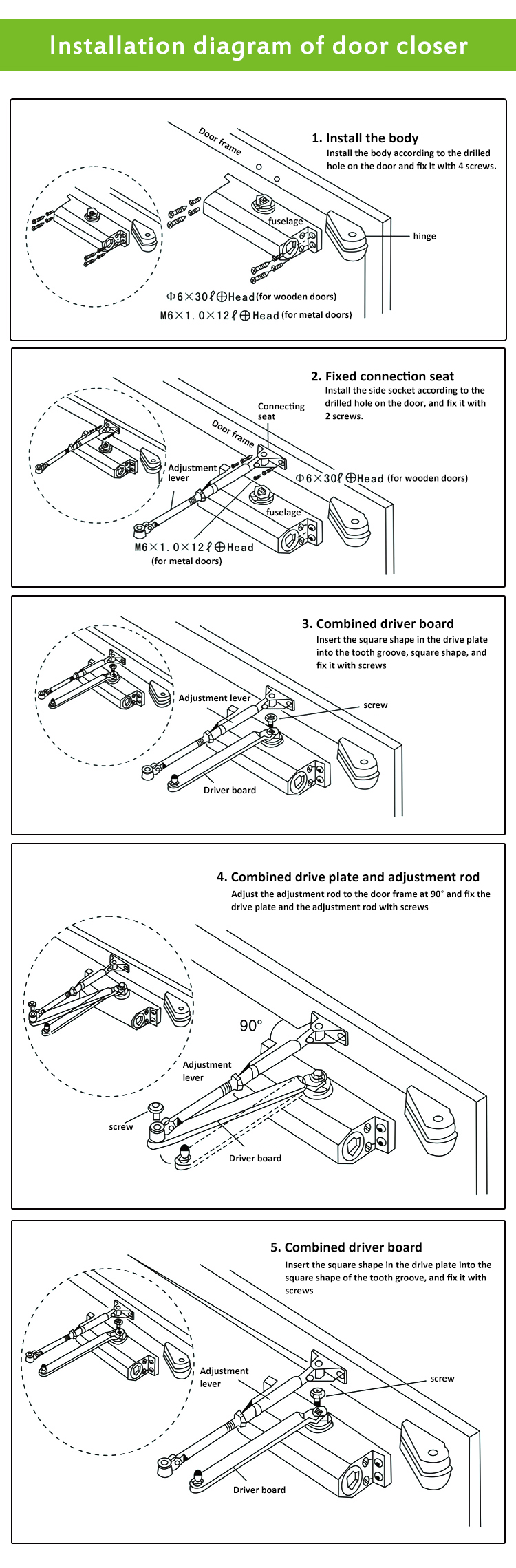

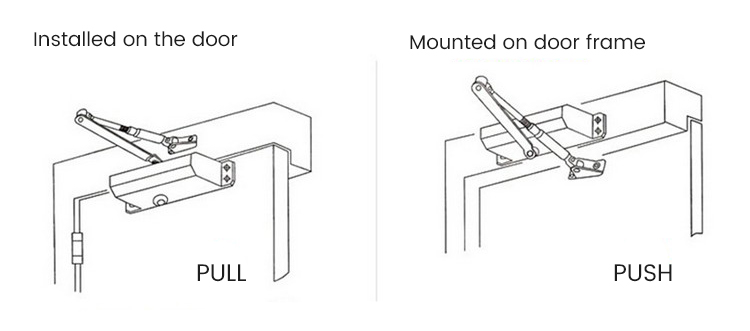

12. It can be installed on the door plate or installed on the doorframe.


Packaging:

Polybag inside, carton box outside,each carton is less than 25kg.(Or according to the customer request)


door closer

door closer

Closer DoorsCloser DoorsCloser DoorsCloser DoorsCloser DoorsCloser DoorsCloser DoorsCloser Doors

Closer Doors

door closer

Aluminium Hydraulic Overhaned Automatic Door Closer for Any Kinds Door

Model No.

Quantity/Carton

Gross Weight

Carton Size

DL-80

10pcs

17.16KG

47X32X18cm

Closer Doors

S4A_Datesheet_Aluminium Hydraulic overhaned automatic door closer for any kinds door
