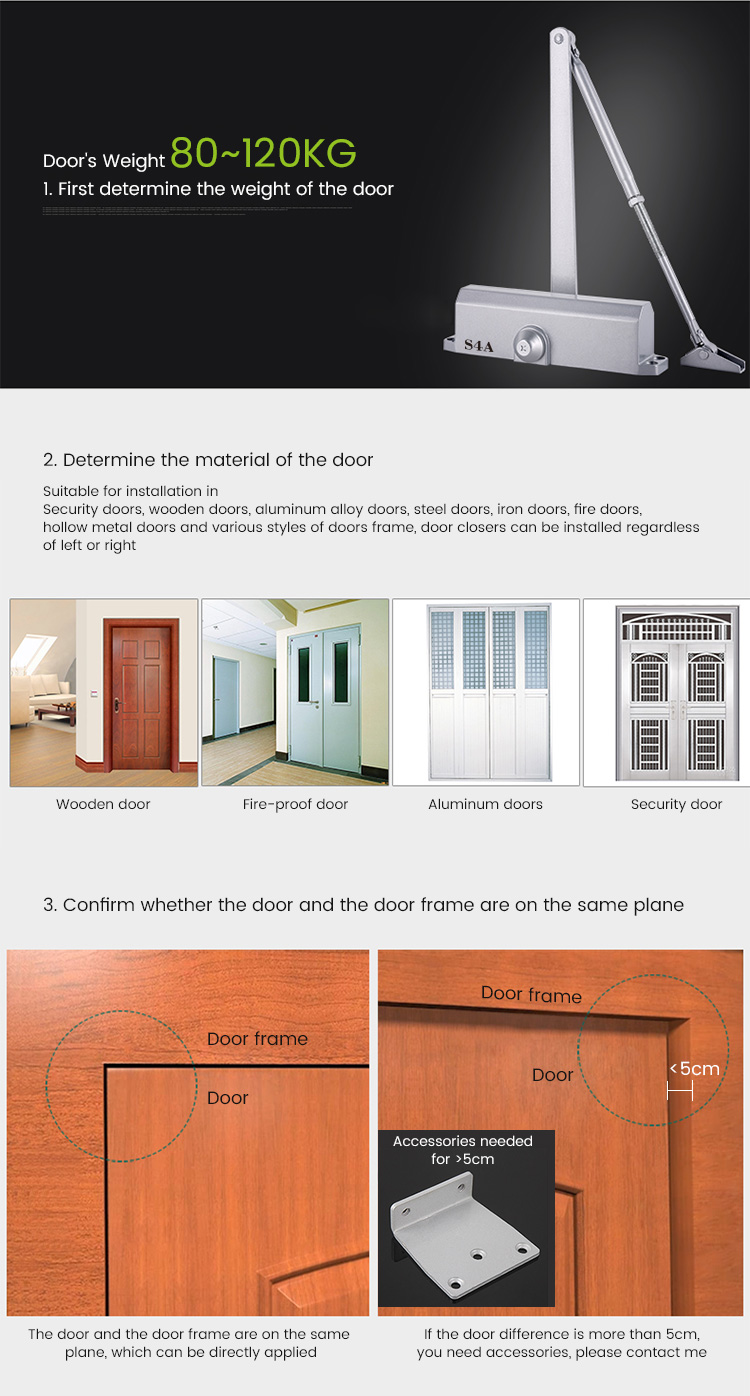

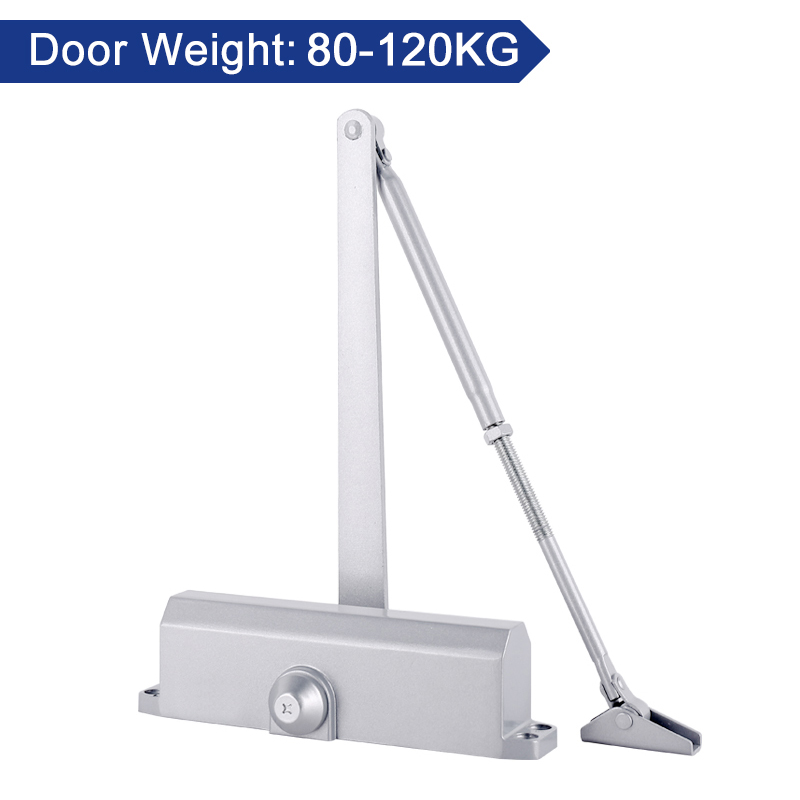

> Door Weight: 80-120KG
> Material: Aluminum alloy
> Door Width: 1030~1250mm

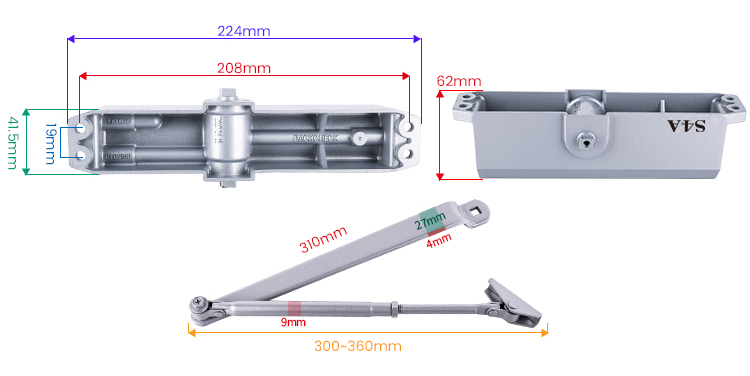

> Dimensions: 224x62x41.5mm
Brand:
S4AItem NO.:
DL-120Hydraulic Door Closer 80-120KG
Model No.: DL-120
Application:
The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.
Colour | Silver gray |
Exterior | Square |
Installation hole distance | 208x19 |
Door width | 1030~1250mm |

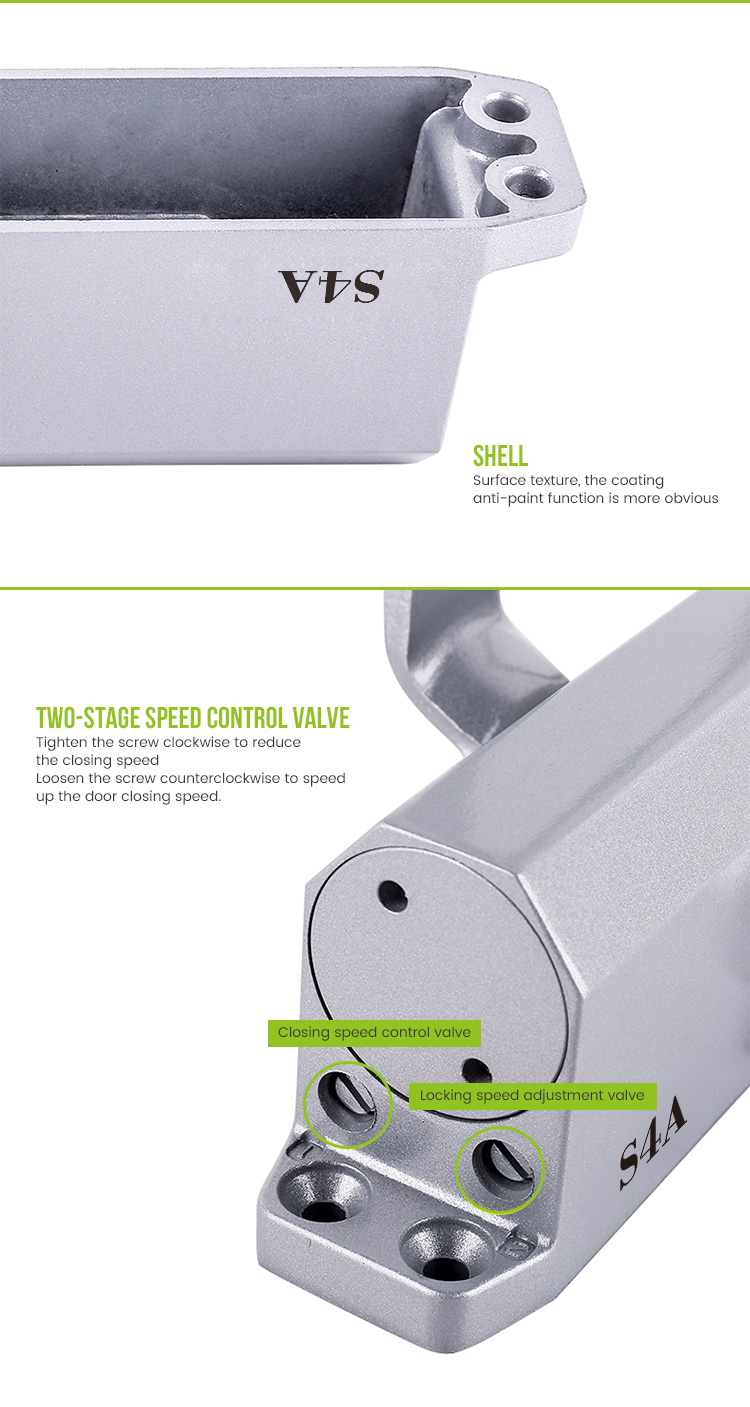

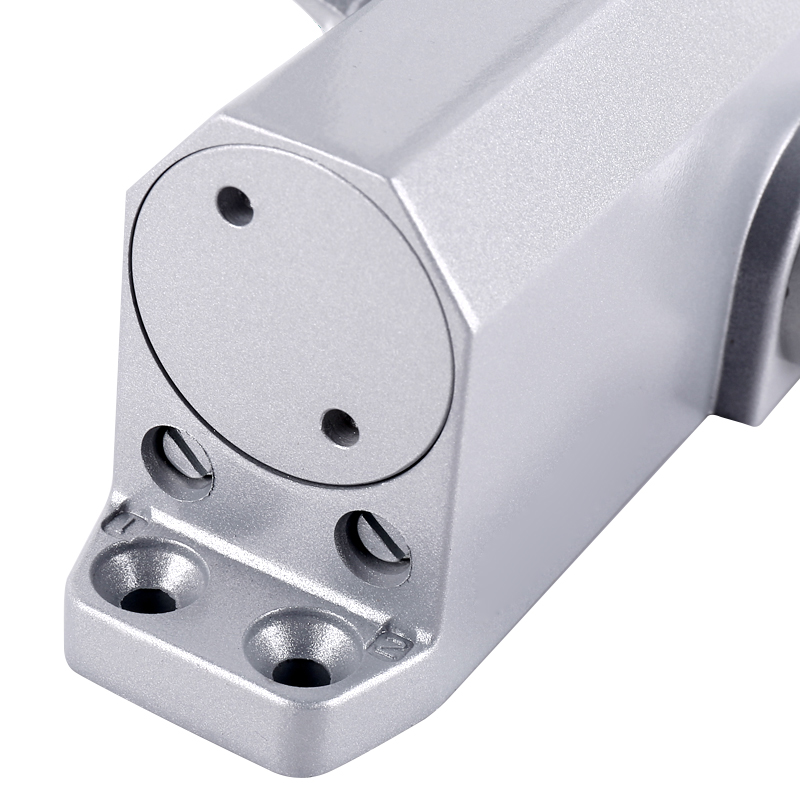

Closing speed | 100°~180° adjustable |
Blocking speed | 0°~15° adjustable |
Ambient temperature | -30℃~50℃ |
Scope of application | Shopping mall entrance doors, apartment doors, security doors, hotel suites, family doors, etc. |

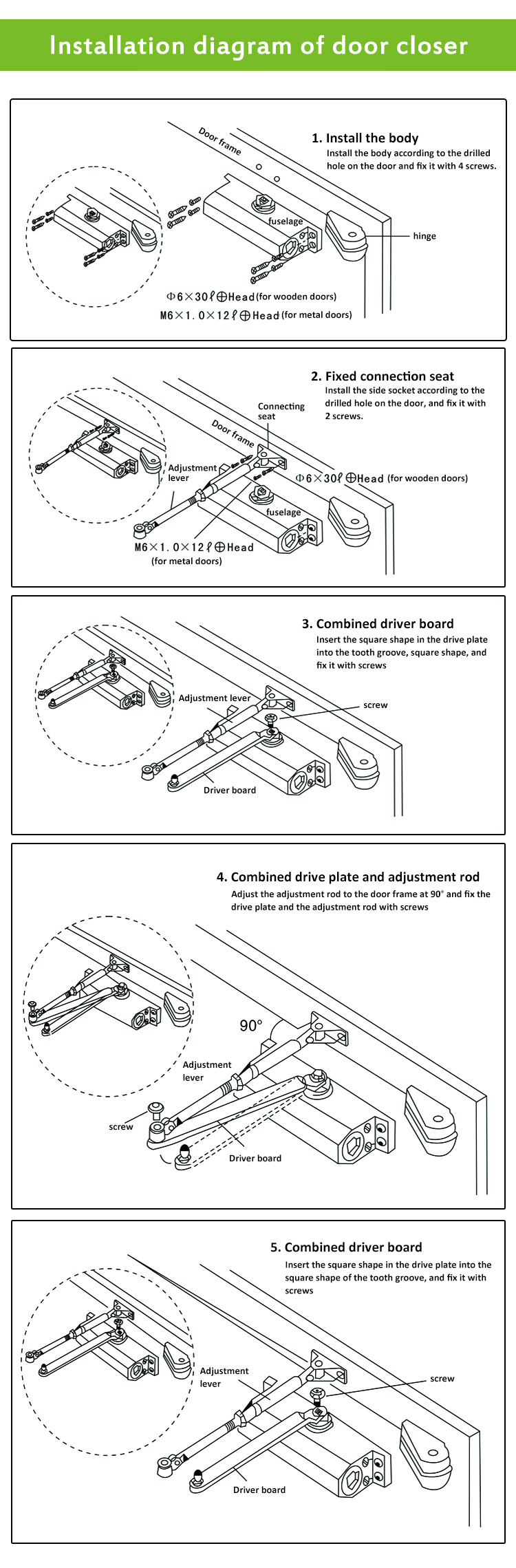

Before the door closer is installed, the central axis of the door closer cannot be rotated 180°, otherwise it will damage the door closer and cause it to be unusable.
Hydraulic Door Closer 80-120KG | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
DL-120 | 10 PC | 6.18 KG | 24.4 KG | 33x18x52 CM |
S4A_Datesheet_Hydraulic Door Closer 80-120KG
