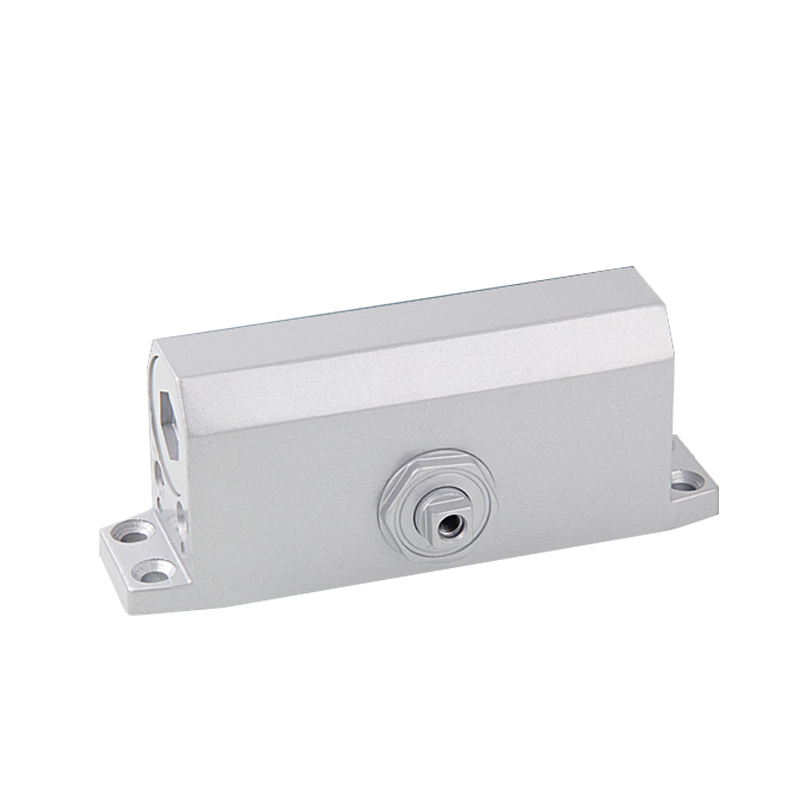

Aluminum Housing Steel Arm Residential Door Closer

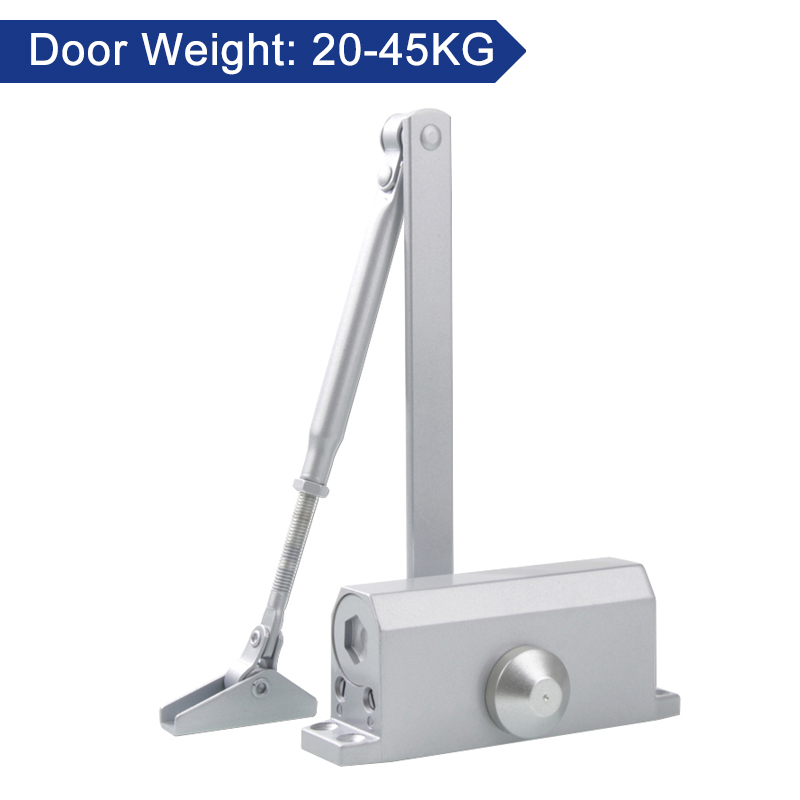

20~45KG automatic door closer Aluminum Housing Steel Arm Residential Door Closer

Model No.: DL-45

Application:

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.

Functional:

A. Economic type door closer of residential and commercial

B. Performance standard: QB/T 2698-2013

C. Two speed control valve,adjusting closing speed and latching speed

D. ADC12 environmental production of aluminum alloy casting body

Product Details:

1. Cycle test: up to 500,000 cycles

2. Hydraulic oil: low-temperature resistance to -45℃

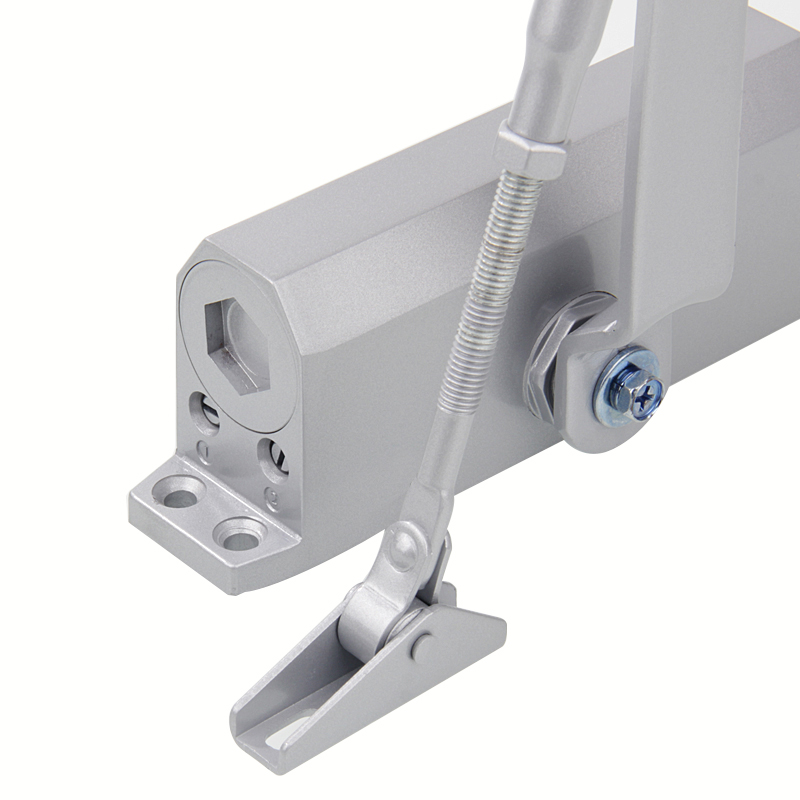

3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken

4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance

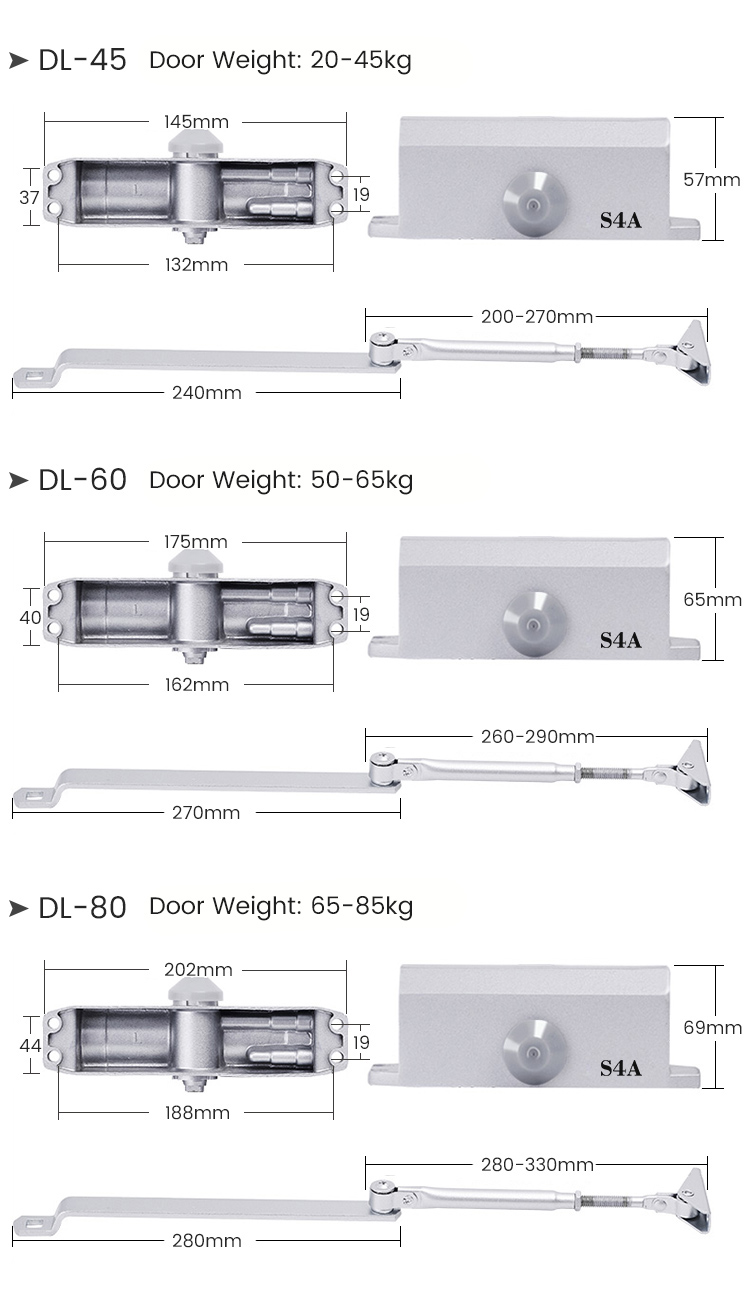

5. Power Size EN4/5

6. Positioning Function Optional

7. Back-check function Optional

8. Manufactured under strict observation of EN1154 standard

9. Precise sealed, preventing oil leakage

10. High quality die-casting aluminum alloy, protected with two-layer bright paint.

11. Two hydraulic press valves controlling two stage doors closing automatically.

12. It can be installed on the door plate or installed on the doorframe.

Packaging:

Polybag inside, carton box outside, each carton is less than 25kg. (Or according to the customer request)
