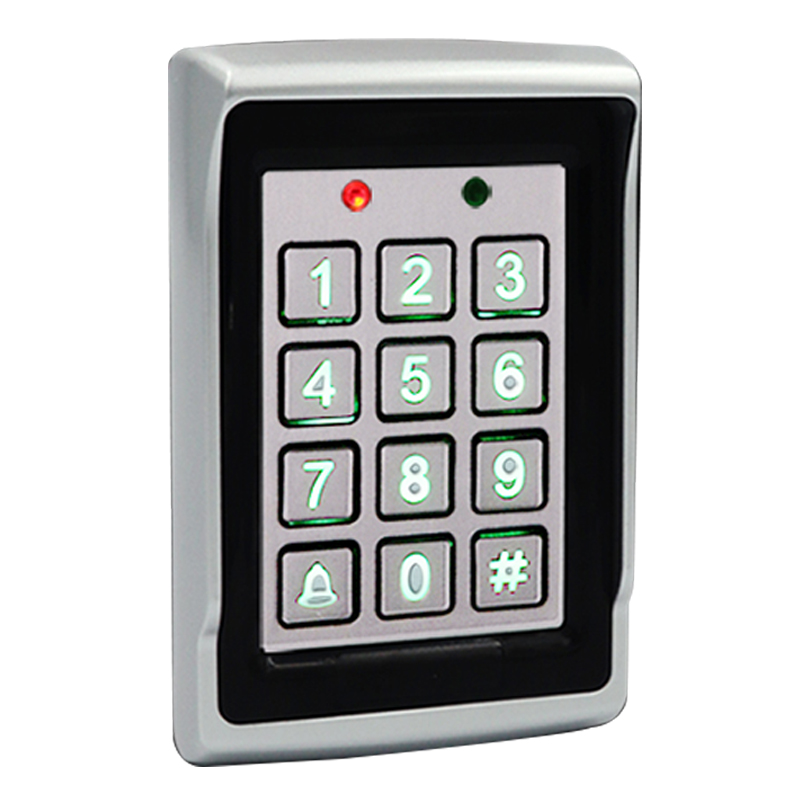

7612 Rfid Standalone Access Control System with 24V

>Operating Voltage:DC24V

>Public password:ID card, 125KHZ

>External card reader:one, Wiegand26 format

  • Brand:

    S4A
  • Item NO.:

    7612-Cover-24V
  • Specifications

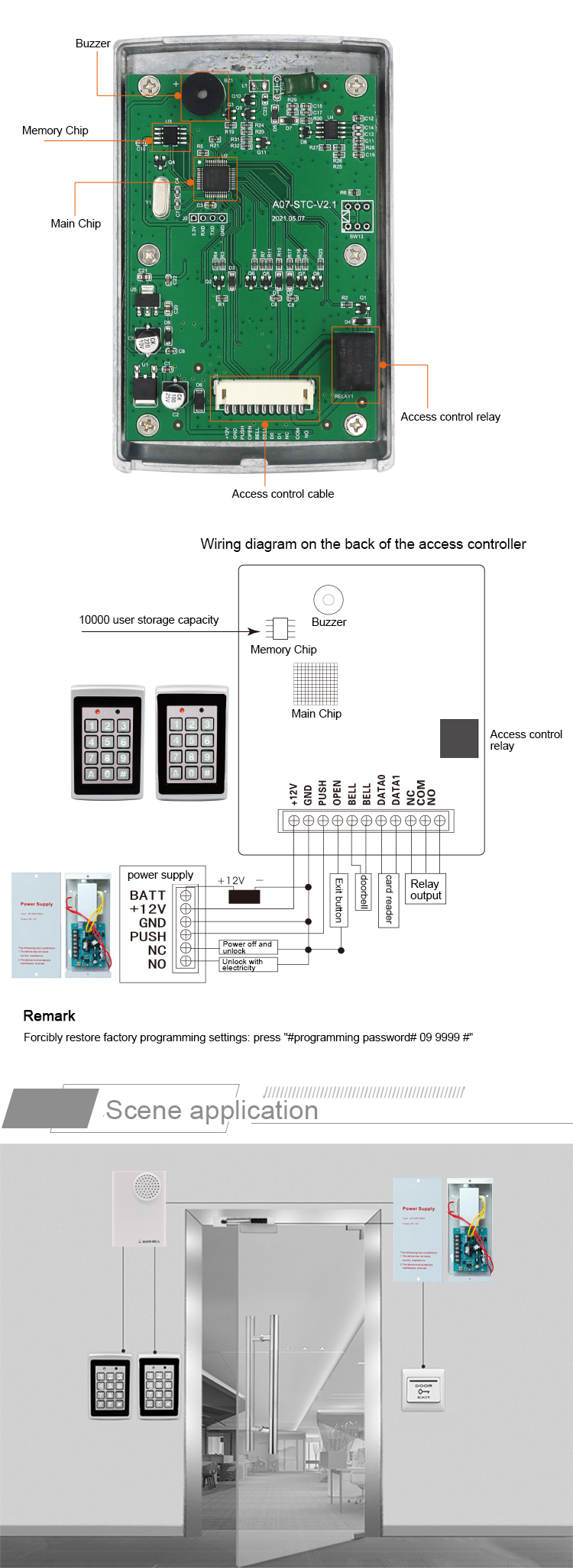

  • Wiring Diagram
  • Package

7612 Metal Standalone Access Control with 24V

Model No.: 7612-Cover-24V


What is a stand-alone control system?


Standalone access control is usually one or two small units wired directly

onto a door panel to control access to the door.

There is no need for a PC network and you don't have to secure every

 single door within your building, only those you wish to.


Simply say, all authorizations are handled through the machine itself.

It is not possible to view the data of the person entering and exiting.


The advantage is that the installation is particularly simple,

and the operation is also particularly easy to use.


Operating Voltage

DC24V

Relay output voltage

DC24V/2A

Operating temperature

-25°C-55°C

Relative humidity

10-65%

amount of users

10000 cards

public password

ID card, 125KHZ

card type

common password

Reading distance

one

Electric lock interface

one

external card reader

one, Wiegand26 format

Electrical switches

Can be set to read on, read off function

Automatically add card

After enabling this function, the new card will be automatically added after reading it, without affecting the use of previously added user cards


7612 Metal Standalone Access Control with 24V


7612 Metal Standalone Access Control with 24V

7612 Metal Standalone Access Control with 24V
