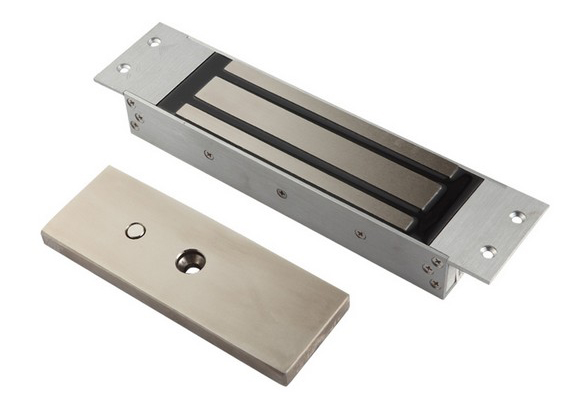

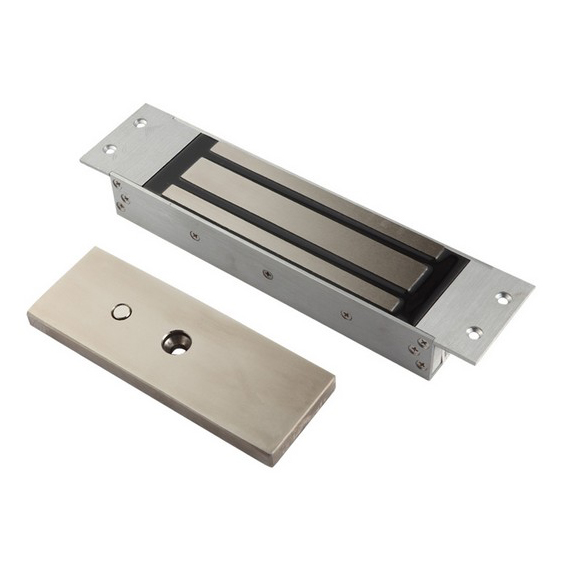

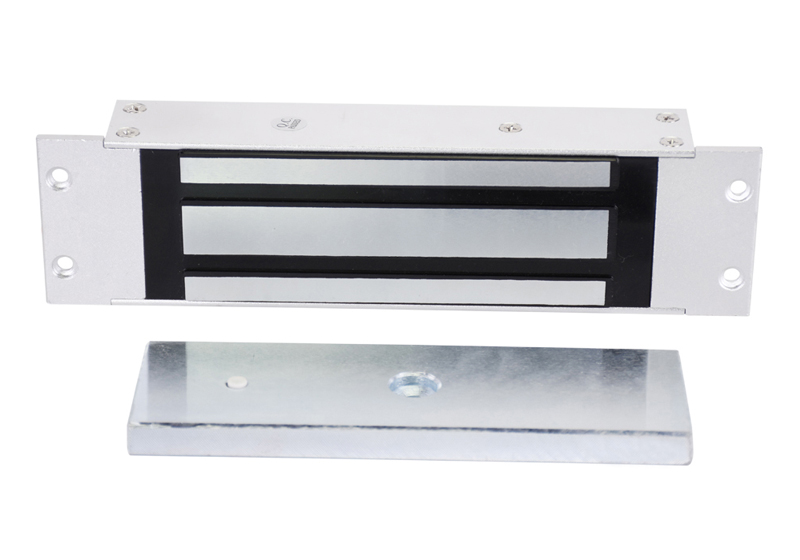

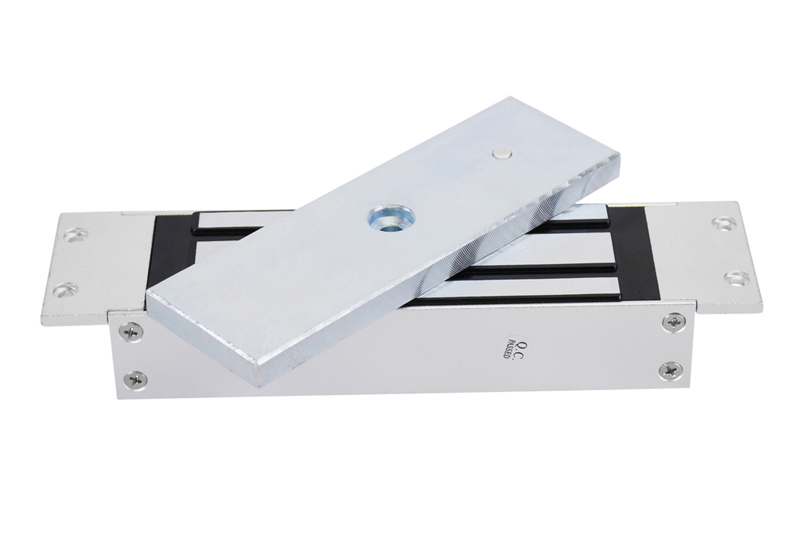

1200lbs Electric Magnetic Electromagnetic Lock Holding Force for Access Control

> Without indicator lights

> Voltage: DC12V and DC24V(adjustable)

> Holding Force: 500KG(1200Lbs)


  • Brand:

    S4A
  • Item NO.:

    EL-1200
  • Specifications

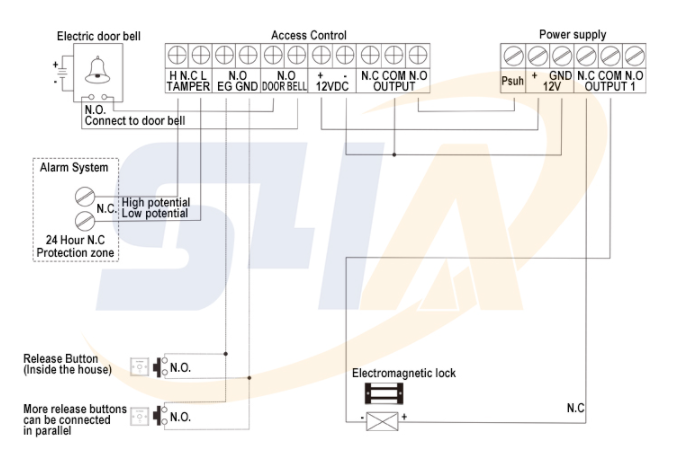

  • Wiring Diagram
  • Package

Single Door 500KG Magnetic Lock

Model No.: EL-1200


What is Electromagnetic Lock?
An electromagnetic lock, also known as a maglock, is a locking device that consists of an electromagnet and an armature plate. When the electromagnet is energized, it creates a magnetic field that attracts the armature plate, which locks the door or gate. The magnetic force generated by the electromagnet is strong enough to keep the door or gate locked, even under high stress or impact.

EL-1200

Without indicator lights

EL-1200S

With LED (Red only)

EL-1200SD

Built-in LED and door sensor

EL-1200ST

Built-in LED, door sensor, and time delay

EL-1200SZ

LED, door sensor, and Buzzer

Lock size

265Lx72Wx40H(mm)

Plate

185Lx60Wx13H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/420mA 24V/210mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg

Standard Packing

4pcs

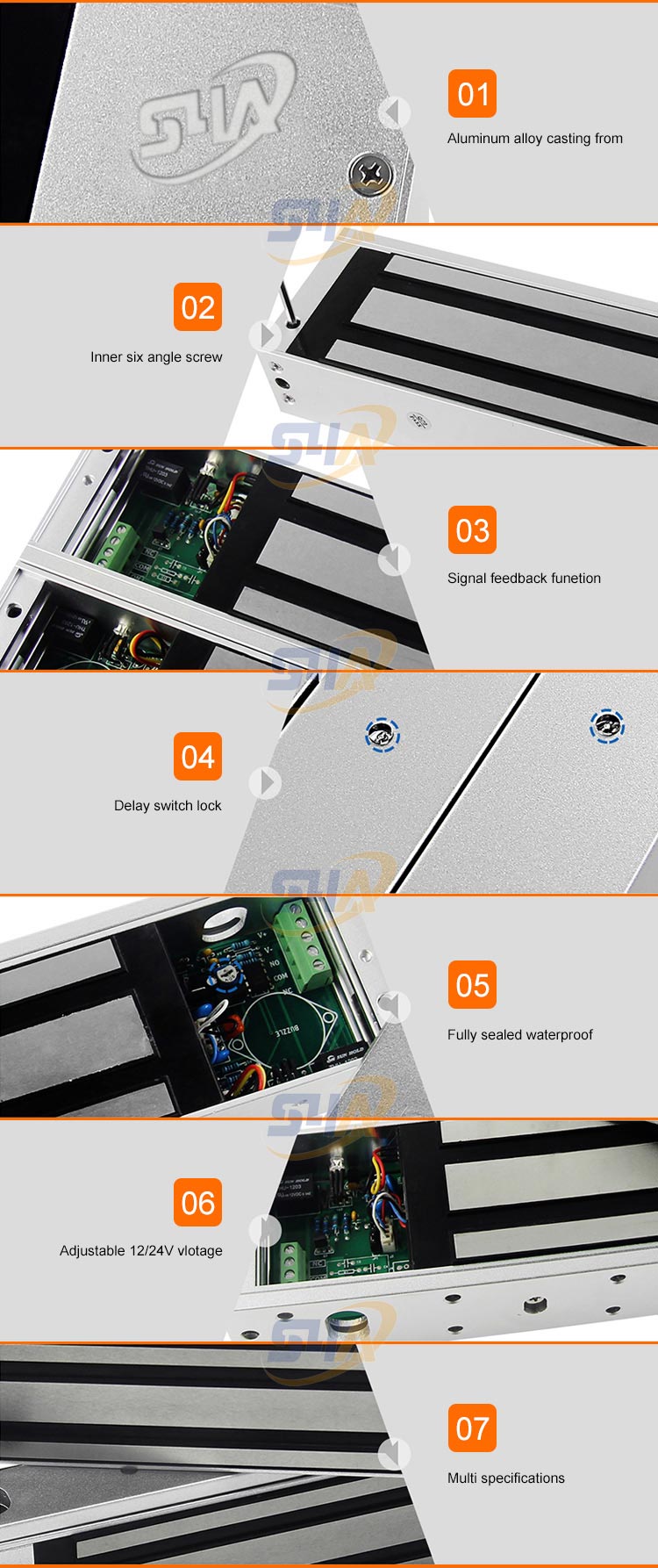

Electro Magnetic Door Lock

Electro Magnetic Door Lock

1200lbs Electric Magnetic Electromagnetic Lock Holding Force for Access Control

Model No.

Quantity/Carton

Gross Weight

Carton Size

EL-1200

6pcs

25.78KG

30x26x19cm

Electro Magnetic Door Lock
