>Product material: alloy die-casting lock body
>Adsorption distance: 4mm
>Door Magnetic signal: NO/NC/COM

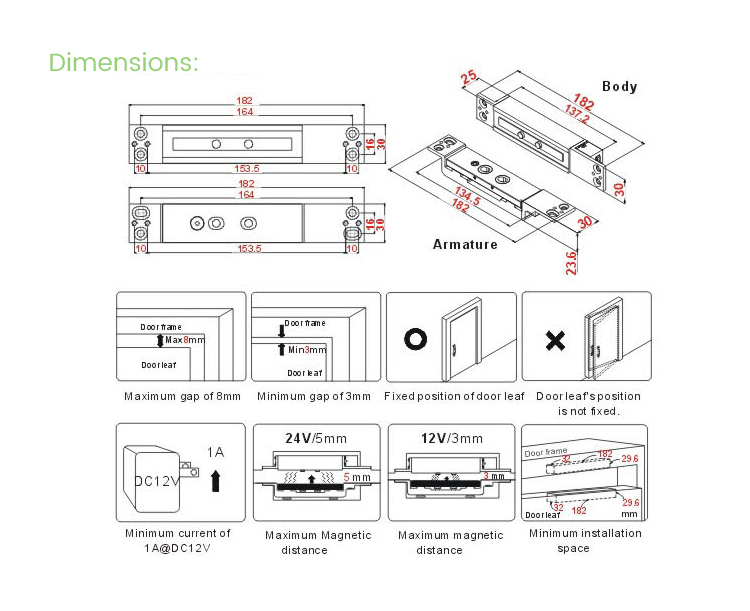

>Lock body size: 257L*30W*33H(mm)
>Embedded size: 142L*30W*33H(mm)
DC12V start 1.6A stable 0.22A
DC24V start 1A stable 0.13A
Brand:
S4AItem NO.:

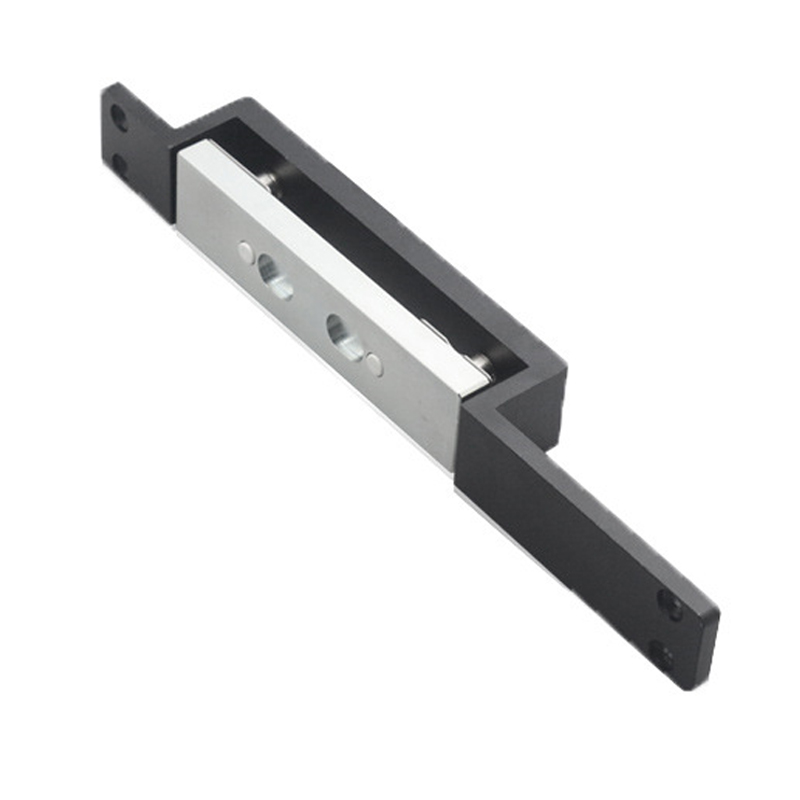

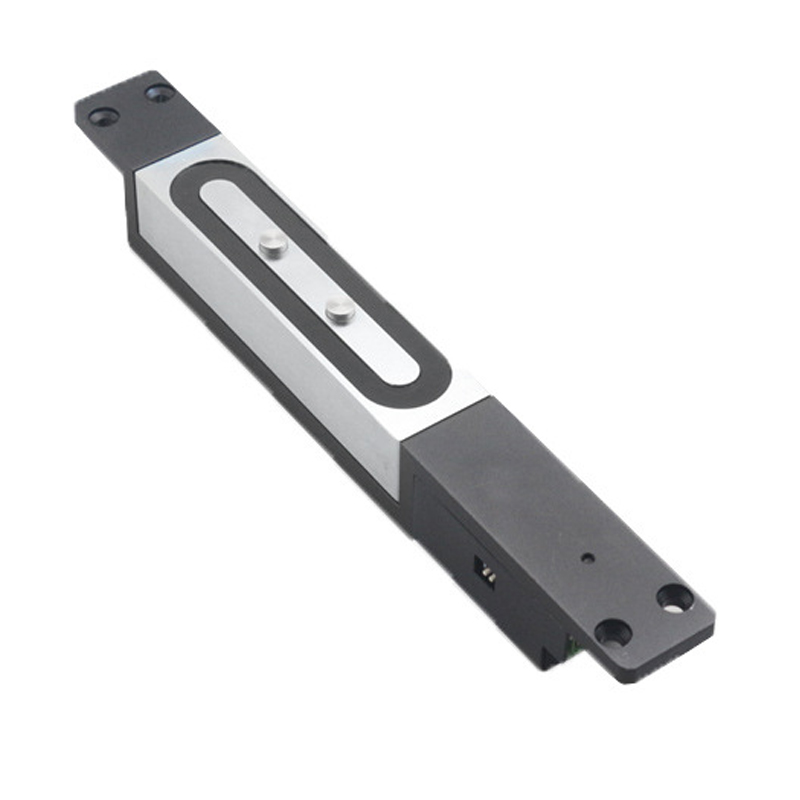

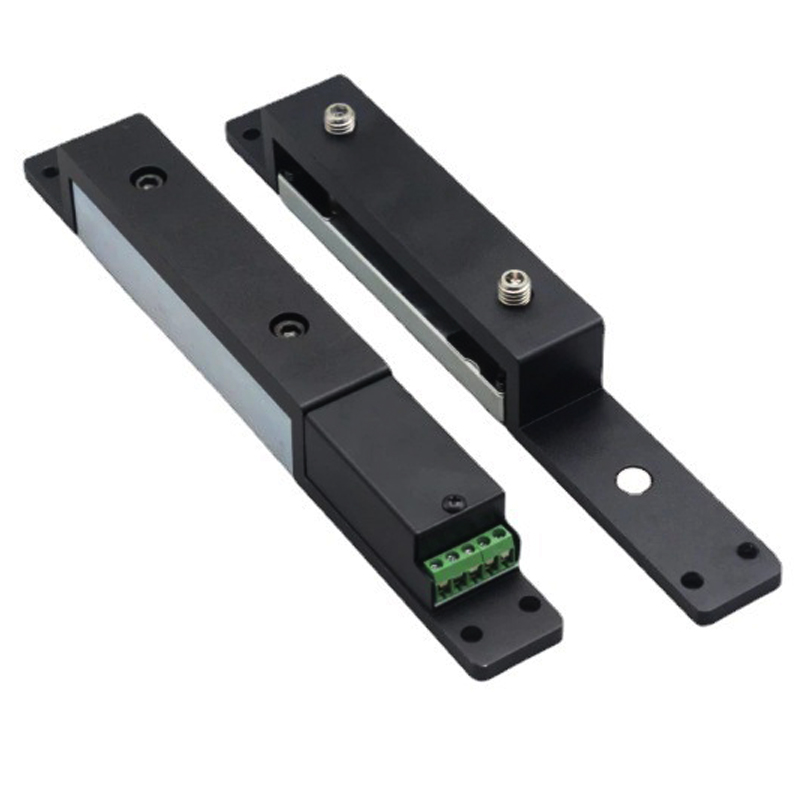

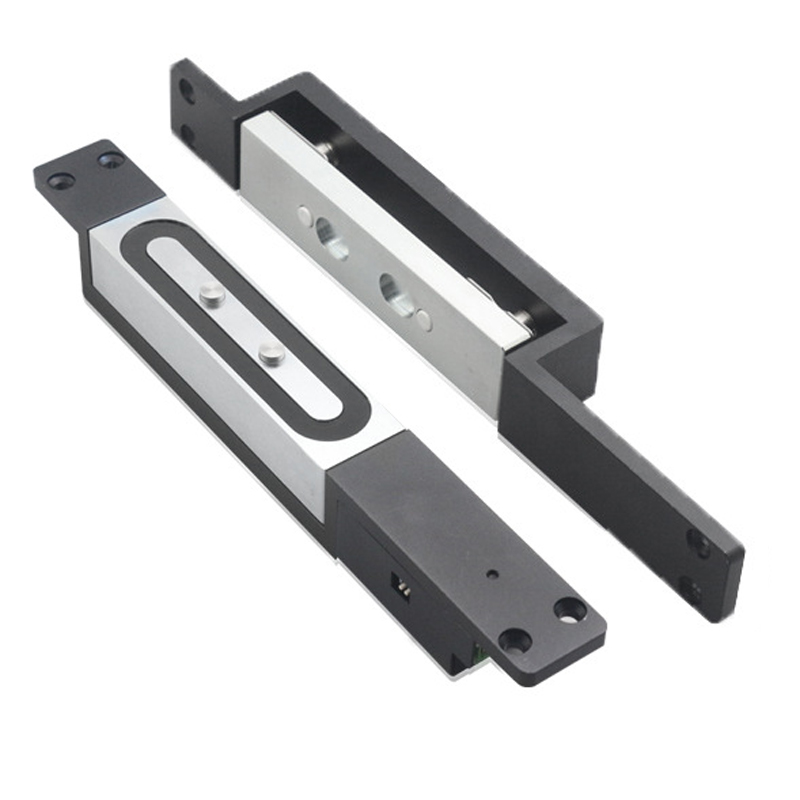

SL-1200Electric Shear Lock Fail-Safe with 2600lbs
Model No.: SL-1200
What is Electromagnetic Lock?
Electromagnetic locks are commonly used in access control systems, such as in commercial buildings, schools, hospitals, and government facilities. They provide a high level of security, as they are difficult to bypass or tamper with. They are also easy to install and operate, as they do not require complex wiring or mechanical components.
Product material | alloy die-casting lock body |
Adsorption distance | 4mm |
Door Magnetic signal | NO/NC/COM |
Lock body size | 257L*30W*33H(mm) |
Embedded size | 142L*30W*33H(mm) |
Ambient temperature | -40°C~+55°C |
Working voltage | DC12V~DC24V |
Working current | DC12V start 1.6A stable 0.22A |
DC24V start 1A stable 0.13A | |
Locking delay time | 0/3/6/9 seconds adjustable |
Electric Shear Lock, Fail-Safe Operation, 1500-lb Holding Force, 12 or 24 VDC Operation | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
SL-1200 | 267x30x34mm | 10pcs | 17.74KG | 39x25x22cm |
S4A Instruction_SL-1200_Electric Shear Lock Fail-Safe With 2600lbs
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
