/Magnet Lock 500KG / 1100 LBS of Magnetic Holdings Force Lock 12/24V, LED Indicator

New Products

Magnet Lock 500KG / 1100 LBS of Magnetic Holdings Force Lock 12/24V, LED Indicator

> Without indicator lights

> Voltage: DC12V and DC24V

> Holding Force: 280KG (600Lbs)

> Lock Size: 250Lx48.5Wx25H(mm)

> Current Draw: 12V/500mA 24V/250mA


  • Brand:

    S4A
  • Item NO.:

    EL-600
  • Specifications

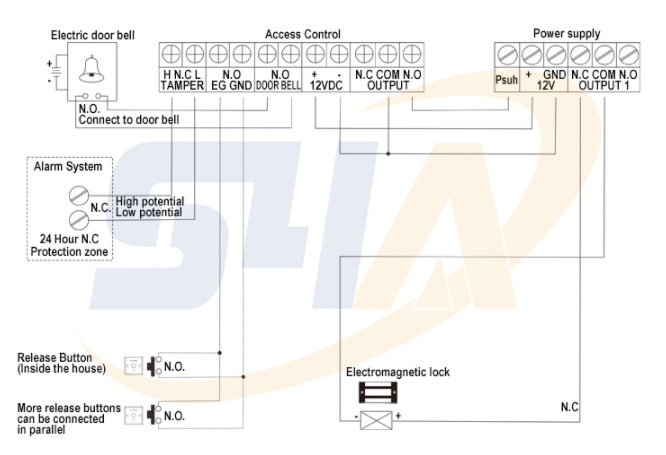

  • Wiring Diagram

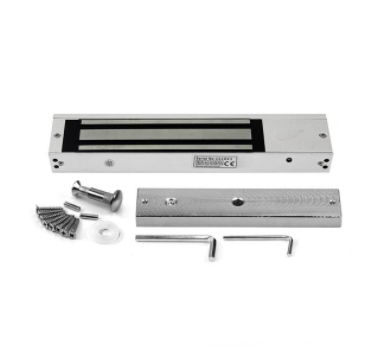

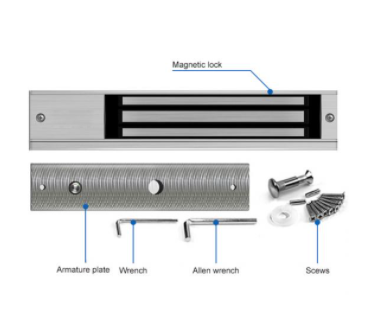

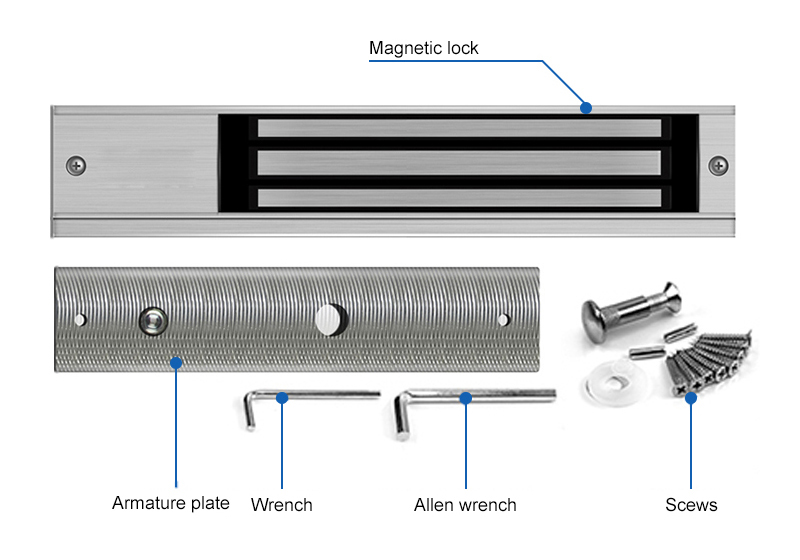

  • Package
  • Download

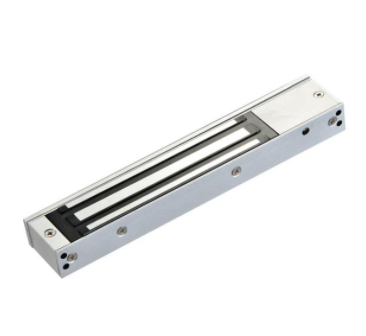

Electric Magnetic Lock for Swing Gate

Model No.: EL-600


An electromagnetic lock, also known as a maglock, is a locking mechanism that consists of an electromagnet and an armature plate. The electromagnet, which is mounted on the door frame, generates a magnetic field that attracts the armature plate, which is mounted on the door, into contact with the electromagnet, thereby locking the door. The lock is released when the current to the electromagnet is cut off, allowing the armature plate to disengage from the electromagnet and the door to be opened. Electromagnetic locks are often used in high-security applications where the door needs to be secured with a strong and reliable locking mechanism.

EL-600

Without indicator lights

EL-600S

With LED (Red only)

EL-600SD

LED, door sensor

EL-600ST

LED, door sensor, Time delay

EL-600SZ

LED, door sensor, Buzzer

Lock size

250Lx48.5Wx25H(mm)

Plate

180Lx38Wx11H(mm)

Holding Force

280kg (600Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/500mA 24V/250mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2kg

Standard Packing

10pcs

Electric Magnet Door Lock


Electric Magnet Door Lock

Magnet Lock 500KG / 1100 LBS of Magnetic Holdings Force Lock 12/24V, LED Indicator

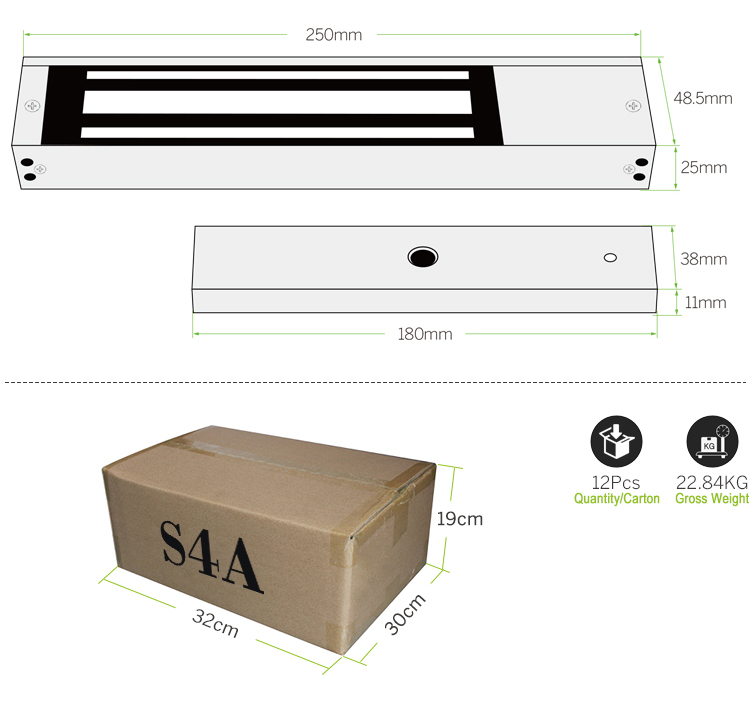

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-600

250x48.5x25mm

12pcs

22.84KG

32x30x19cm

Electric Magnet Door Lock

S4A Instruction_EL-600_Electric Magnetic Lock for Swing Gate
