Wireless Rfid Card Reader Door Access

> 433MHz Rolling Code technology

> PIN Length: 1-6 digits

> Wiegand output: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra low power consumption

  • Brand:

    S4A
  • Item NO.:

    WK1
  • Specifications

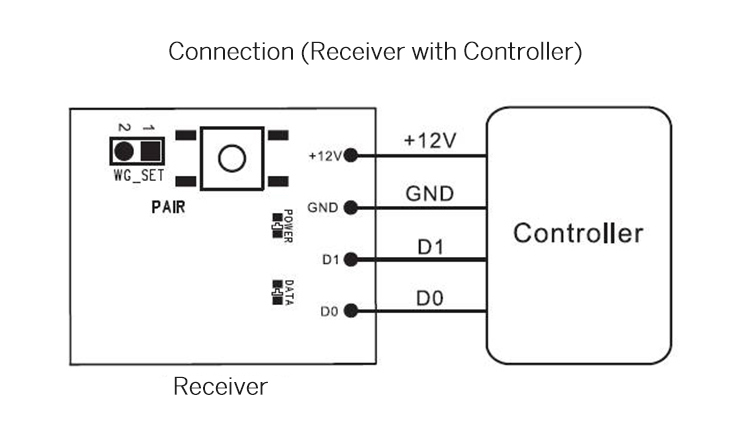

  • Wiring Diagram
  • Package

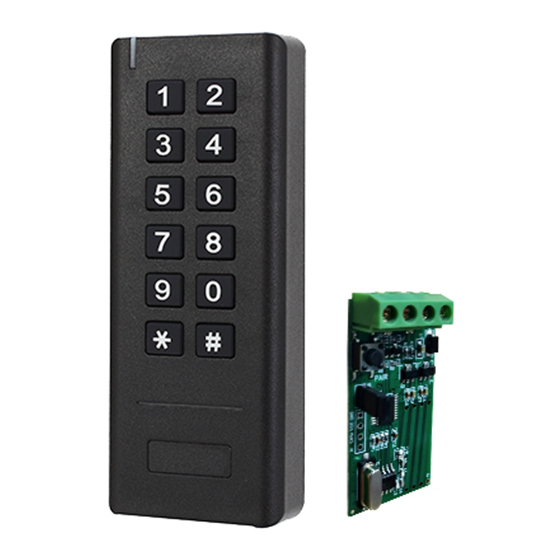

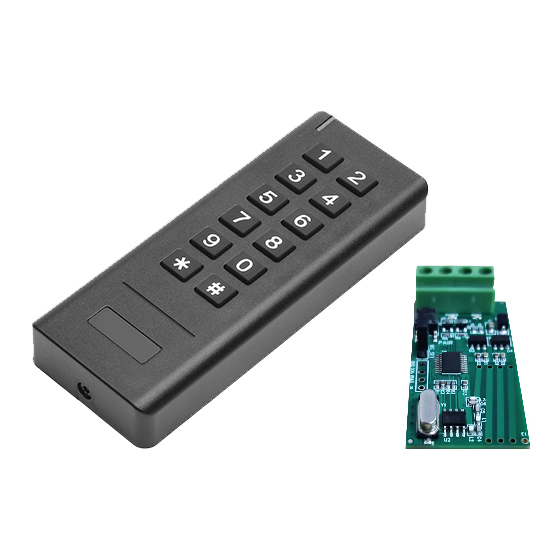

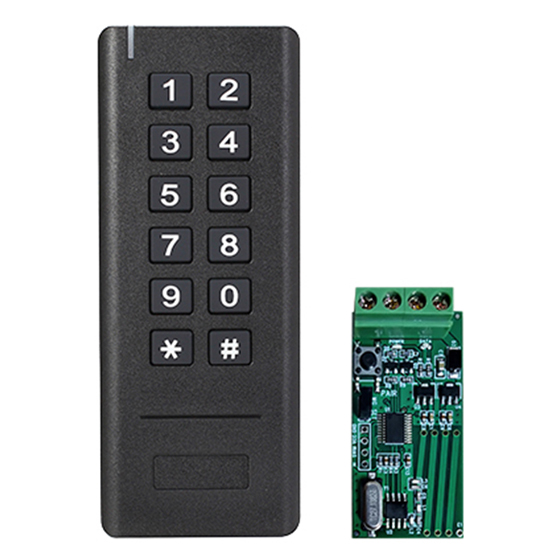

Wireless RFID card reader door access

Model No.: WK1


WK1 is a Wireless Keypad reads PIN only, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

> 433MHz Rolling Code technology

> PIN Length: 1-6 digits

> Programmable Wiegand output of the Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra-low power consumption


Wireless Keypad

PIN Length

1-6 digits

Operating Voltage

3 units of AAA batteries

Idle Current

≤5uA

Working Current

≤45mA

Reading Distance

≤3cm

Communication Frequency

433MHz

Communication Distance

30m Maximum

Operating Temperature

-20°C~60°C (-4°F~140°F)

Operating Humidity

0%~86%

Physical

ABS

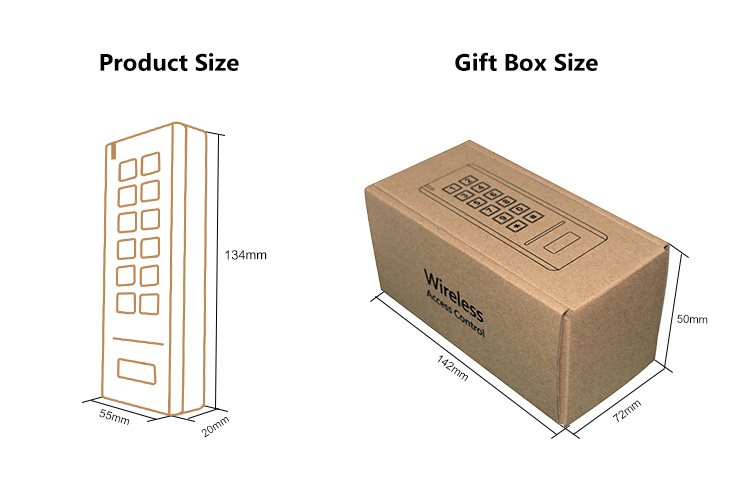

Dimensions

L134 x W55 x H20 (mm)

Net Weight

100g

Receiver

Operating Voltage

12V DC

Working Current

≤15mA

Communication Frequency

433MHz

Wiegand Output Format

26 bits Or 34 bits (Default is 26 bits)

Operating Temperature

-20°C~60°C (-4°F~140°F)

Operating Humidity

0%~86%

Dimensions

L25 x W50 (mm)

Net Weight

10g

Wireless Button
(Optional Accessory)

Operating Voltage

1unit of 2023 Lithium battery

Idle Current

≤2uA

Working Current

≤20mA

Communication Frequency

433MHz

Communication Distance

20m Maximum

RFID card readerRFID card reader

RFID card reader

RFID card reader
