Wireless RFID Access Reader

> 433MHz Rolling Code technology

> Card type: 13.56MHz Mifare card

> Programmable Wiegand output of the

> Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra-low power consumption

> Waterproof, conforms to IP65

  • Brand:

    S4A
  • Item NO.:

    WR1-W
  • Specifications

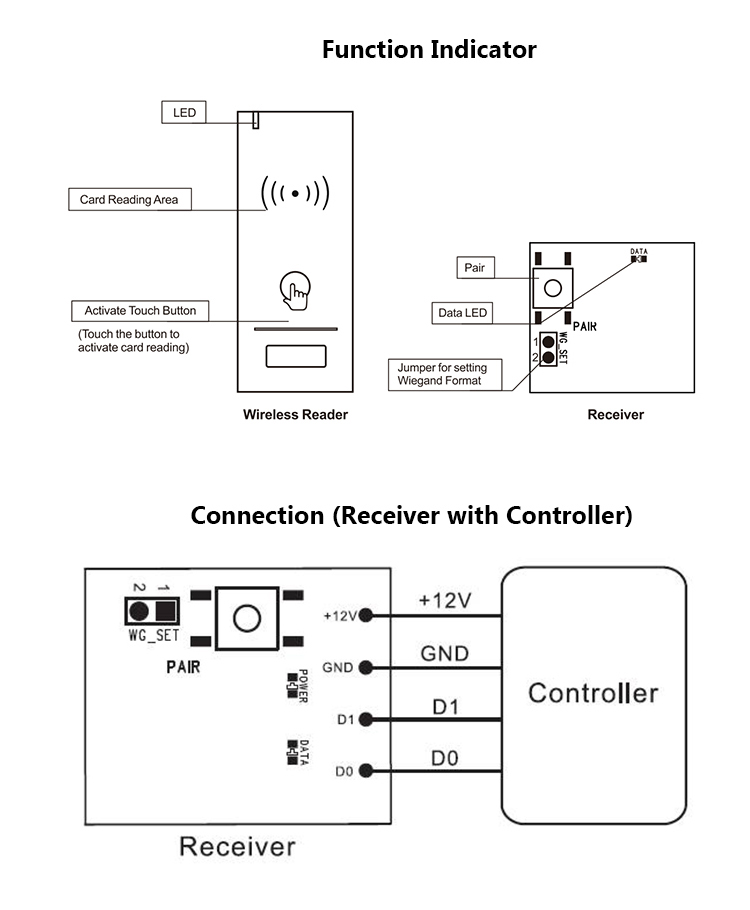

  • Wiring Diagram
  • Package

Wireless RFID Access Reader

Model No.: WR1-W


Features:

> 433MHz Rolling Code technology

> Card type: 13.56MHz Mifare card

> Programmable Wiegand output of the

> Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra-low power consumption

> Waterproof conforms to IP65


Wireless Reader

Card Type

13.56MHz Mifare card

Operating Voltage

3 units of AAA batteries

Idle Current

≤5uA

Working Current

≤35mA

Reading Distance

≤3cm

Communication Frequency

433MHz

Communication Distance

30m Maximum

Operating Temperature

-20'C ~ +60'C (-4'F ~ +140'F)

Operating Humidity

0% ~ 86%

Index of Protection

IP65

Colour

Black, White optional

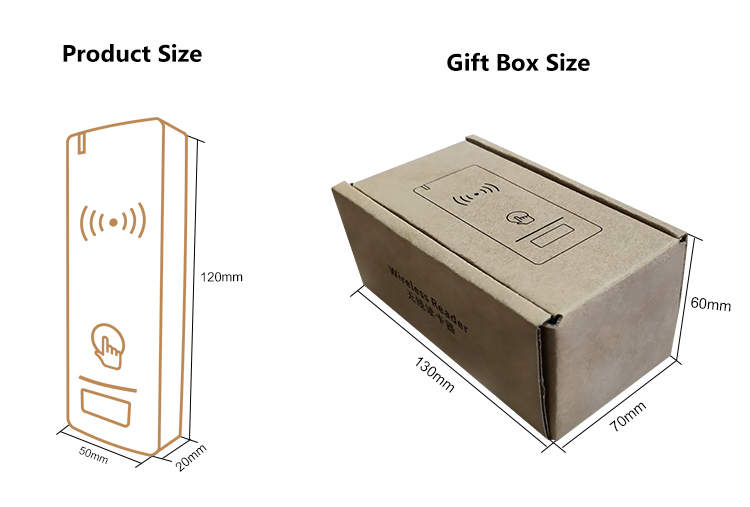

Dimensions

L120 * W50 * H20(mm)

Net Weight

88g

Receiver

Operating Voltage

12V DC

Working Current

≤15mA

Communication Frequency

433MHz

Wiegand Output Format

26 bits Or 34 bits (Default is 26 bits)

Operating Temperature

-20'C ~ +60'C (-4'F ~ +140'F)

Operating Humidity

0% ~ 86%

Dimensions

L25 * W50(mm)

Net Weight

10g

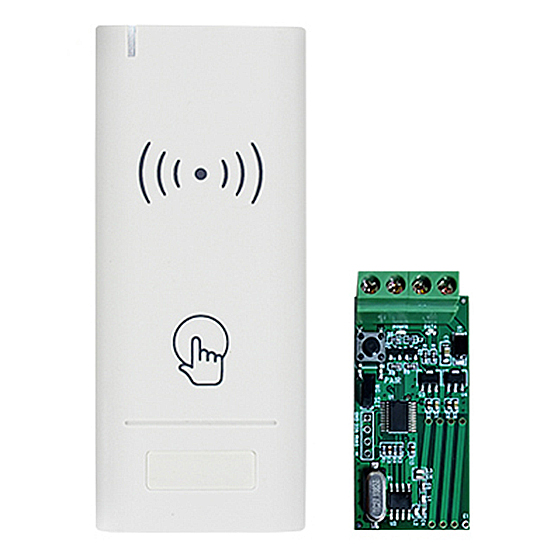

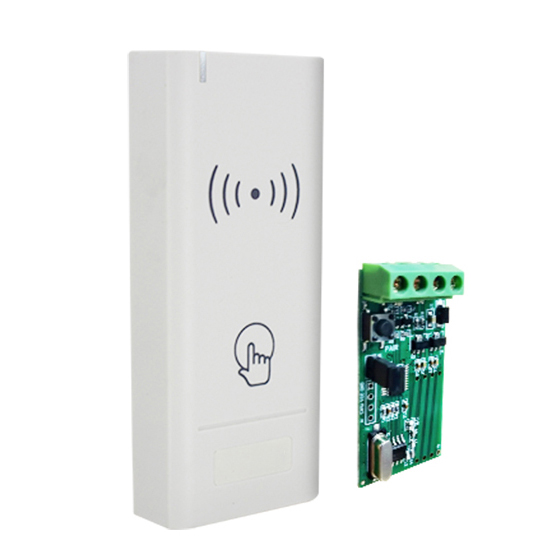

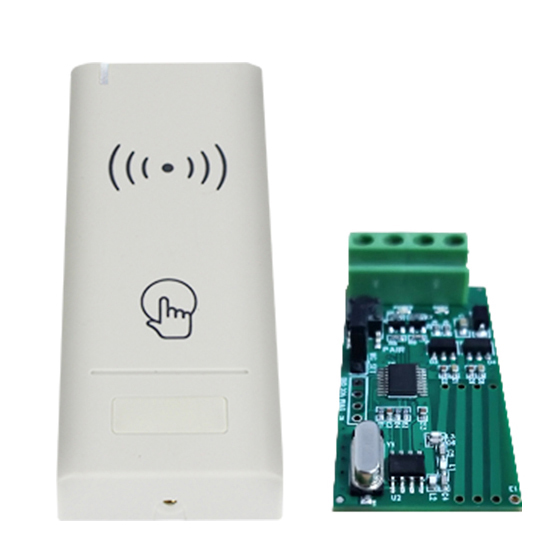

The wireless Reader Kit includes a Wireless Reader and a Receiver. 433MHz Rolling Code of encryption algorithm guarantees higher-secure, programmable Wiegand output of the Receiver makes it can work with most Wiegand controller in the world. Super-strong 3M stickers provide a simple way of installing the Wireless Reader.

 Because of ultra-low power consumption, the battery of Wireless Reader can work as long as 6 months.

(bases on 30 times/day)
