No Need wires from Access Controller to Keypad to Exit Push button
> User Capacity: 500users support RFID+Pincode
> Communication Frequency: 2.4G
> Mini Controller: DC12V
> Wireless Keypad: 3units of AAA batteries
> Wireless Exit Button: 2023 Lithium battery
> Communication distance 15M Maximum
Brand:
S4AItem NO.:

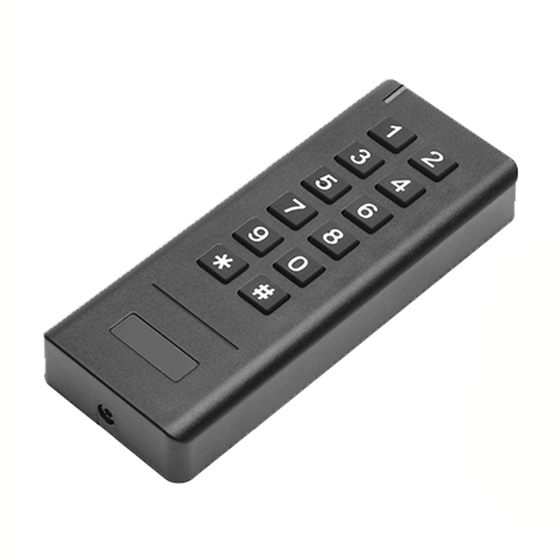

SK3 BlackWireless Keypad Access Control
Model No.: SK3 Black

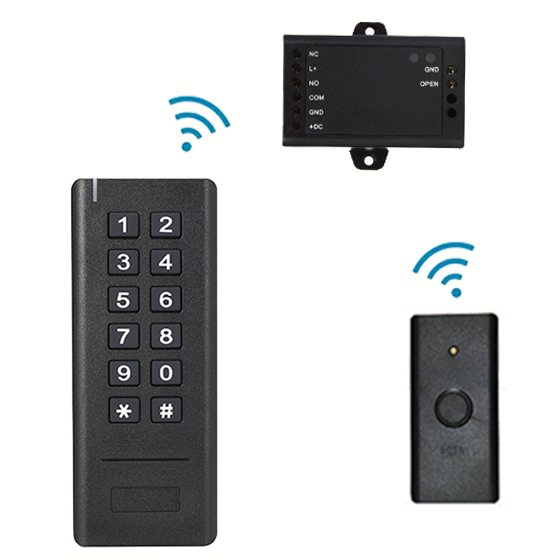

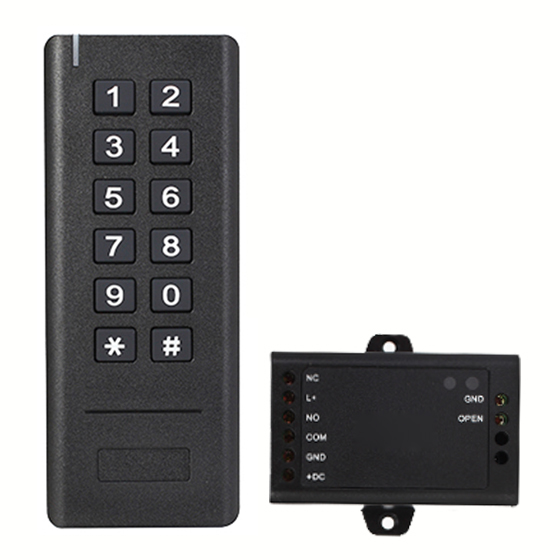

The SK3 is a single door wireless access control, consists of a wireless keypad, a mini controller, and a wireless exit button.
TEA + Rolling Code of the encryption algorithm and the split design guarantees higher-secure.
User Capacity | 500 |
PIN Length | 4~8 Digits |
Card Type | 125KHz EM Card |
Operating Voltage | |
Wireless Keypad | 3units of AAA batteries |
Mini Controller | 12V DC |
Wireless Exit Button | 2023 Lithium battery |
Wireless Keypad:<10uA | |
Current | Mini Controller:<20Ma |
Idle Current | Wireless Exit Button:<10uA |
Wireless Keypad:<20mA; | |
Working Current | Mini Controller:<40mA |
Wireless Exit Button:<10uA | |
Communication Frequency | 2.4G |
Communication Distance | 15m Maximum |
Relay Contact Load | 2Amp Maximum |
Environment | Indoor |
Operating Temperature | -20℃~60℃(-4℉~140℉) |
Operating Humidity | 0%~86%RH |
Physical | ABS Shell |
Dimensions | Wireless Keypad: L135 x W54 x D19(mm) |
Mini Controller: L65 x W54 x D19(mm) | |
Wireless Exit Button: L83 x W40 x D16(mm) | |
Unit Weight | Wireless Keypad: 100g |
Mini Controller: 50g | |
Wireless Exit Button: 35g | |
Shipping Weight | 220g |
S4A User Manual SK3_Wireless Keypad Access Control
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
