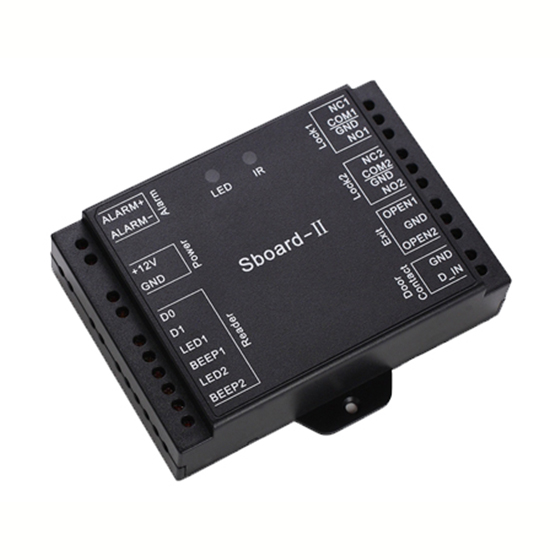

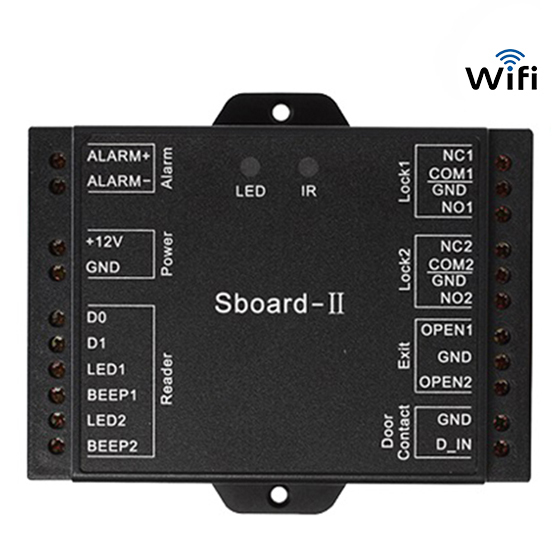

WIFI mini access controller double 2 doors access control system

> User Capacity: 2100users with 2relays

> A compatible reader with Wiegand 26-37 bits output

> Communicate with mobile by WIFI / GPRS

> Working Voltage: 9-24V

> Material: ABS housing

> APP download available for both Android and IOS version by searching WiControl

Remotely open the door within your home network or remote from anywhere

  • Brand:

    S4A
  • Item NO.:

    Sboard-II WIFI
  • Specifications

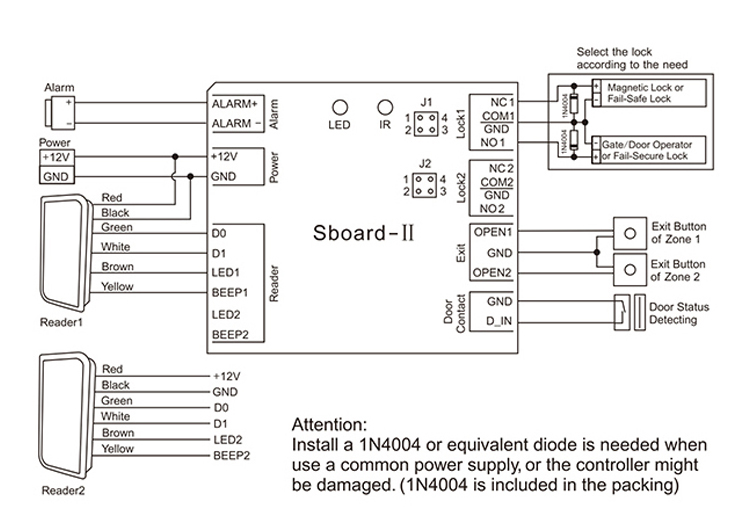

  • Wiring Diagram
  • Package

WIFI double door Access Controller

Model No.: Seaboard-II WIFI


User Capacity

2,100

Zone 1

2,000

Zone 2

100

Operating Voltage

9~24V DC

Idle Current

<30mA

Idle Current (With Wifi)

<100Ma

Relay

Adjustable Relay Output Time

1~99 Seconds (5 seconds default)

Lock Output Load

5 Amp Maximum

Wiegand Interface

Input

Wiegand 26~37 bits

Output

Wiegand 26~37 bits (for user transfer)

Environment

Indoor

Operating Temperature

-40℃ ~ 60℃ (-40℉ ~ 140℉)

Operating Humidity

0~90%RH

Physical

ABS Shell

Colour

Black

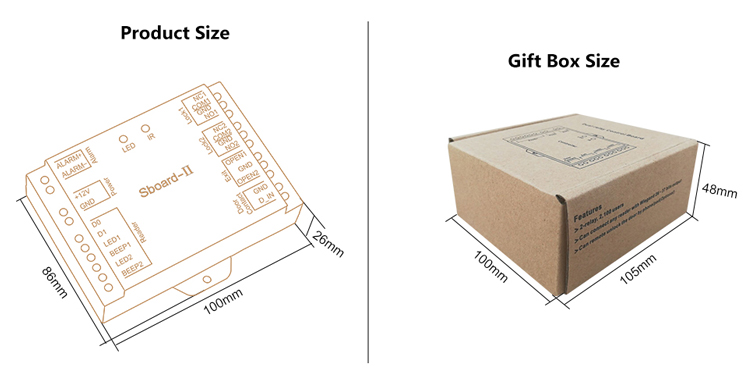

Dimensions

L100 x W86 x D26(mm)

Unit Weight

110g

Shipping Weight

180g


> 2,100 users, user data can be transferred

> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs

> Can connect with any reader with Wiegand 26~37 bits output

> Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output

> Support Master Card function

> Support set principal card

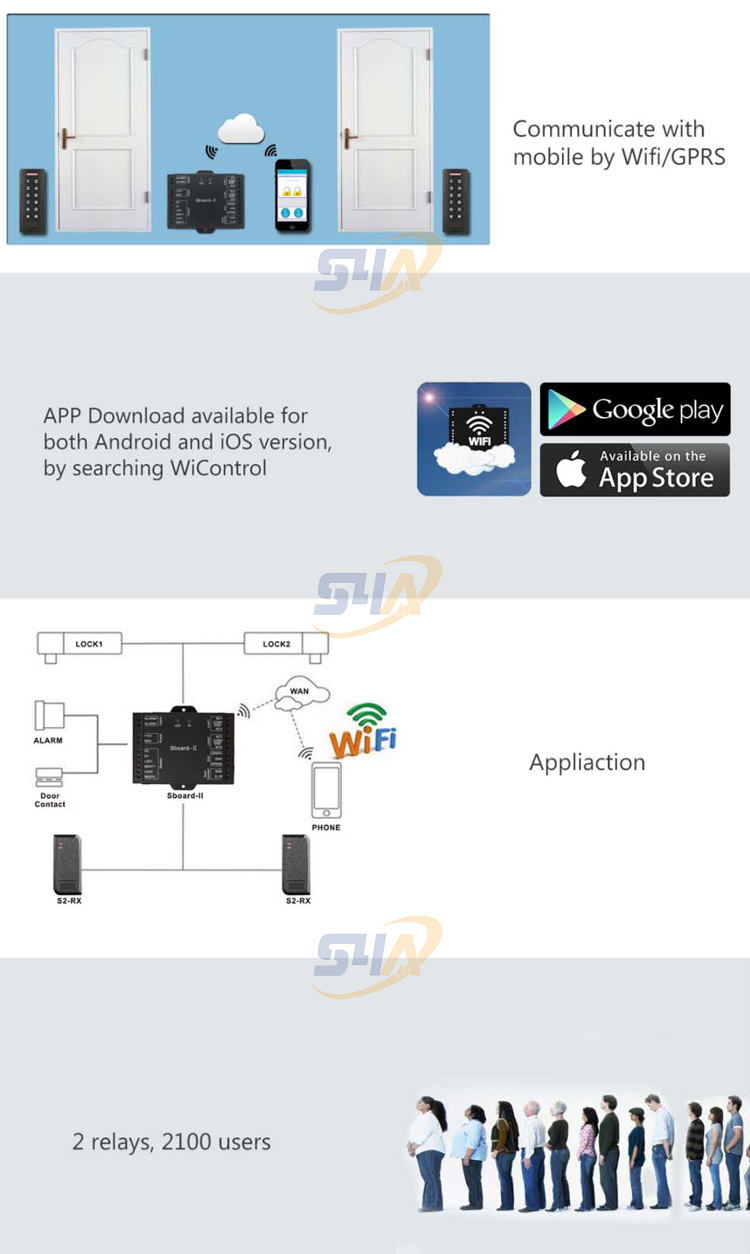

> Can communicate with mobile by Wifi/GPRS

> Remotely open the door within your home network or remotely from anywhere you can get internet access with your smartphone or tablet

WIFI double door Access Controller


Board-II Wifi is a Wifi controller, with a Wifi module built-in, through the App installed in the mobile devices, users can open the door wherever they can access the internet.

Besides, it can also work as a traditional standalone dual-relay controller, work with any Wiegand 26~37 bits output reader to control 2 doors.

WIFI double door Access Controller

WIFI double door Access Controller

WIFI double door Access Controller
