> Metal Case, anti-vandal
> Waterproof, conform to IP66
> Card Type: 125KHz EM & HID Cards/Fobs
> Wiegand Format: Wiegand 26 default
> Keypad Transmission: 4 bits
> Reading range: 4~8 cm
Brand:
S4AItem NO.:

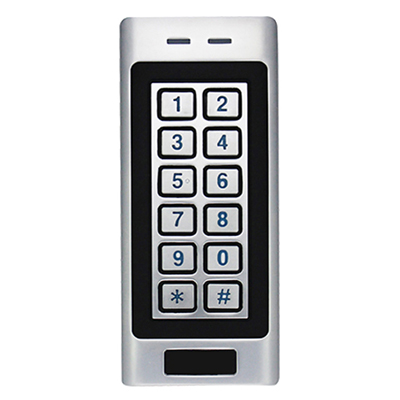

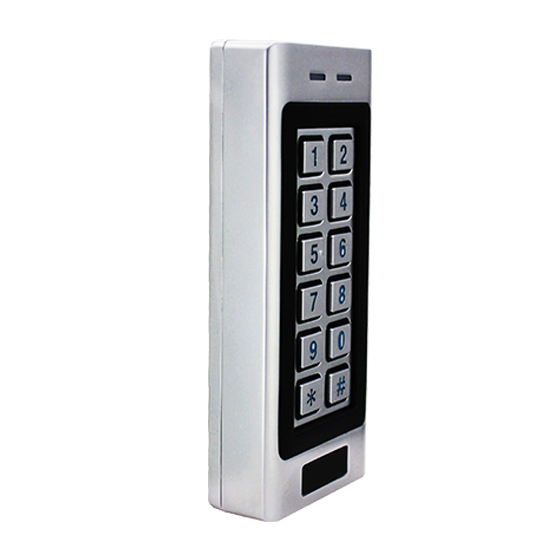

SK4-RWiegand Reader Dual frequency access reader(EM+HID)
Model No.: SK4-R EM+HID
SK4-R ID+HID is of digital backlit, supports to read 125KHz EM & HID cards.
It is a metal case, Wiegand output keypad, with integrated proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
> Metal Case, anti-vandal
> Waterproof, conform to IP66
> Card Type: 125KHz EM & HID Cards/Fobs
> Wiegand Format: Wiegand 26 default (26~37 available upon request)
> Keypad Transmission: 4 bits (8bits or virtual card number format are available upon request)
> Reading range: 4~8 cm
Frequency | 125KHz |
Card Type | EM & HID Cards/Fobs |
Read Range | 4~8 cm |
Standby Current | < 35mA |
Operating Voltage | 9~18V DC |
Wiegand Output Format | Wiegand 26 bits (factory default) |
26~37 bits available upon request | |
Keypad Transmission Format | 4 bits (factory default) |
8 bits or virtual card number format are available upon request | |
Operating Temperature | -40℃ ~ 60℃ |
Operating Humidity | 0% RH ~ 96% RH |
Index of Protection | IP66 |

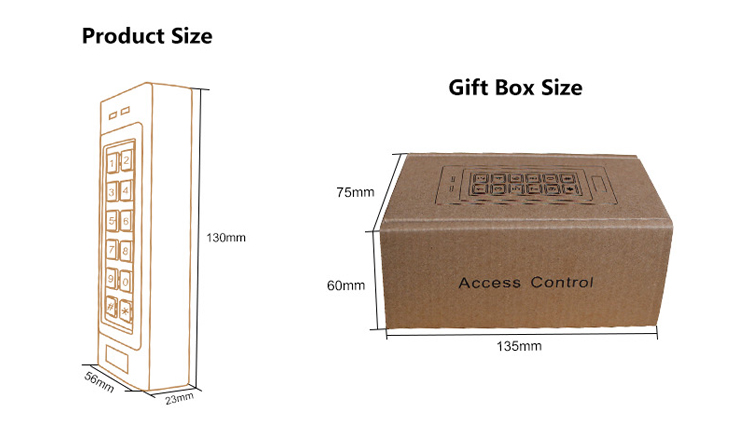

Dimension | 13.0L x 5.6W x 2.3H (cm) |
Net Weight | 500g |
Shipment Weight | 650g |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
