Keyless Entry RFID KeyPad support EM+HID+MF cards

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Programmable Keypad Transmission: 4 bits,8bits or virtual card number format

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control

  • Brand:

    S4A
  • Item NO.:

    SK5-RX
  • Specifications
  • Wiring Diagram
  • Package

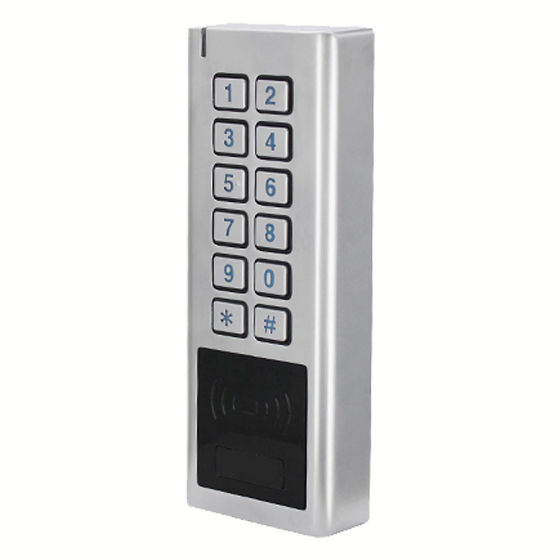

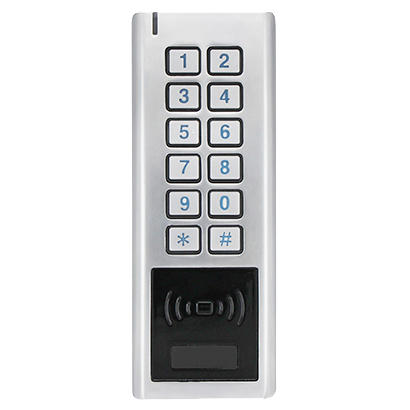

Keyless Entry RFID KeyPad support EM+HID+MF cards

Model No.: SK5-RX 125KHz&13.56MHz


SK5-RX is a Wiegand output keypad, with an integrated proximity reader.

It can read 125KHz EM & HID cards and 13.56MHz Mifare Cards.

Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.

> Waterproof conforms to IP66

> Wiegand 26~37 bits output (default: 26bits)

> Programmable Keypad Transmission: 4 bits,8bits or virtual card number format

> Card type: Hid card, EM card & Mifare card

> Reading range: 3~8cm

> External LED Control & External Buzzer Control


Operating Voltage

9~18V DC

Frequency

125KHz & 13.56MHz

Card Type

125KHz - EM & Hid Card

13.56MHz - Mifare Card (ISO 14443A Compatible)

Keypad Transmission

4 bits (factory default), 8bits or virtual card number format can be set

Reading Distance

7 CM

Output Format

Wiegand 26~37 bits

Operating Temperature

-40℃ ~ 60℃ (-40°F ~ 140°F)

Standby Current

< 35mA

Operating Humidity

0%~95% RH

Index of Protection

IP66

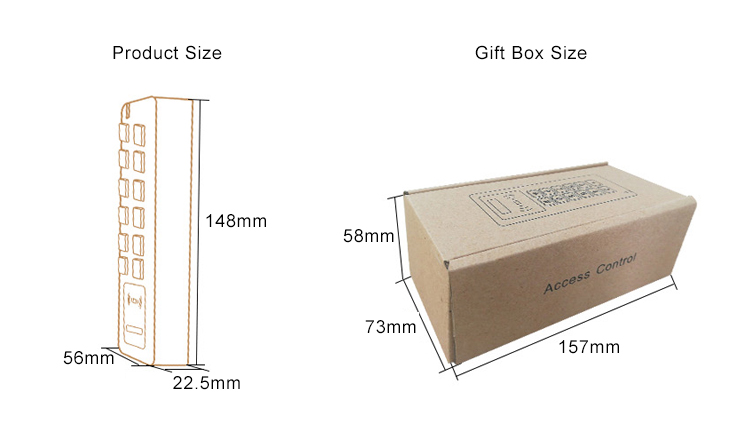

Dimensions

14.8L x 5.6W x 2.25H (cm)

Colour

Silver

Keyless Entry

Keyless Entry

Keyless Entry
