>Interface parameters: baud rate 9600N81, output WG66
>Scanning device: baud rate 9600N81, output ASCII text format
Brand:
S4AItem NO.:

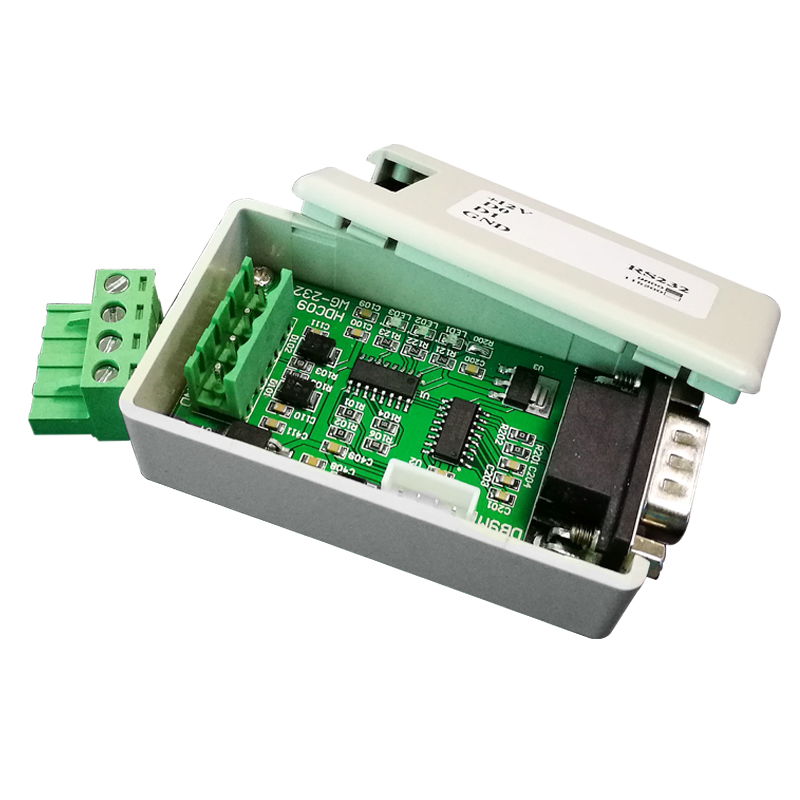

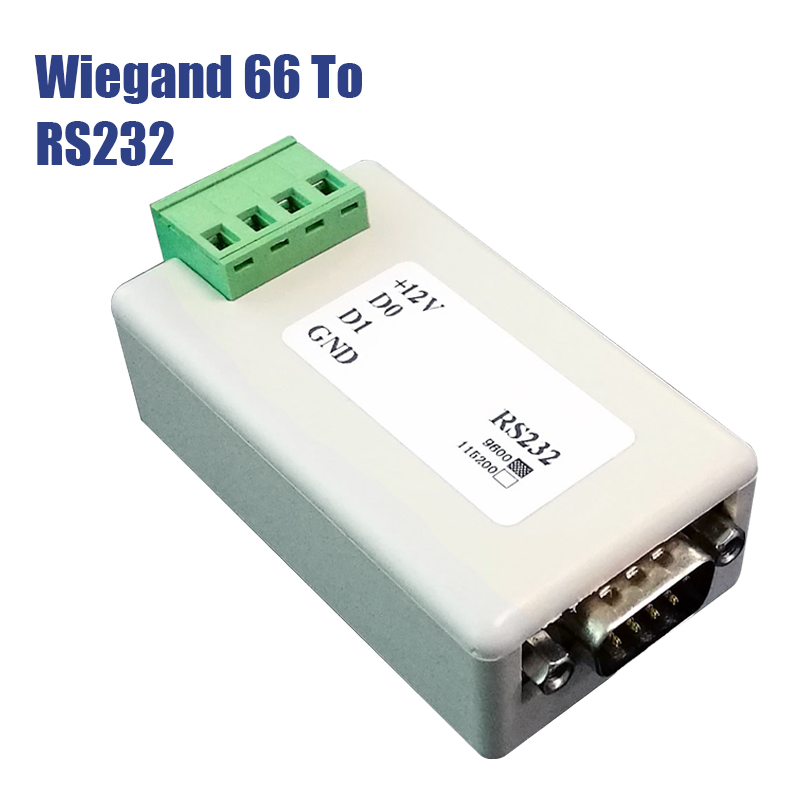

WG66-RS232Wiegand 66 Converter into RS232
Model No.: WG66-RS232

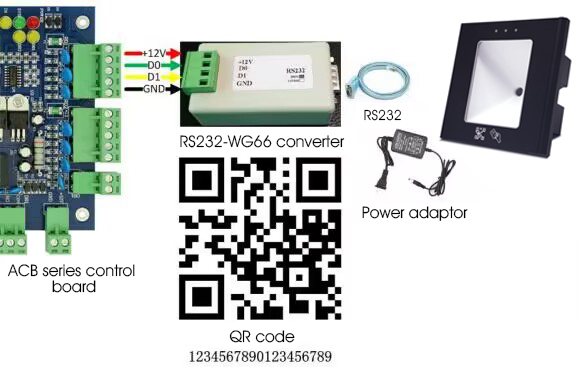

This product is suitable for converting barcode and QR code scanners into Wiegand
signals of access control boards. It can scan up to 20 digits.
Note: The access control board and access control software need to support WG66 format.
Interface parameters: baud rate 9600N81, output WG66;
Scanning device: baud rate 9600N81, output ASCII text format;
Access control motherboards that support the WG66 protocol, such as micro-cultivation (WGACCESS,
Adroitor, ADCT), and central control, can be used;
Power supply: 9-15V/50mA power supply, can directly use the 12V power supply of the Wiegand interface of
the access control board;
Shell size: 71x41x23, (including terminals: 77x41x29)
S4A Datesheet_Wiegand 66 Converter into RS232
> USB converter input voltage: 9-15V 50mA> USB converter output voltage: 5V 200mA> USB interface protocol: HID
for access control system
RS232 to RS485 Interface Serial Adapter Converter
> Wiegand Converter to TCP/IP> Dimensions: 83x71x25mm> The aluminum alloy shell is used for easy installation and use
The converter uses a 9~15V/50mA power supply, and can directly use the 12V power supply of the Wiegand input port of the access controller, with a static working current of about 20mA, or an external 9~12v power adapter.
>You can change Internal code using Wiegand channel,>Interface Wiegand of Keypad to PC using Wiegand to RS232 port converter.
>Voltage:12V/DC>Power:<0.2W>Interface:3 channel wiegand,1 channel TTL
The extender does not distinguish between receiving and sending, and it can be used if the wiring is correctPower supply is required at both ends of the transceiver, power supply 9~24V/30mAThe signal delay is about 50-150ms
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
