S4AItem NO.:

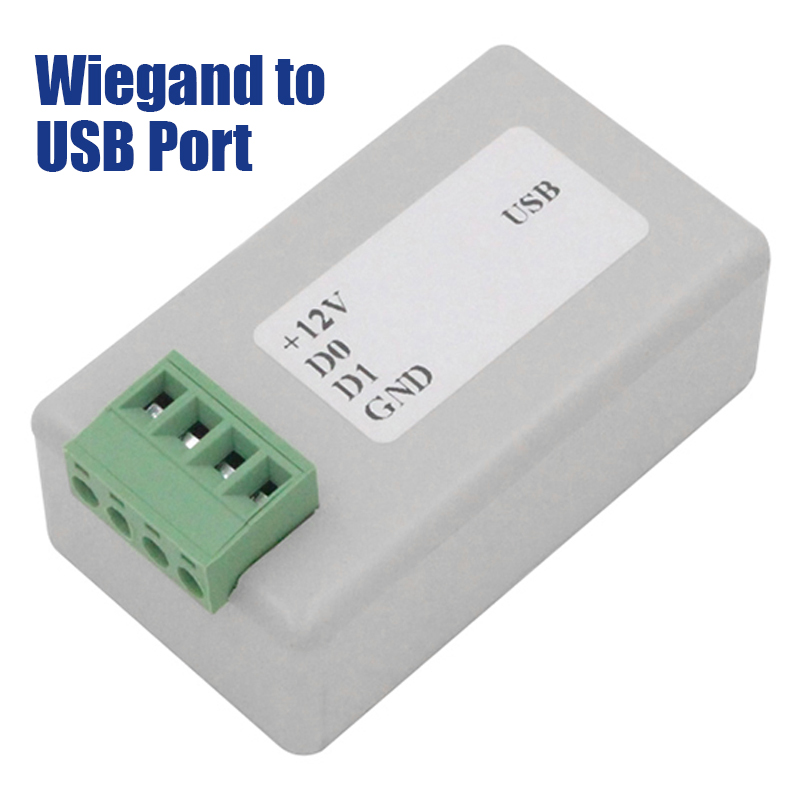

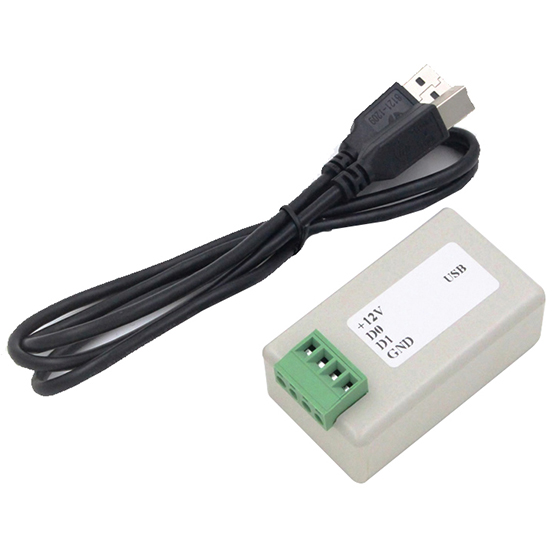

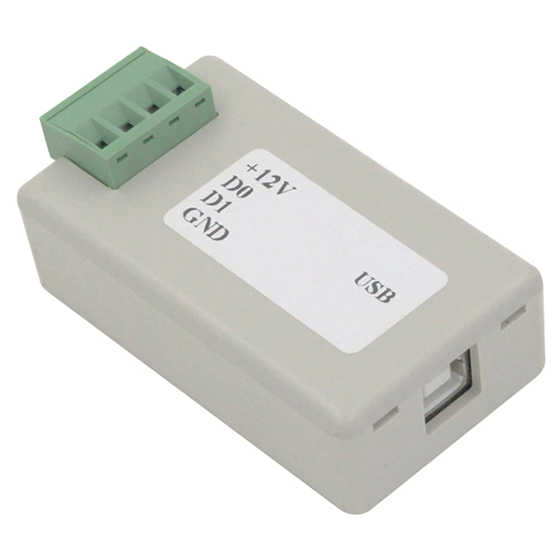

WG-USBWiegand 26/34 converter into USB port
Model No.: WG-USB
Model No. | WG-USB-U | WG-USB-D |
Communicate way | unbidirectional | bidirectional |
Output Digits | 10 hexadecimal | 10 hexadecimal |
16 hexadecimal | 16 hexadecimal |
Product description:
WG-USB communication converter is designed for hand-held testing tool or embedding into products manufactured by third-parties,
crypton and S4A had widely use for our RFID and access control system solution.

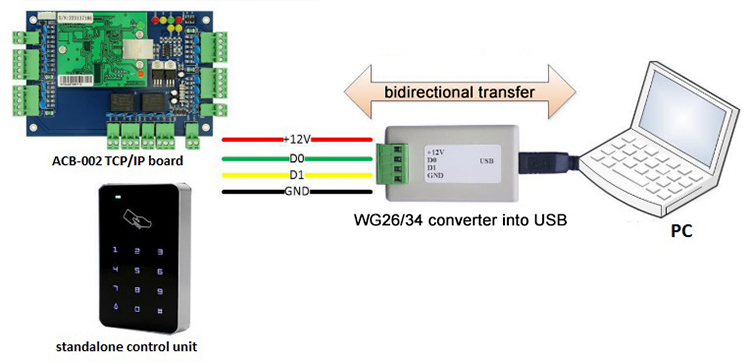

The converter support double-way transmission, it can transfer Wiegand 26bit or Wiegand 34bit data to USB data,
also can transfer USB data to Wiegand 26bit or Wiegand 34bit data, standard Wiegand output 26bit data in default
(Wiegand 34bit and other format as optional), and standard USB output format.
Technical parameters:
Operating voltage: DC 9V-12V;
Compatible with USB standards,corresponding to Wiegand all the way out;
With an external watchdog to prevent the crash.
Communication Format:
Baud Rate 9600 N 8 1
1. WG26 or WG34 input
4 byte number: 1010795316 = (hex) 3C3F8334
WG26 input (hexadecimal) 3F8334
WG34 input (hexadecimal) 3C3F8334
Wiegand 26/34 Converter into USB Port | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
WG-USB | 40pcs | 6.71KG | 41X39X21cm |
S4A Datesheet_Wiegand 26/34 Converter into USB Port
> USB converter input voltage: 9-15V 50mA> USB converter output voltage: 5V 200mA> USB interface protocol: HID
RS232 to RS485 Interface Serial Adapter Converter
> Wiegand Converter to TCP/IP> Dimensions: 83x71x25mm> The aluminum alloy shell is used for easy installation and use
The converter uses a 9~15V/50mA power supply, and can directly use the 12V power supply of the Wiegand input port of the access controller, with a static working current of about 20mA, or an external 9~12v power adapter.
>You can change Internal code using Wiegand channel,>Interface Wiegand of Keypad to PC using Wiegand to RS232 port converter.
>Interface parameters: baud rate 9600N81, output WG66>Scanning device: baud rate 9600N81, output ASCII text format
>Voltage:12V/DC>Power:<0.2W>Interface:3 channel wiegand,1 channel TTL
The extender does not distinguish between receiving and sending, and it can be used if the wiring is correctPower supply is required at both ends of the transceiver, power supply 9~24V/30mAThe signal delay is about 50-150ms
