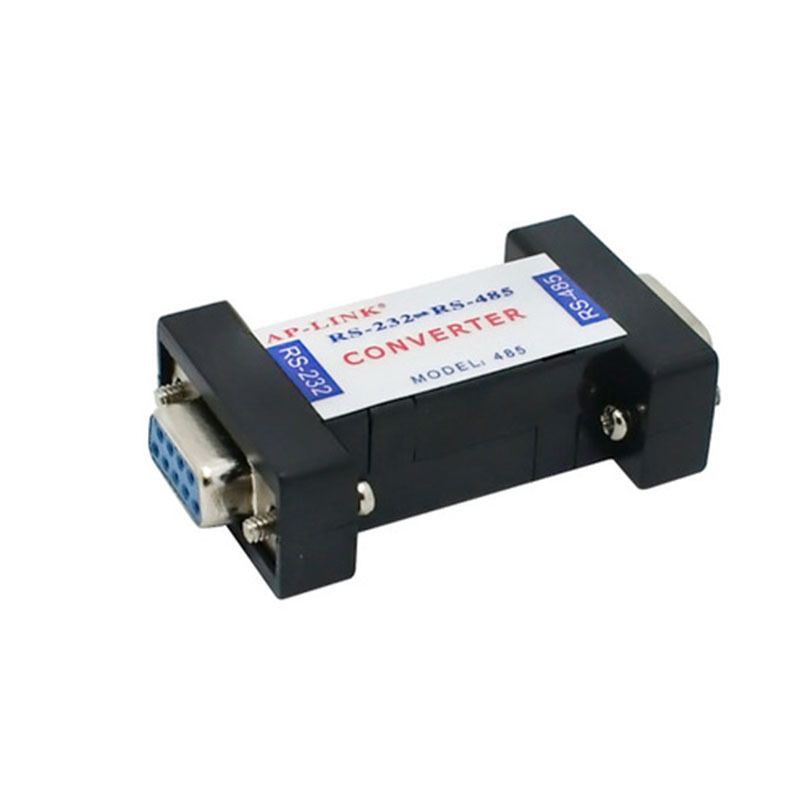

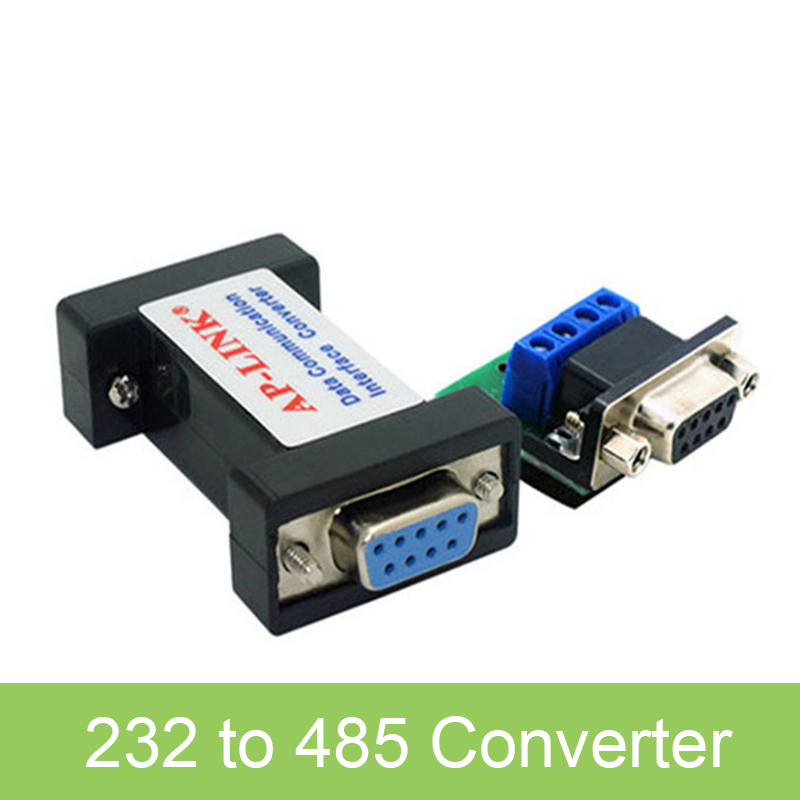

RS232 to RS485 Interface Serial Adapter Converter
Brand:
S4AItem NO.:
C485Item Name: RS232 / RS485 Conveter
Model No.: C485
Specifications and Features:

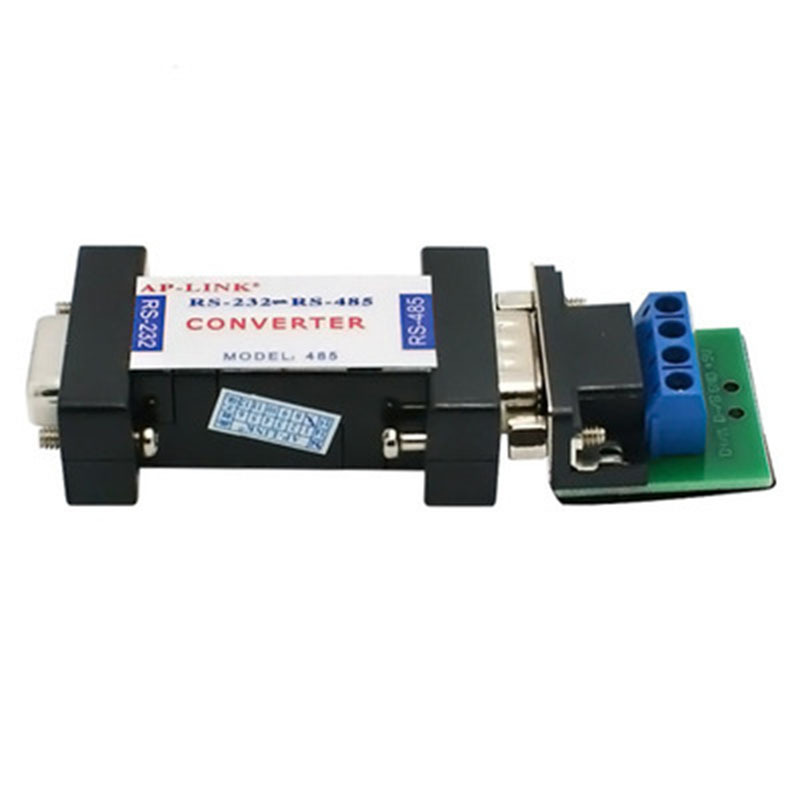

100% brand new and high quality RS232 to RS485 Converter Adapter w/3P terminal board
It is widely used in industrial automation, door safe, all-in one-card, car parking, ATM, bus charge, eatery sell
Compatible with | EIA/TIA RS232 & RS485 standard |
Interface RS232 side | DB9 female connector |
Interface RS485 side | DB9 male connector with optional terminal board telecommunication agreement |
Work environment | -10℃ ~ 86°C |
relative humidity | 5% to 95% |
Working mode | aAsynchoronous, half-duplex,differential transmission |
Transmission media | Common wire,double wire or UTP or Shielding line |
Transmission rate | 300-115200bps,which is capable of applying between host computers host computer |
Transmission distance | RS485 max.1200m,RS232 side max.5m |
S4A Datesheet_RS232 / RS485 Conveter
> USB converter input voltage: 9-15V 50mA> USB converter output voltage: 5V 200mA> USB interface protocol: HID
for access control system
> Wiegand Converter to TCP/IP> Dimensions: 83x71x25mm> The aluminum alloy shell is used for easy installation and use
The converter uses a 9~15V/50mA power supply, and can directly use the 12V power supply of the Wiegand input port of the access controller, with a static working current of about 20mA, or an external 9~12v power adapter.
>You can change Internal code using Wiegand channel,>Interface Wiegand of Keypad to PC using Wiegand to RS232 port converter.
>Interface parameters: baud rate 9600N81, output WG66>Scanning device: baud rate 9600N81, output ASCII text format
>Voltage:12V/DC>Power:<0.2W>Interface:3 channel wiegand,1 channel TTL
The extender does not distinguish between receiving and sending, and it can be used if the wiring is correctPower supply is required at both ends of the transceiver, power supply 9~24V/30mAThe signal delay is about 50-150ms
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
