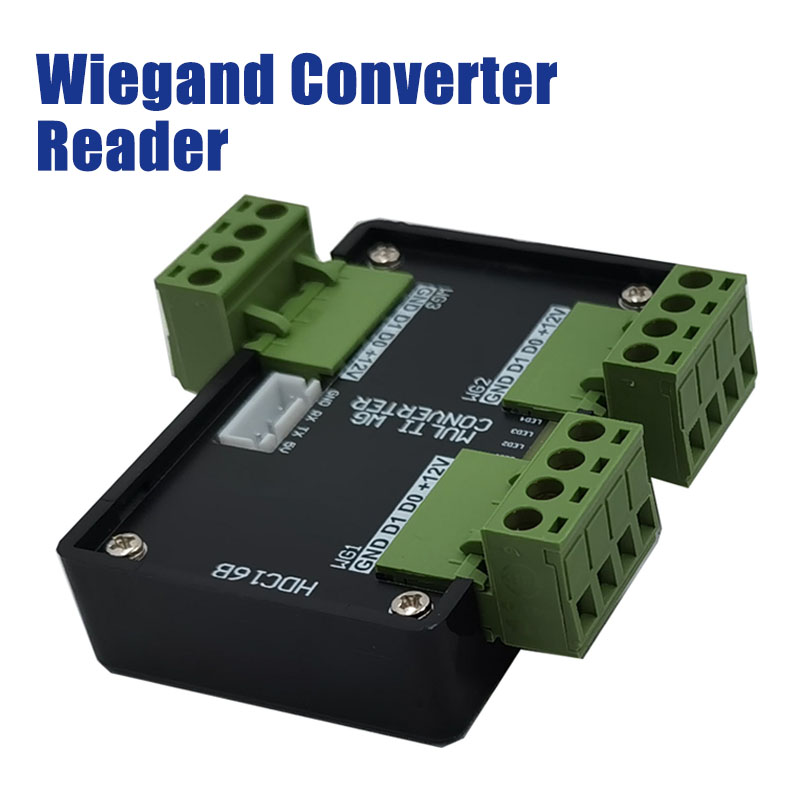

HDC16B2 To 1 Dual Way Wiegand Converter Reader
Model No.: HDC16B
Application

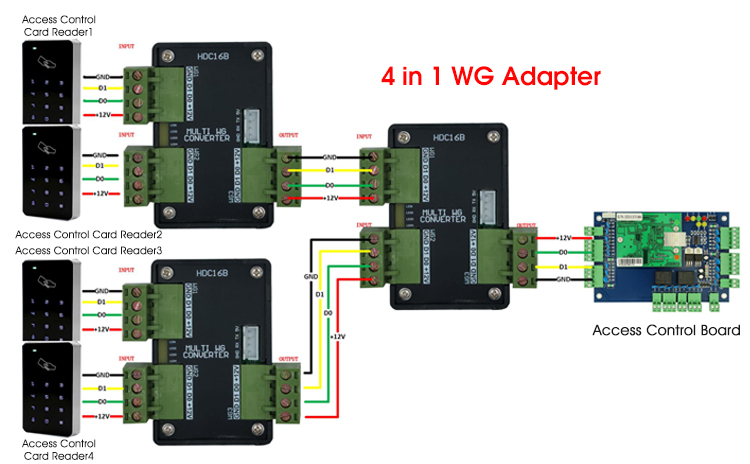

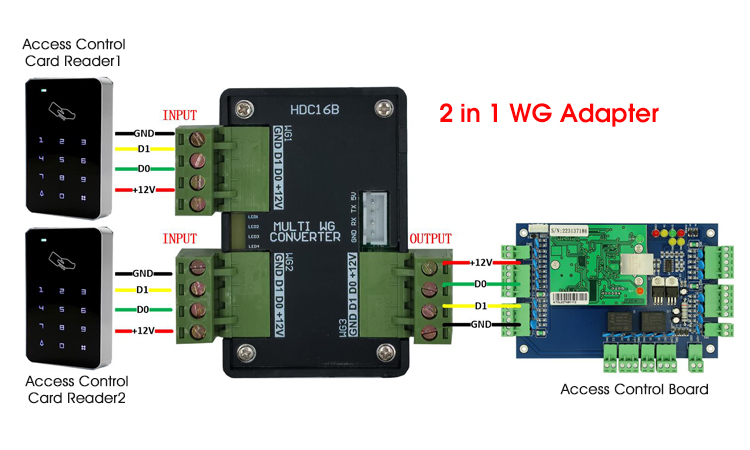

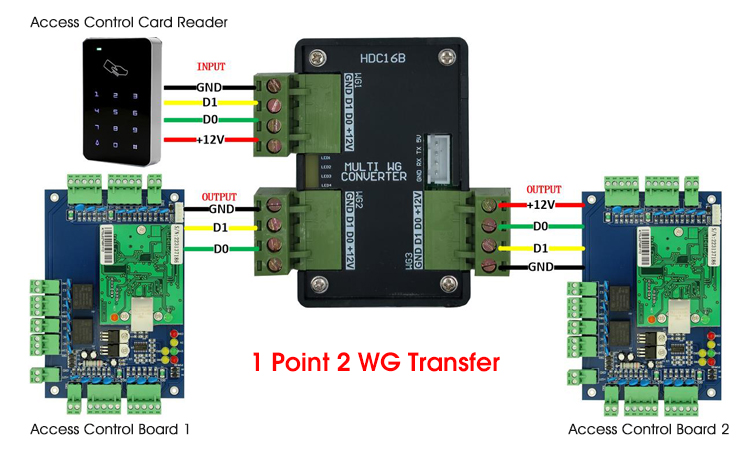

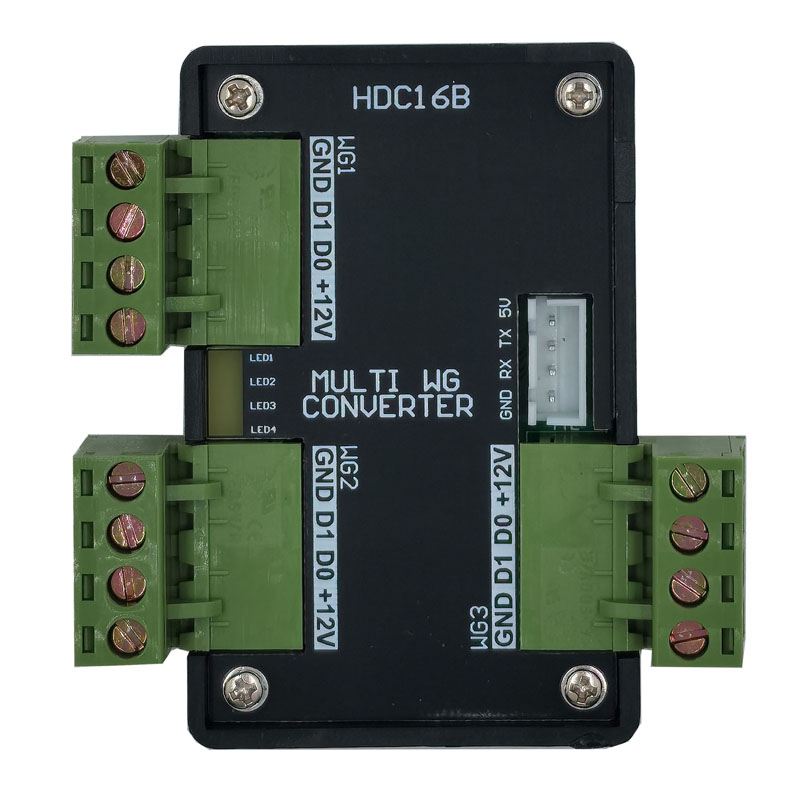

Standard mode of this series converter support 2CH Wiegand reader input (WG1 and Wg2), 1CH Wiegand reader output (WG3). Popular application for use 4 door access control, for example, some 4 door access controller have only 1CH Wiegand interface for each door, when customer request install 2 Wiegand RFIDcard reader at each side of the door, can use this Wiegand to Wiegand converter as communication splitter to change 1CH Wiegand interface to 2CH Wiegand interface, so finally 4door access controller can connect 8pcs of Wiegand RFID reader.Another typical application is connect 1pc of Wiegand RFID card reader (1CH Wiegand output) with 2pcs of access controller, for example 1pc of Wiegand RFID reader connect to access controller Wiegand input interface and also connect to face identify machine Wiegand input interface.

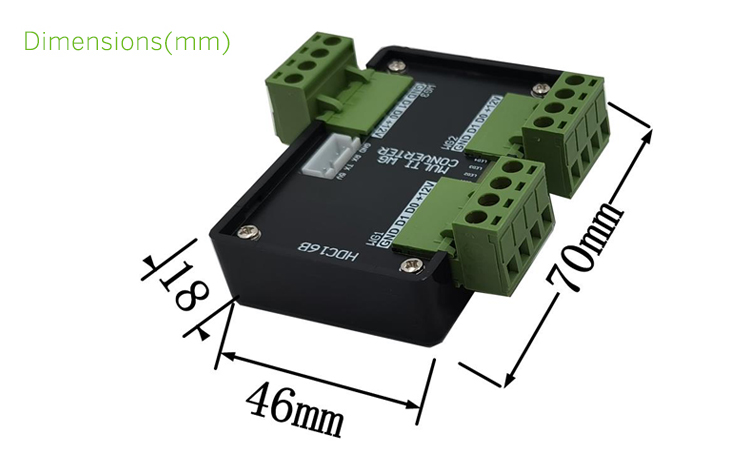

Weight | 5g |
Voltage | 12V/DC |
Power | <0.2W |
Interface | 3 channel wiegand,1 channel TTL |
Wiegand input | support Wiegand 26/32/34/35/36/37/40/42/44/66/80bit |
Wiegand output | support Wiegand 26bit or 34bit, other bit for optional |
Support reading interval time | >150ms |
RS485 communication standard | 9600, n, 8, 1 |
Operating voltage | DC 9V-24V (Wiegand output GND must connect with access control GND) |
Consumption current, not more than 30mA | |
Transmit distance | max 100m |
Operating temperature range | -35 |
Relative humidity at +15 | 80% |
Relative humidity at +25 | 90% |

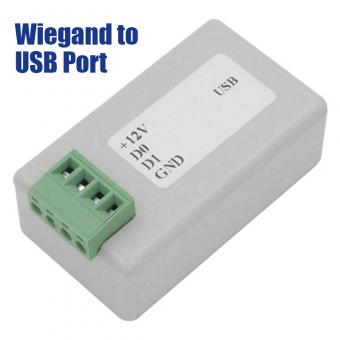

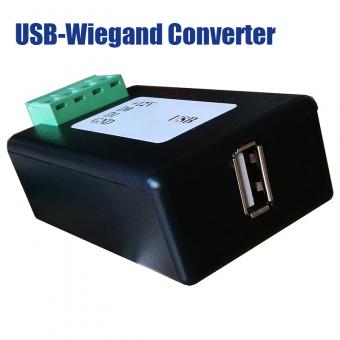

> USB converter input voltage: 9-15V 50mA> USB converter output voltage: 5V 200mA> USB interface protocol: HID
for access control system

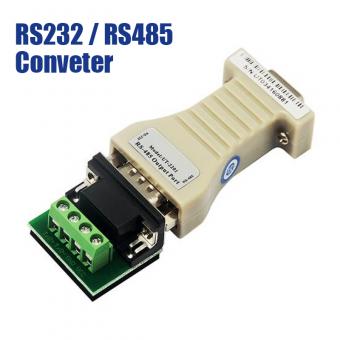

RS232 to RS485 Interface Serial Adapter Converter

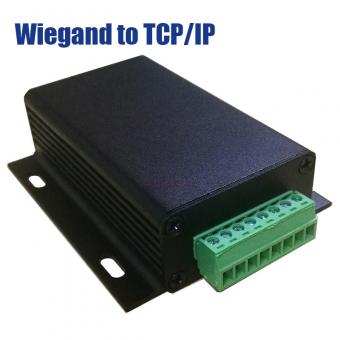

> Wiegand Converter to TCP/IP> Dimensions: 83x71x25mm> The aluminum alloy shell is used for easy installation and use
The converter uses a 9~15V/50mA power supply, and can directly use the 12V power supply of the Wiegand input port of the access controller, with a static working current of about 20mA, or an external 9~12v power adapter.

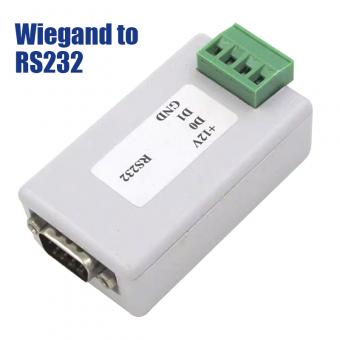

>You can change Internal code using Wiegand channel,>Interface Wiegand of Keypad to PC using Wiegand to RS232 port converter.

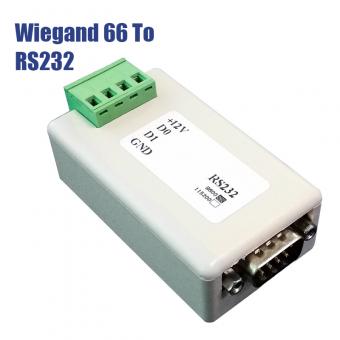

>Interface parameters: baud rate 9600N81, output WG66>Scanning device: baud rate 9600N81, output ASCII text format
The extender does not distinguish between receiving and sending, and it can be used if the wiring is correctPower supply is required at both ends of the transceiver, power supply 9~24V/30mAThe signal delay is about 50-150ms
