Touch Display Access Controller

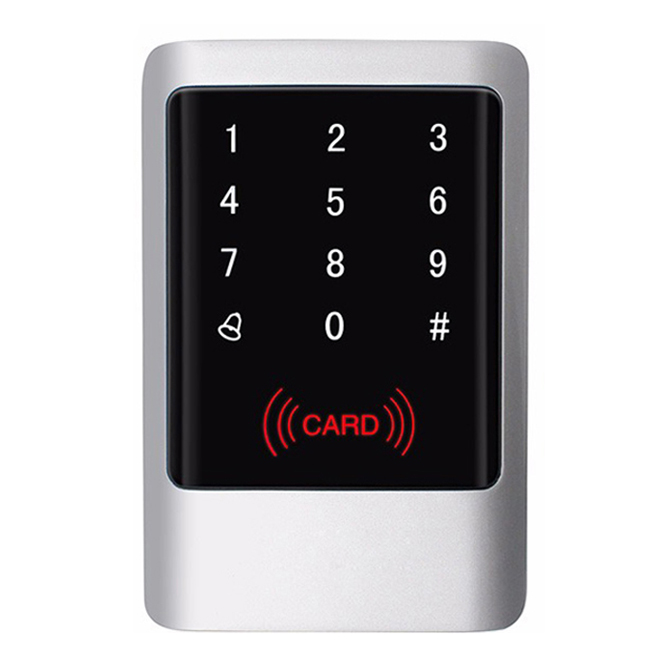

Waterproof Touch Display Access Controller RFID Metal Access Controller

> Card Type: MF or MF Card

> Waterproof degree: IP65

> Wiegand Input and Output

  • Brand:

    S4A

  • Item NO.:

    SA-TS21
Inquire Now
  • Specifications

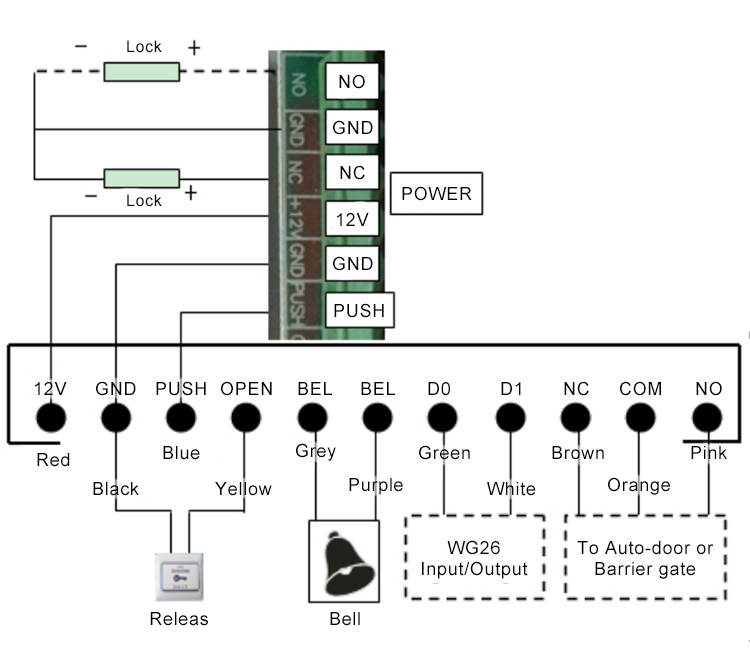

  • Wiring Diagram
  • Package
  • Download

Waterproof Touch Display Access Controller RFID Metal Access Controller

Model No.: SA-TS21


Card type

EM or MF

Working frequency

125KHz or 13.56MHz

Capacity

1000 user

Waterproof degree

IP65

Card reading distance

1-15cm

Operating voltage

DC12V ±10%

Operating current

<100mA

Ambient temperature

-20℃~70℃

Relative humidity

20%~80%

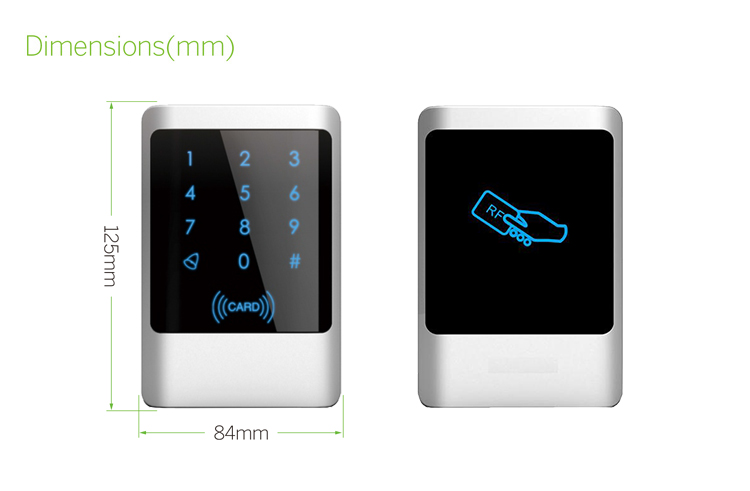

Dimensions

125×84×23mm

Weight

300g

Touch Display Access Controller

Touch Display Access Controller

Touch Display Access Controller


Touch Display Access Controller

Touch Display Access Controller

S4A Datasheet_Waterproof Touch Display Access Controller RFID Metal Access Controller

Download
