> Operating voltage: DC12~24V
> Wiegand 26/34 Input and Output
> Support admin add card, admin delete card and setting card
Brand:
S4AItem NO.:

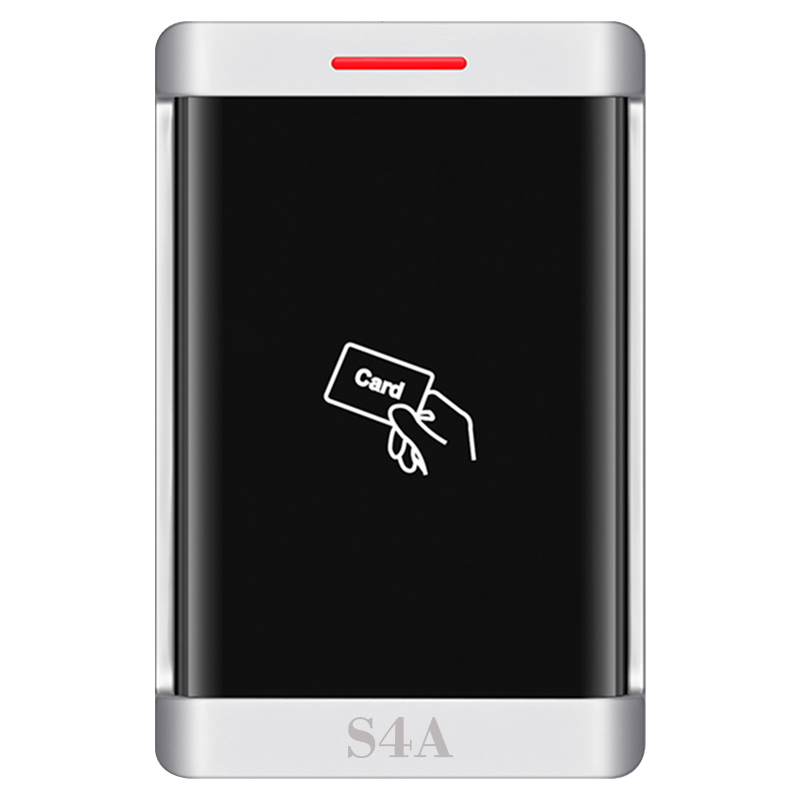

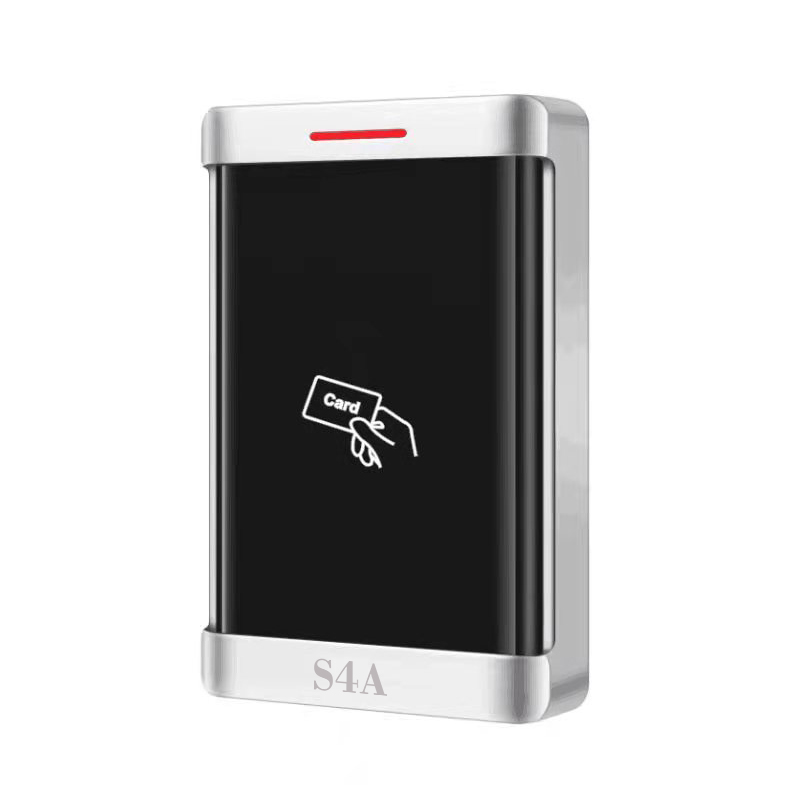

MT60Remote Control RFID Standalone Access Control with Wiegand Input and Output
Model No.: MT60
This series of products is a new generation of multifunctional standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable. It includes reader mode and standalone access control mode etc.. It's widely applied to different occasions, such as offices, residential communities, villas, banks, and prisons,s etc.
Product Feature:
> Contains reader mode, the transmission format could be adjusted by users.
> Support admin add card, admin delete card and setting card.
> 10,000 card users.
> Wiegand 26/34 Input and Output
> The unlocking signal adopts NO,NC,COM output of relay.
Capacity | 10,000 user |
Operating Voltage | DC 12-24V |
Operation Current | ≤100mA |
Standby Current | ≤35mA |
Maximum Rated Current | ≤1A |
Door Opening Time | 0-99s(Adjustable) |
Operating Temperature | -20°C~60°C |
Operating Humidity | 0%~95% |

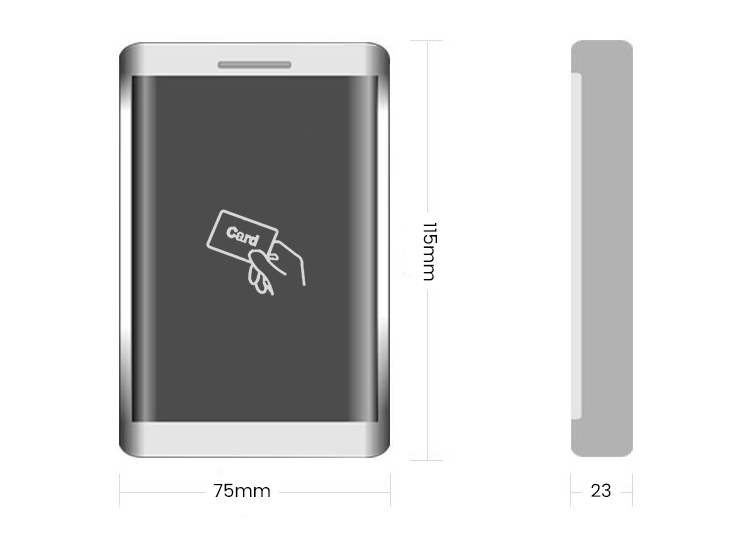

Dimensions | 115x75x23mm |
S4A User Manual_Remote Control RFID Standalone Access Control with Wiegand Input and Output
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
