Support upload/download users by APP
> Card type: EM, EM&HID, MF Card
> Waterproof, up to IP66
> Metal Design & Anti-Vandal
> Standalone, one relay
> 1,000 fingerprints, 2,000 card users
Brand:
S4AItem NO.:
SF3U Disk Fingerprint Standalone Access Control
Model No.: SF3 EM, EM&HID, MF

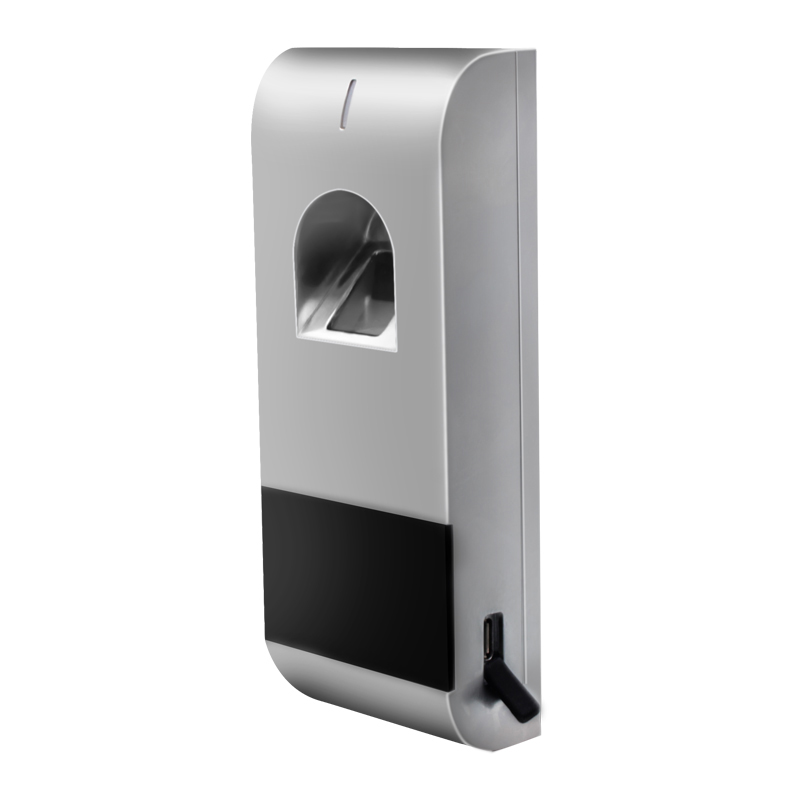

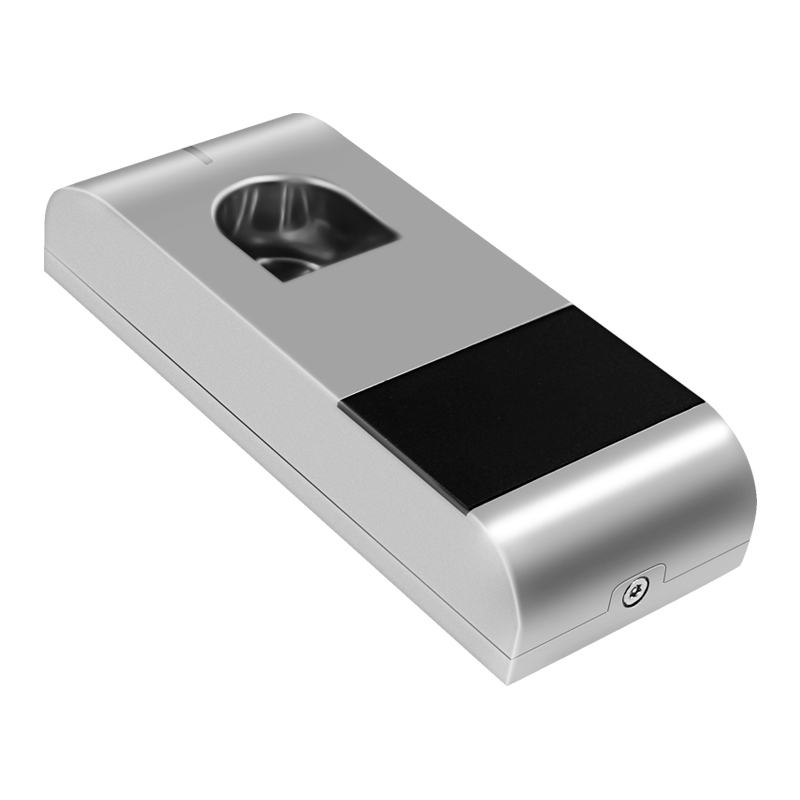

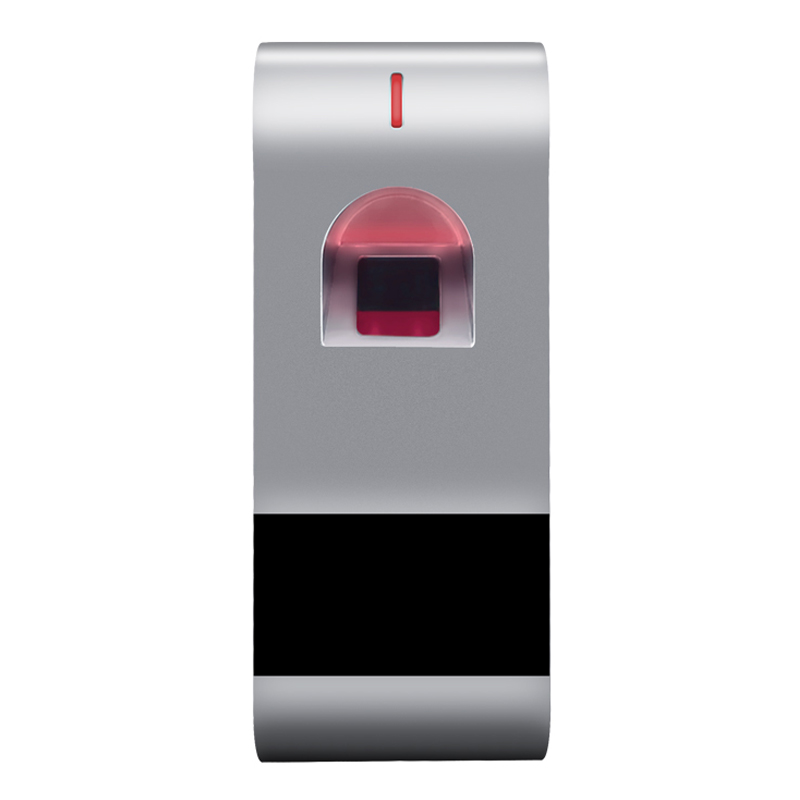

SF3 is a waterproof metal case standalone fingerprint access control with an integrated Mifare reader.
It supports transfer users by APP.
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare
> Waterproof, up to IP66
> Metal Design & Anti-Vandal
> Standalone, one relay
> 1,000 fingerprint, 2,000 card users
> Wiegand 26~44 output
> Pulse mode, toggle mode
> Multi fingerprints/cards access
> Interlock, Support Principal User

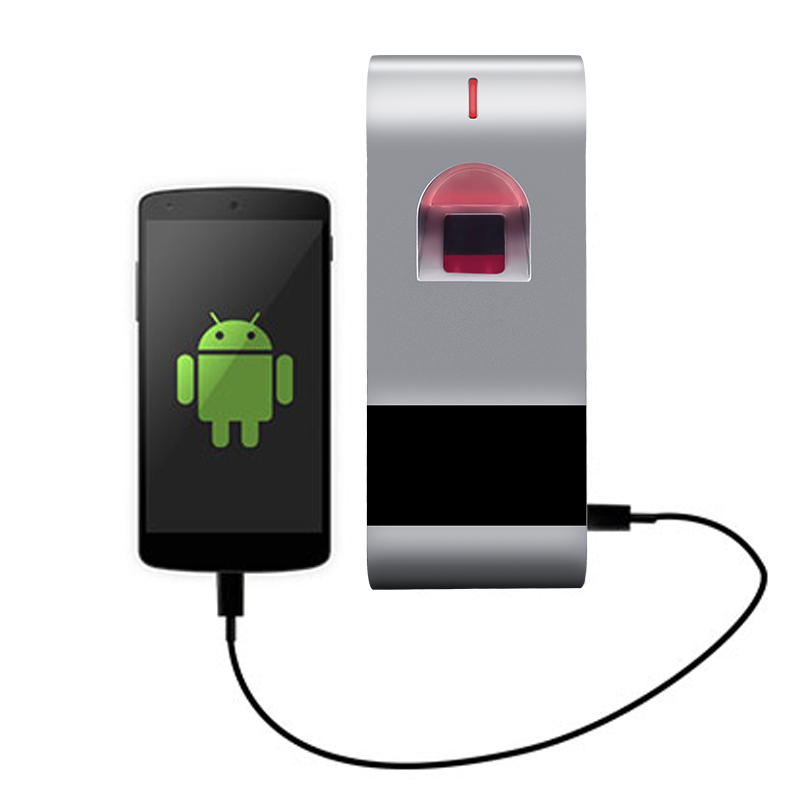

> Support upload/download users by APP
User Capacity | 3000 |
Fingerprint | 1000 |
Card | 2000 |
Operating Voltage | 12V DC |
Idle Current | < 45mA |
Proximity Card Reader | EM, EM&HID, Mifare |
Radio Technology | 125KHz Proximity Card or 13.56MHz Mifare tag/card |
Read Range | EM, EM&HID: 1~4cm; Mifare: 1~2cm |
Fingerprint Reader | Optical Fingerprint Module |
Resolution | 500DPI |
Identification time | <1S |
FAR | <0.001% |
FR | <0.01% |

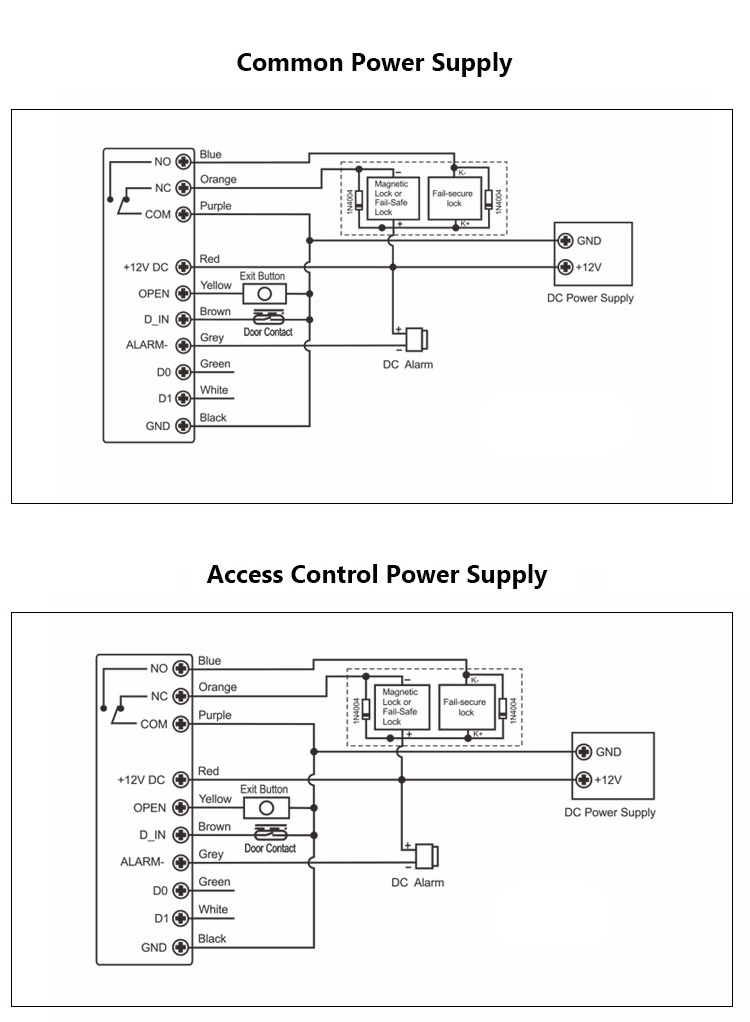

Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand output |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Wiegand Interface | Wiegand 26~44bits output |
Environment | Meets IP66 |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default |
-40°C ~ 60°C (-40°F ~ 140°F)--Optional | |
Operating Humidity | 10%RH ~ 99%RH |
Physical | Zinc-Alloy |
Color | Silver |

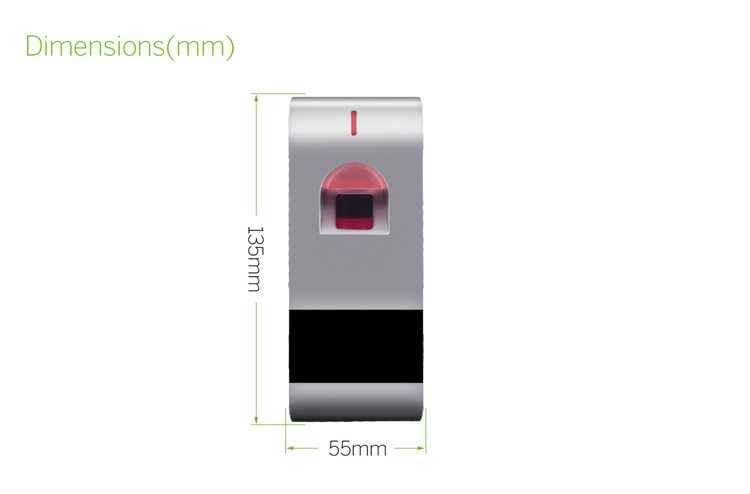

Dimensions | L135 x W55 x H26 (mm) |
Unit Weight | 480g |
Shipping Weight | 500g |
S4A User Manual SF3_U Disk Fingerprint Standalone Access Control
