> Two Accesses: Fingerprin, Pincode
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
> 1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
Brand:
S4AItem NO.:
SF6Waterproof IP66 Fingerprint Access Control
Model No.: SF6 Pincode&Finger
SF6 is a standalone fingerprint access control with keypad. It can be easily operated through the keypad and master, and supports fingerprint access and PIN access, with external alarm, door contact, exit button.

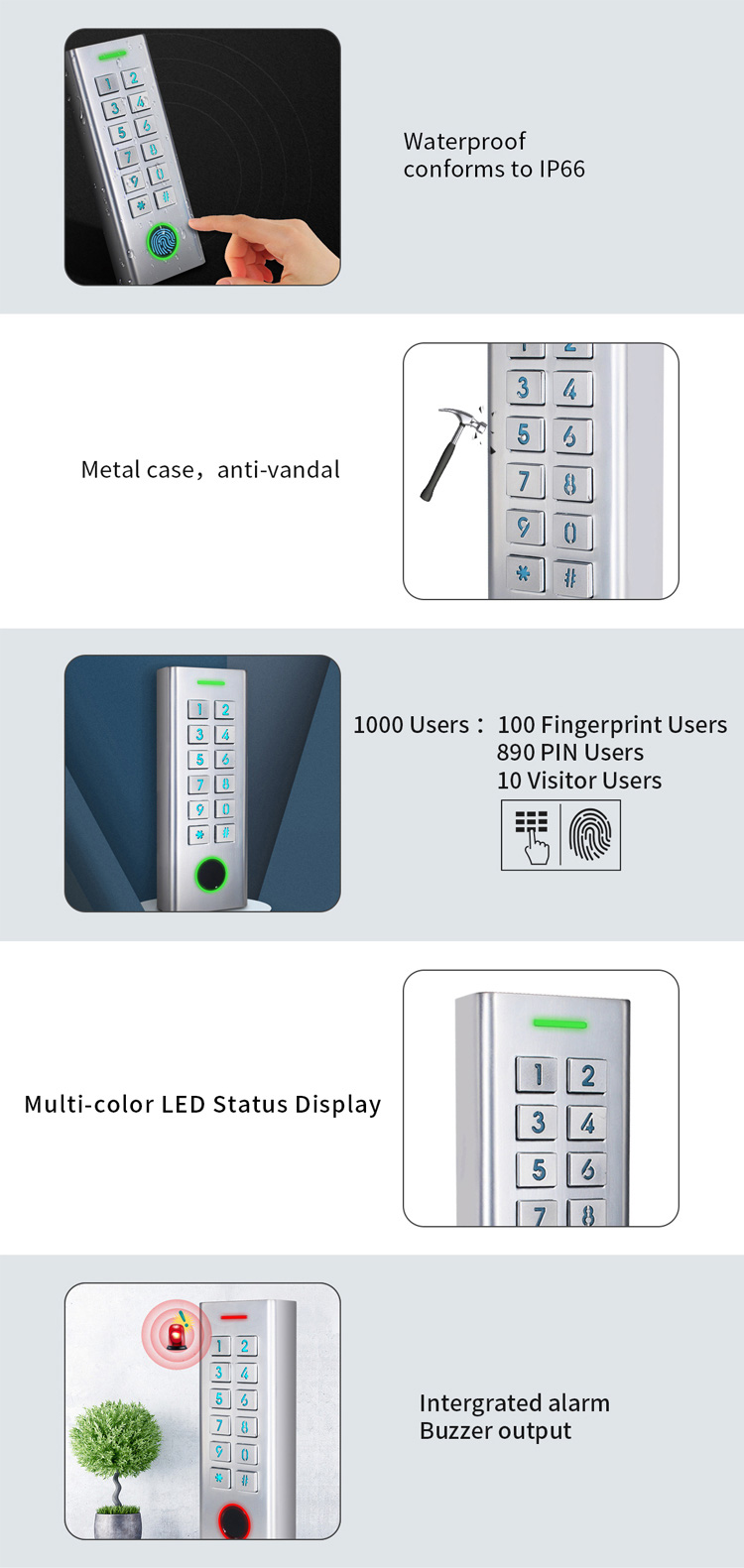

Features:
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> 1000 Users: 100 Fingerprint Users, 890 PIN Users, 10 Visitor Users
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
User Capacity | 1000 |
Fingerprint | 100 |
PIN | 890 |
Visitor | 10 |
PIN Length | 4~6 digits |
Operating Voltage | 12V DC |
Idle Current | ≤ 45mA |
Active Current | ≤ 150mA |
Fingerprint Reader | Capacitive Fingerprint Module |
Resolution | 500DPI |
Identification time | <1S |
FAR | <0.001% |
FRR | <0.01% |

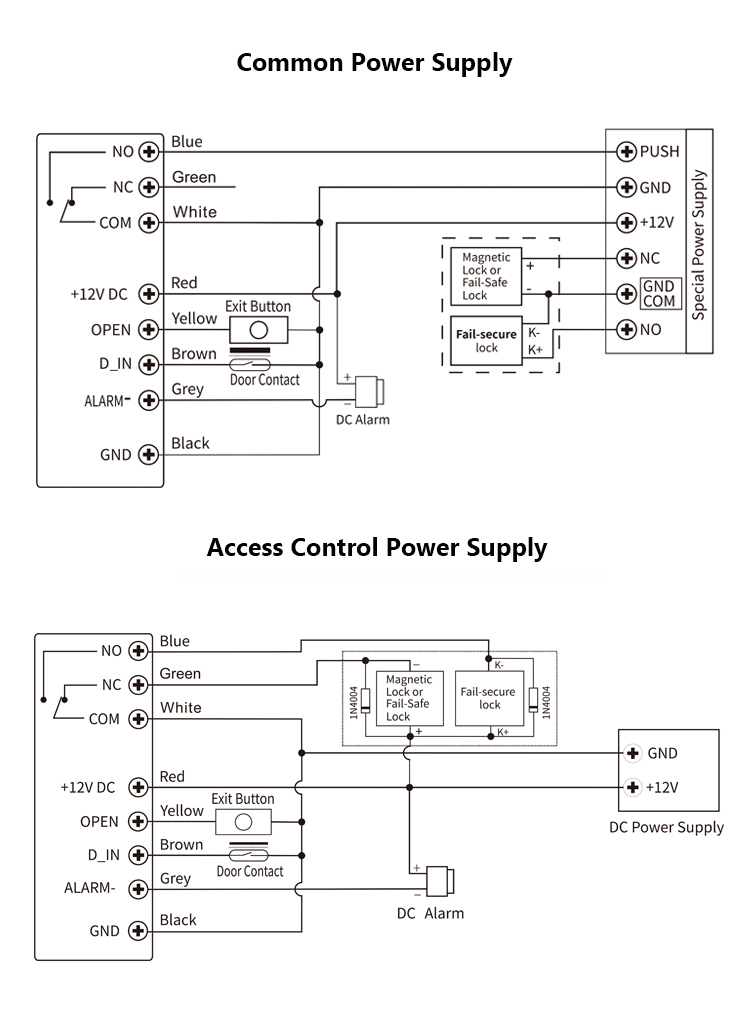

Wiring Connections | Relay output, exit button, alarm, door contact |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Adjustable Alarm Output Time | 0~3 Minutes (default: 1 minute) |
Lock Output Load | 2 Amp Maximum |
Alarm Output Load | 5 Amp Maximum |
Environment | Meets IP66 |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default |
-40°C ~ 60°C (-40°F ~ 140°F)--Optional | |
Operating Humidity | 20%RH ~ 90%RH |
Physical | Zinc-Alloy |
Surface Finish | Powder Coat |

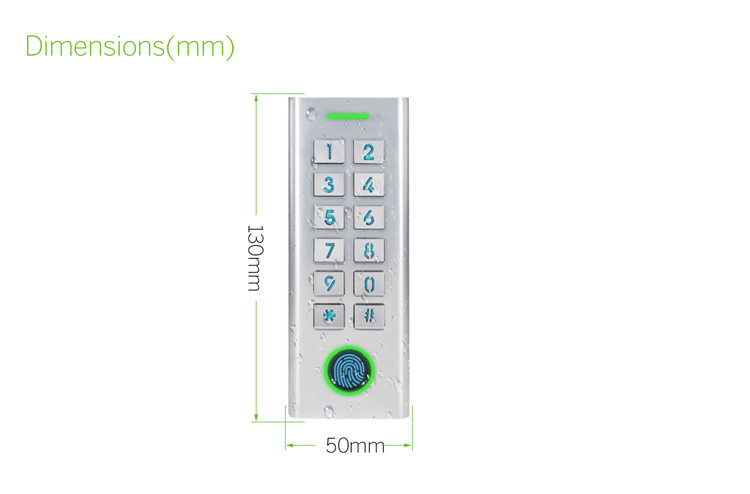

Dimensions | L130 x W50 x H25 (mm) |
Unit Weight | 136g |
Shipping Weight | 189g |
