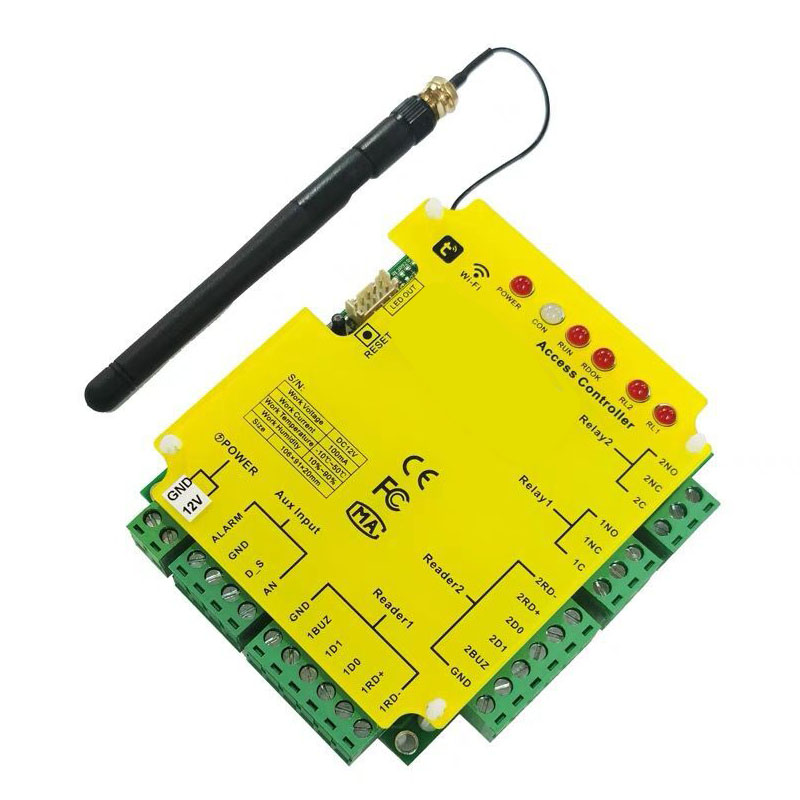

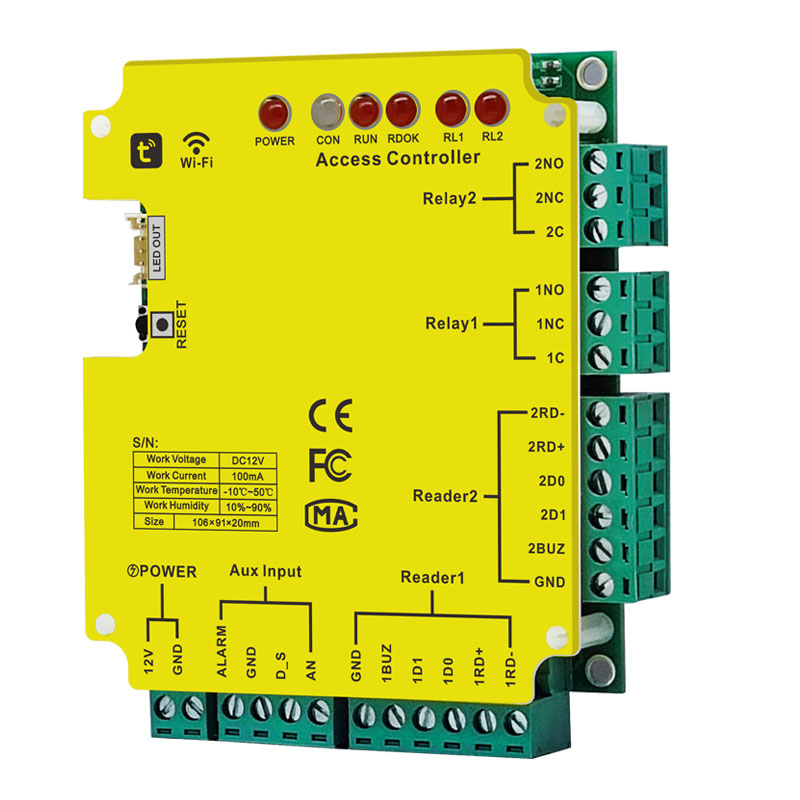

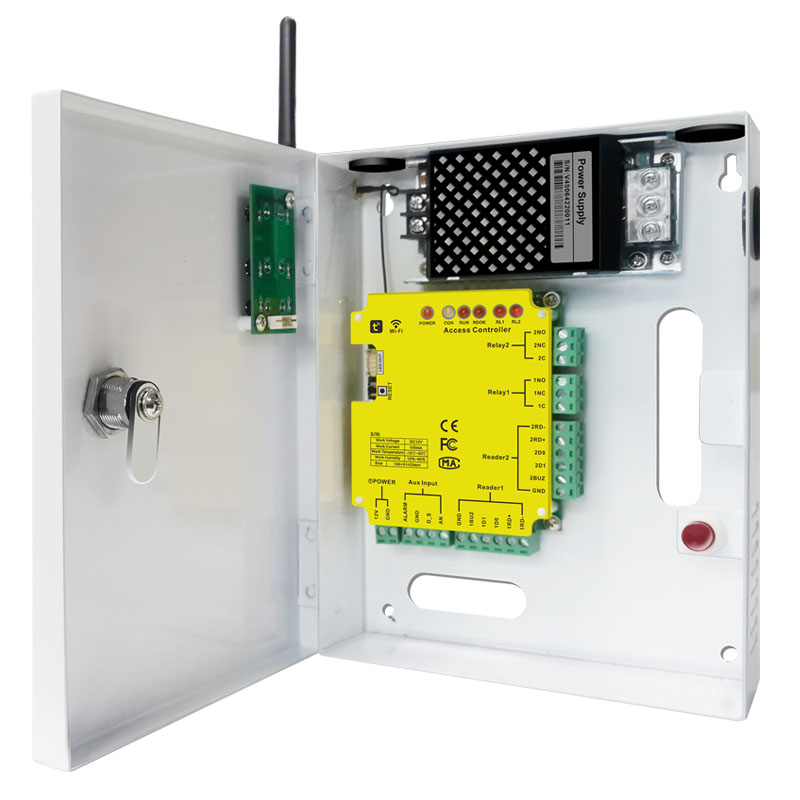

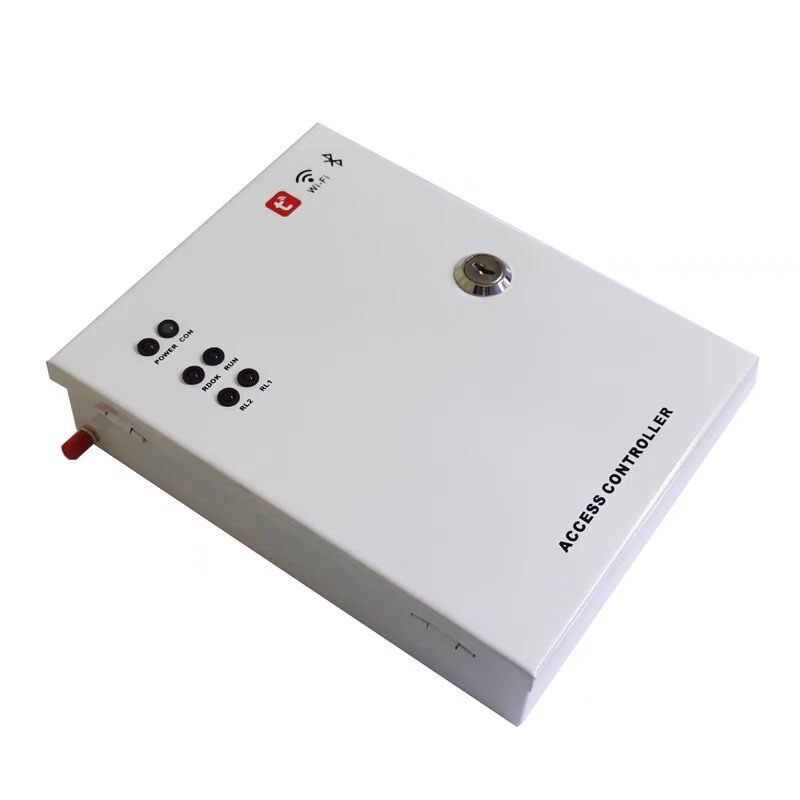

Tuya Control Board Relay System

>user capacity:1000

>authentication mode:Card/password/card+password

>temporary password:10


  • Brand:

    S4A

  • Item NO.:

    ACB-TUYA01
Inquire Now
  • Specifications

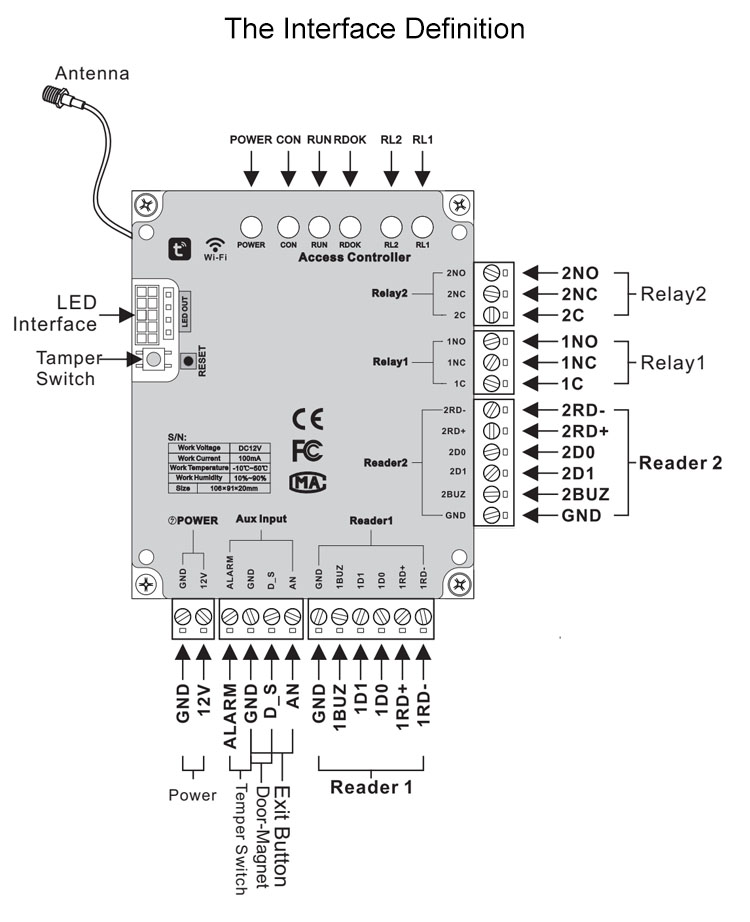

  • Wiring Diagram
  • Package

Tuya Control Board Relay System

Model No.: ACB-TUYA01


Appearance material

PMMA, iron

Working Voltage\Current

DC12V+10%\0.5A (no load)

processor

High-performance 8-bit enhanced MCU

way of communication

Wi-Fi/Bluetooth

recognition speed

<0.5s

user capacity

1000

authentication mode

Card/password/card+password

temporary password

10

Password support digits

6-digit password

lock control output

1

Alarm Output

1

Tamper switch

1

Exit button

1

Magnetic input

1

working environment

-20°C-60°C/10%-90%

Degree of protection

IP53

installation method

wall hanging

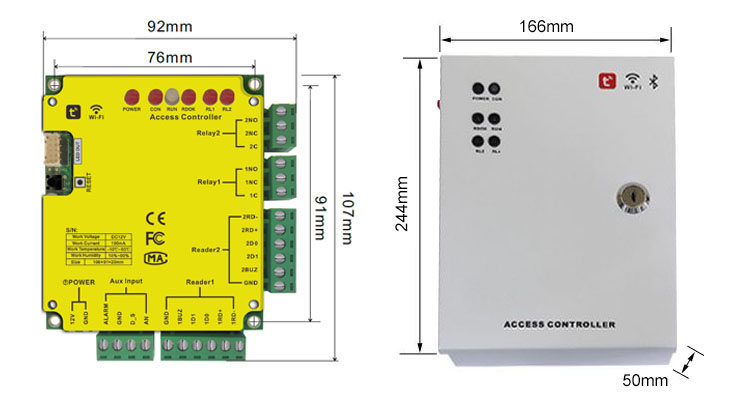

size

214x166x50mm


Tuya Smart Relay


Tuya Smart Relay

Tuya Smart Relay

Related Tags : Tuya Smart Relay TUYA Access Controller Access Controller Tuya Access Control
