High-Security Standalone Access Control With Remote Control

> Card type: EM or MF Card

> Voltage: DC12~24V


  • Brand:

    S4A
  • Item NO.:

    M002
  • Specifications

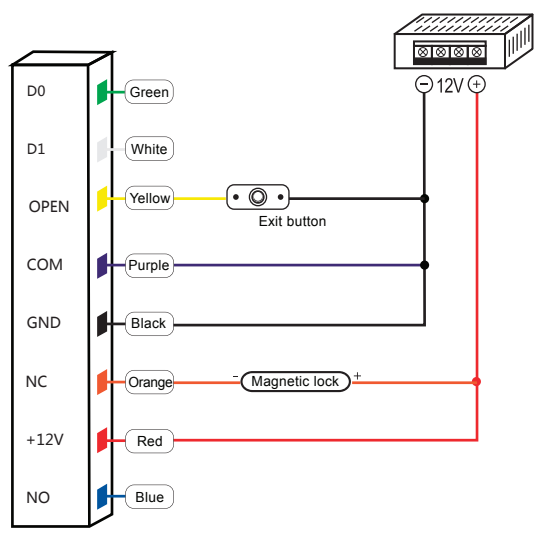

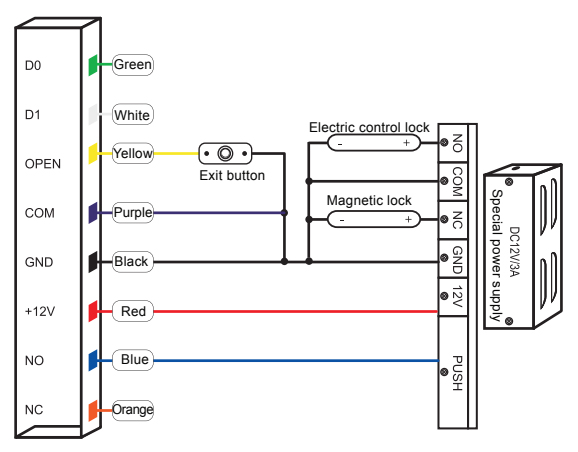

  • Wiring Diagram
  • Package
  • Download

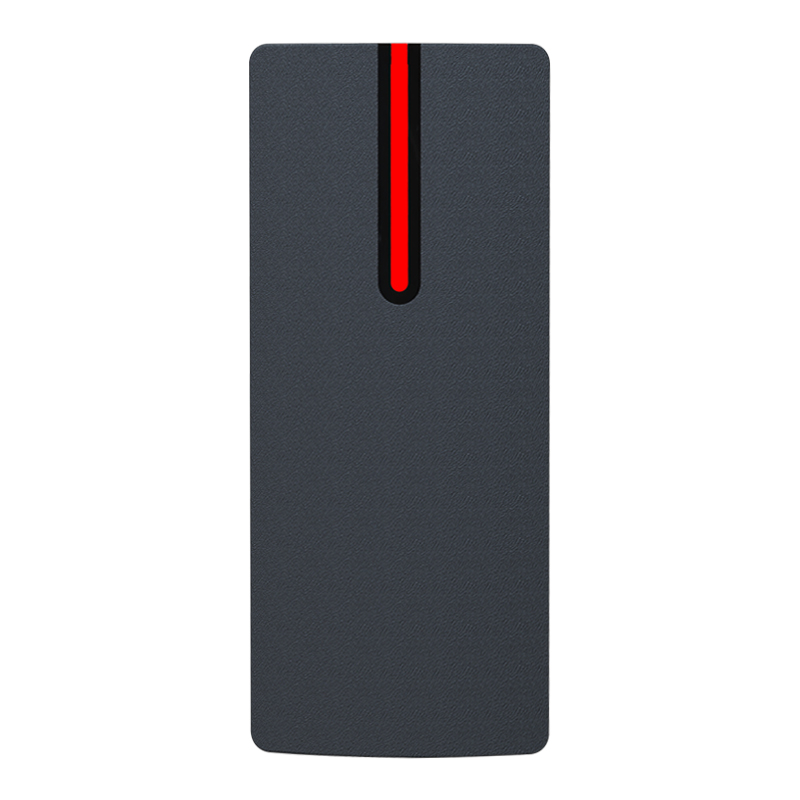

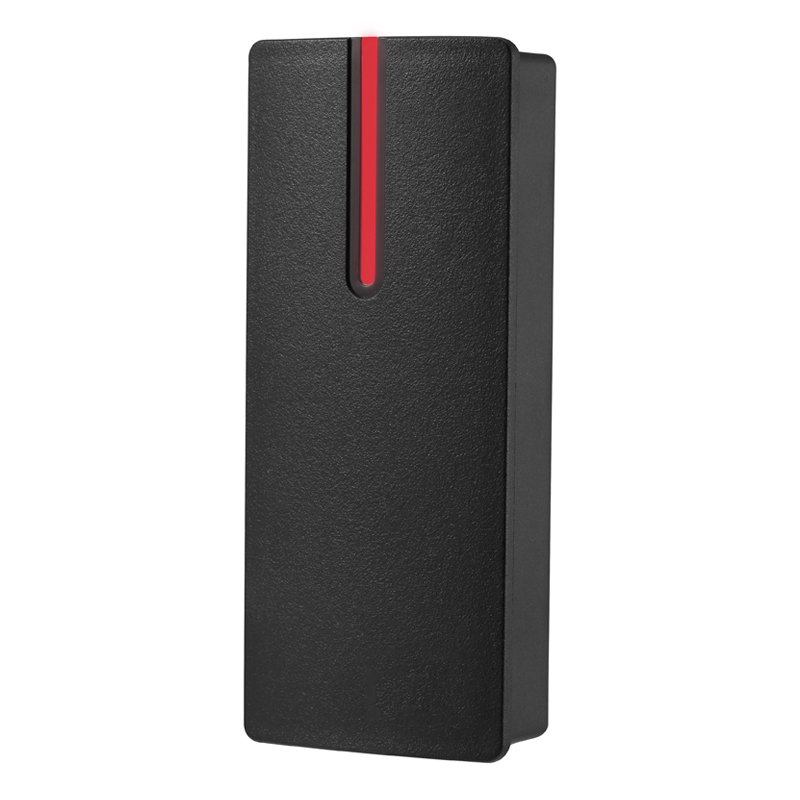

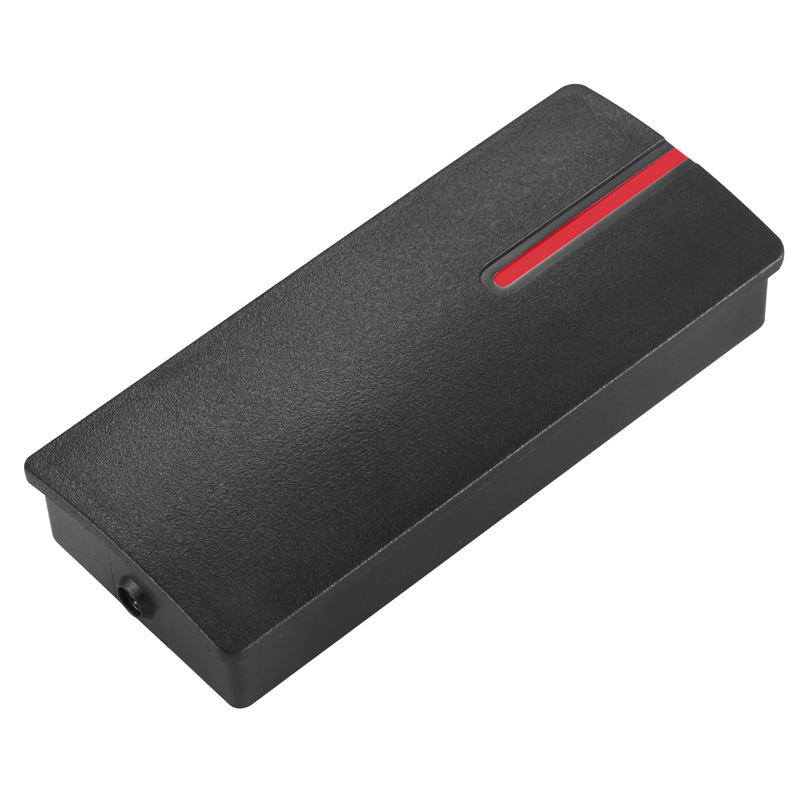

High-Security Standalone Access Control With Remote Control

Model No.: M002 EM, MF


Introduction:

It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It includes reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as offices,residential communities, villa,bank and prison etc.


Features:

> Card Type: Read 125KHz EM Card and 13.56MHz Mifare Card.

> Keypad Characteristic: Operate by infrared remote control.

> Output Way: Contains reader mode, the transmission format could be adjusted by users.

> Admin Card: Support admin add card, admin delete card and setting card.

> User Capacity: 10,000 card users.

> Unlocking signal: The unlocking signal adopts NO,NC,COM output of relay.


User Capacity

10,000 card users

Operating Voltage

DC 12~24V

Operation Current

≤100mA

Standby Current

≤35mA

Maximum Rated Current

≤1A

Door Opening Time

0-99s(Adjustable)

Operating Temperature

-20°C~60°C

Operating Humidity

0%~95%

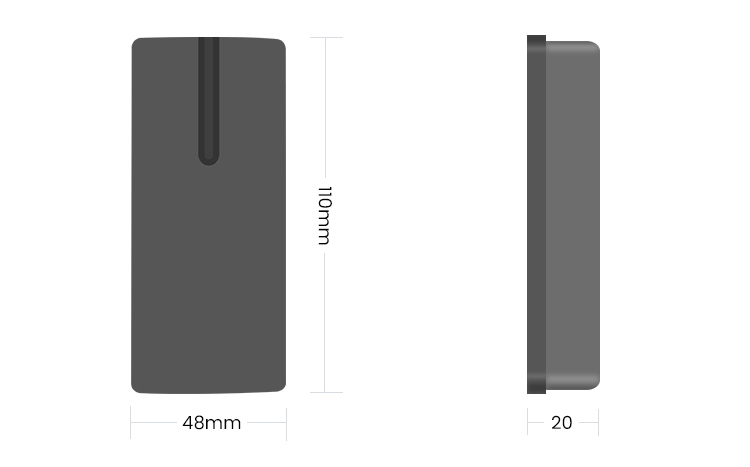

Dimensions

110x48x20mm

RFID Access Control


RFID Access ControlRFID Access Control

RFID Access Control

S4A Datasheet_High-Security Standalone Access Control With Remote Control
