>Capacitive Fingerprint Sensor,Face + Finger + IC + Pincode + TTLock
Brand:
S4AItem NO.:

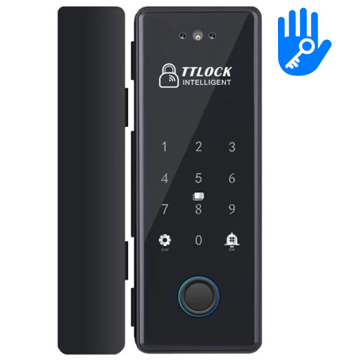

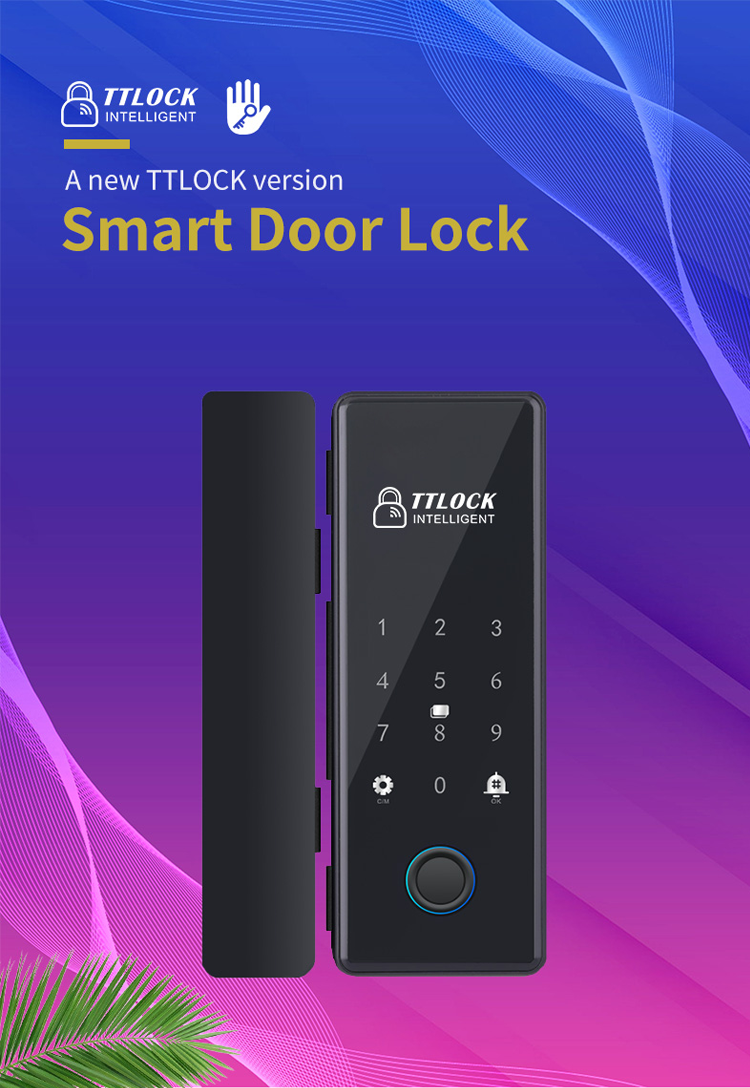

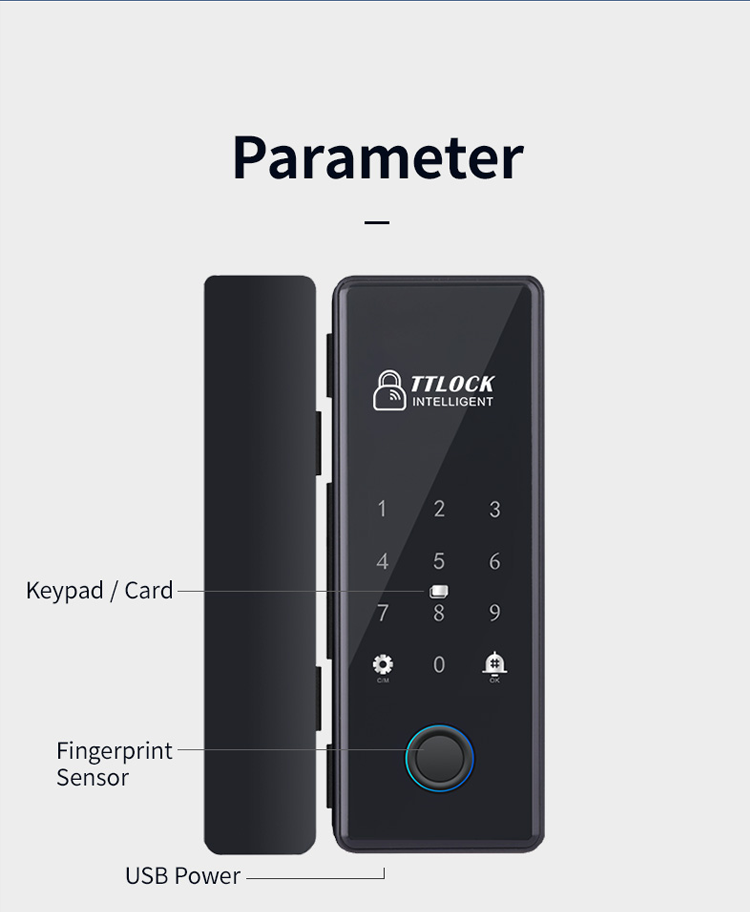

K190TTlock Facial Sliding And Swing Glass Door Lock
Model No.: K190
| Product Parameter | Parameter Descr1ption |
| S4A Model | K190-T |
| Product Name | TTlock Facial Sliding And Swing Glass Door Lock |

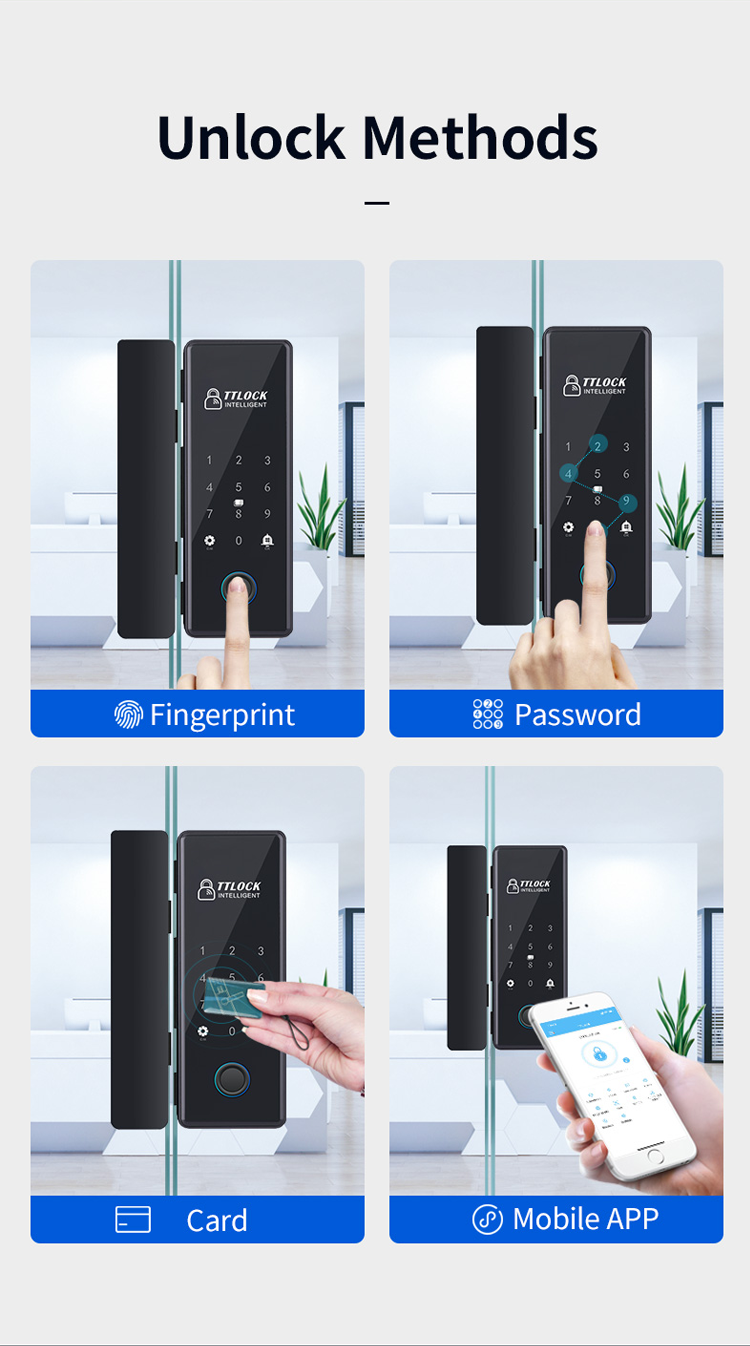

| Unlock method | Capacitive Fingerprint Sensor,Face + Finger + IC + Pincode + TTLock |

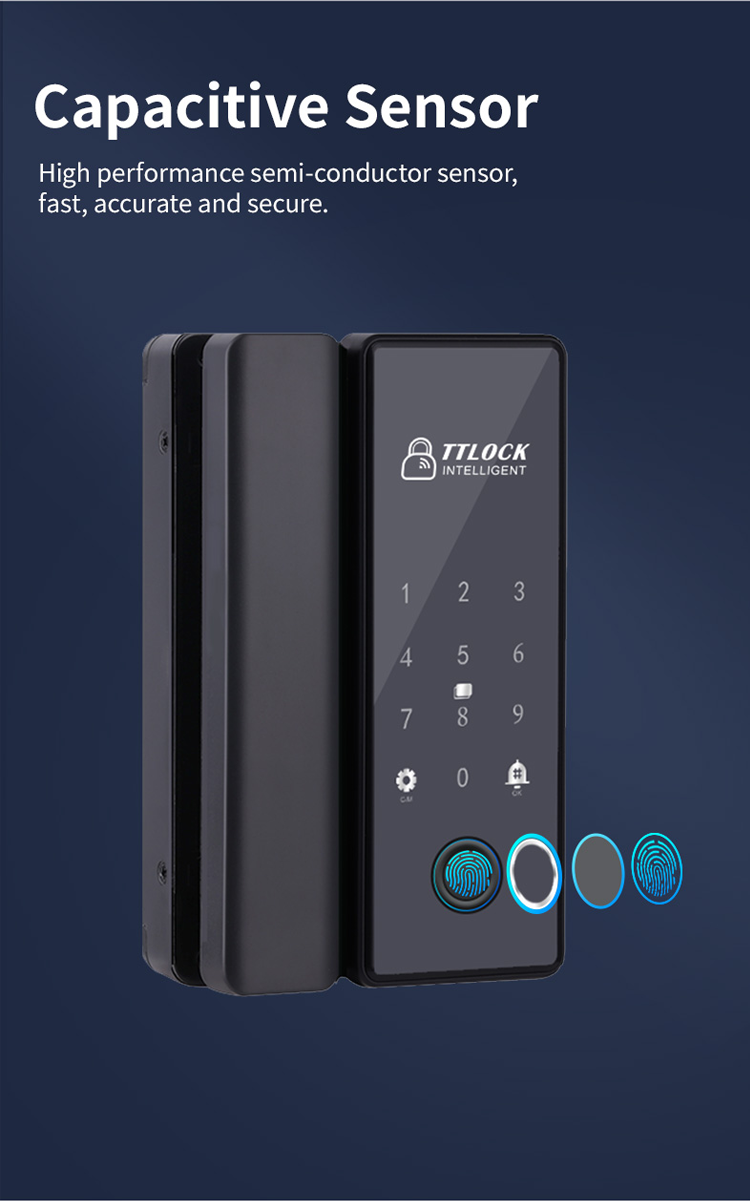

| Fingerprint Type | Semiconductor Fingerprint Sensor |
| Recognition speed | 0.58 |
| Recognition error | ≤0.001% |
| Fingerprint capacity | 100 pieces |
| Password capacity | 250 |
| Swipe card capacity | 1000 |
| Remote control capacity | share 1000 capacity with the card |
| Card type | IC card (M1 card) |
| Working temperature | -25C~ 65°C |
| Working humidity | 5~95%RH (no condensation) |
| Working power supply | 4 1.5V AA alkaline dry batteries |

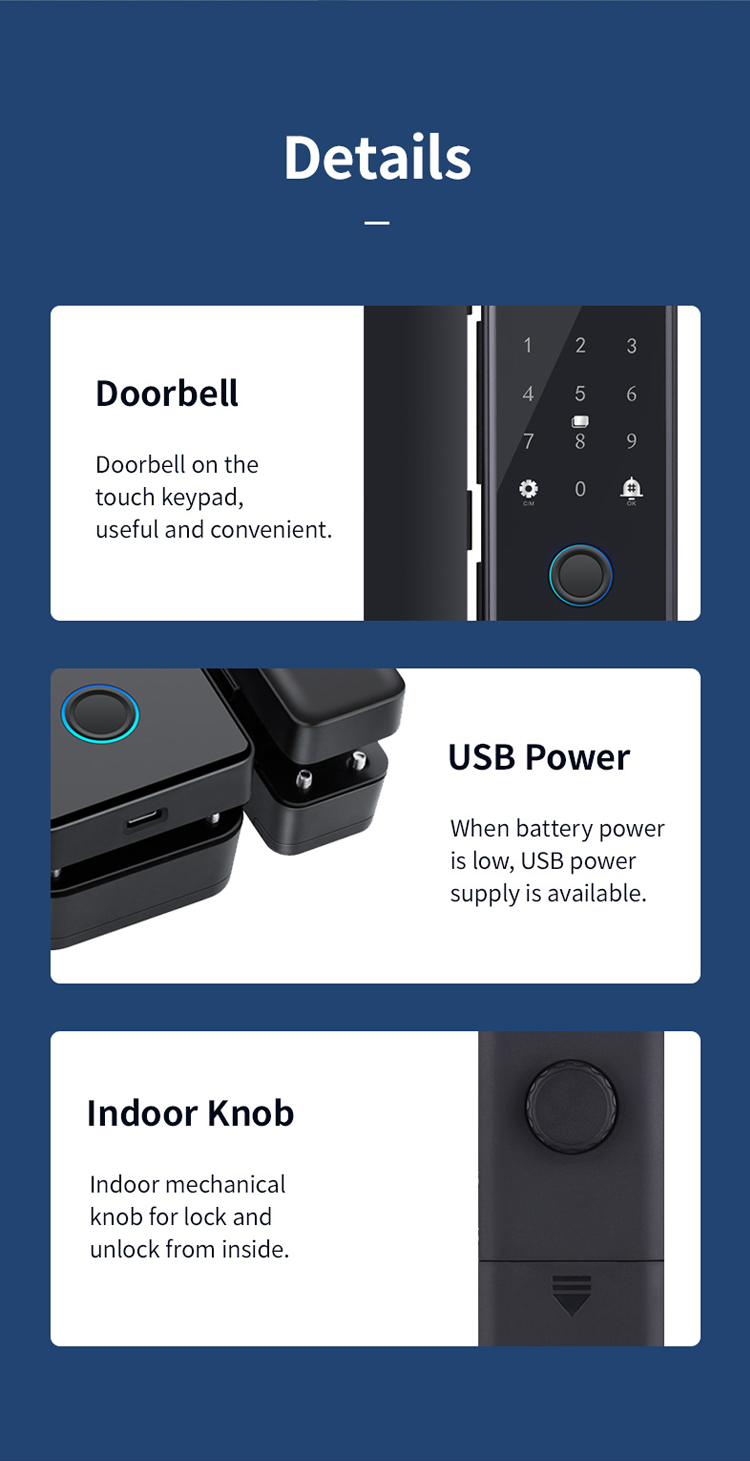

| Emergency power supply | Micro-USB (Android interface, can be connected to power bank for power supply) |
| Power current | static ≤ 50uA, dynamic ≤ 200mA |
| Data download | Tongtong lock APP |

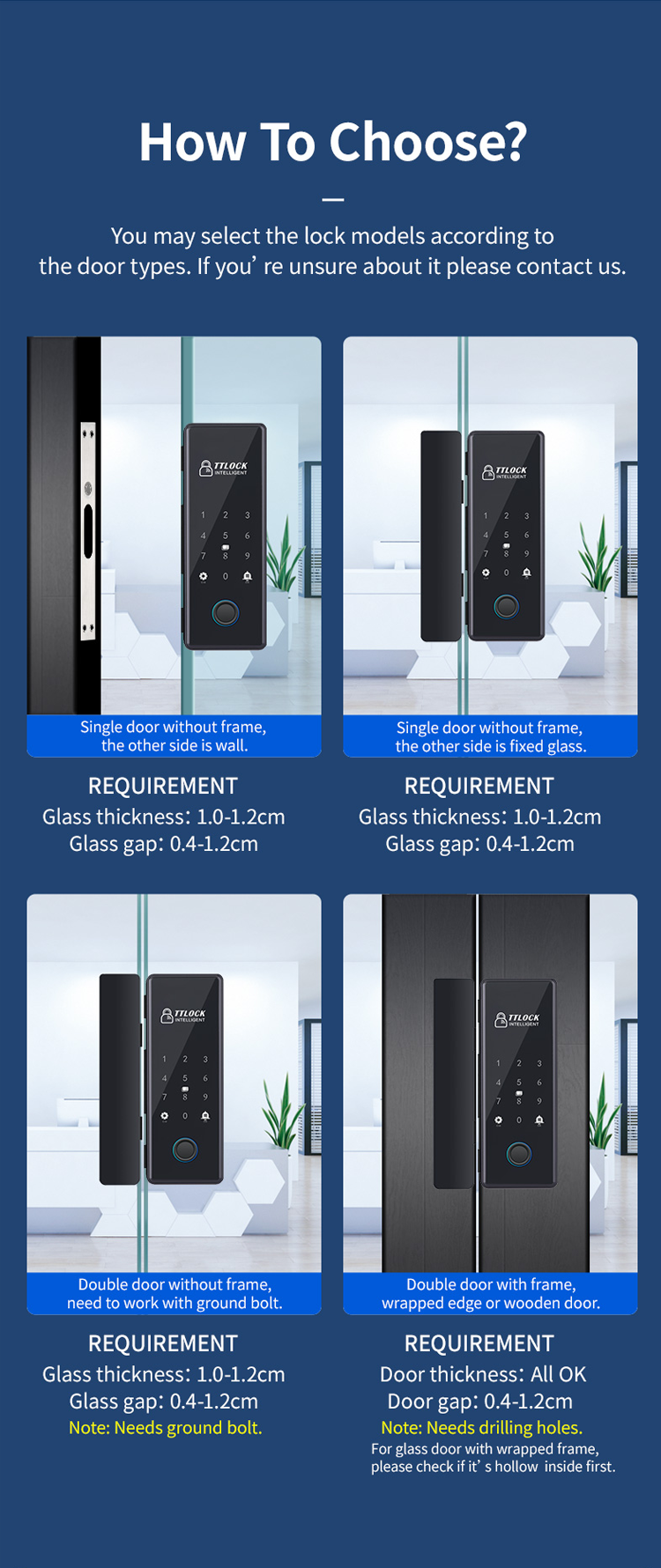

| Scope of application | 12mm frameless glass door (door seam size 4-15mm) 30-120mm framed glass door/wooden door |
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
