> Card Type: MF Card
> Material: aluminum alloy housing
> Display: OLED
Brand:
S4AItem NO.:

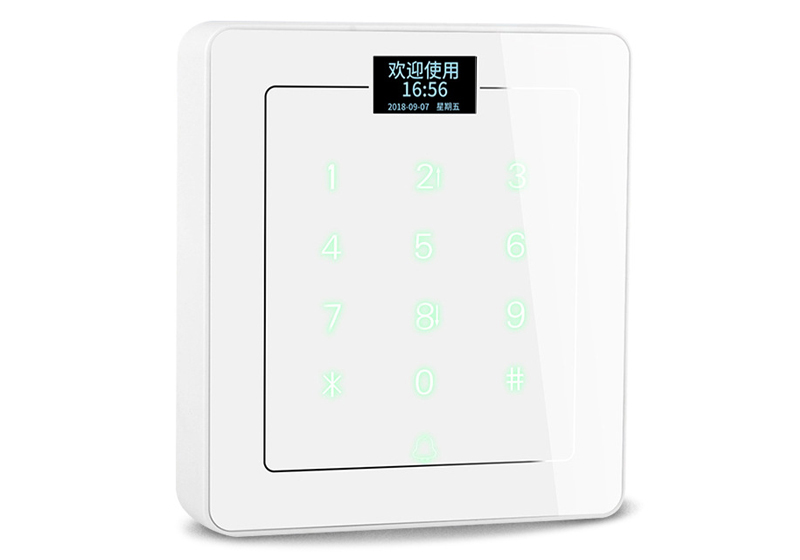

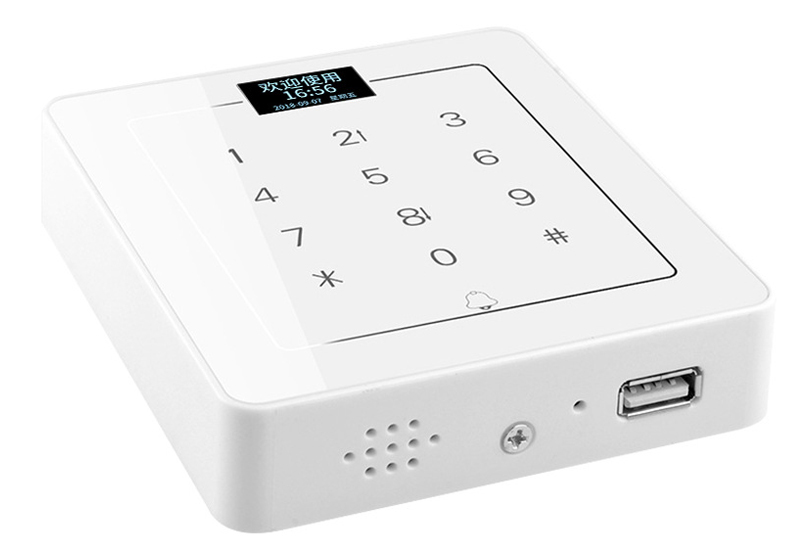

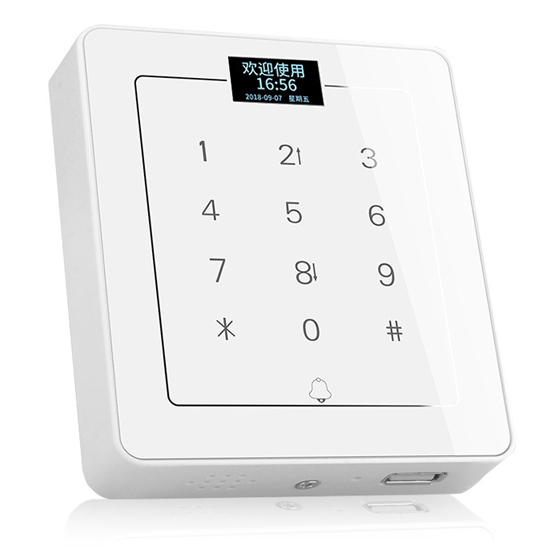

C800-WTouch Screen Keypad Access Controller with DoorBell
Model No.: C800-W MF
Card capacity: 1000
Password capacity: 1000
Storage capacity:100000
Display: OLED
Access card reader mode no card capacity limit
Comes with an independent backlight doorbell button
U-disk to download and upload user information
V-Self-service excel report for attendance
TXT form original attendance record
Communication way: U-disk
Voice: Yes
Material | Strong aluminum alloy |
User card Capacity | 1000 |
Record Capacity | 100000 |
Card frequency | Mifare-13.56MHz |
Display | OLED low power consumption |
Waterproof Rate | Non-Waterproof |
User Password Capacity | 1000 groups |
Wiegand Protocol | Standard WG26/WG34 |
Voice Prompt function | Chinese and English language support |
Anti-tamper alarm | Support |

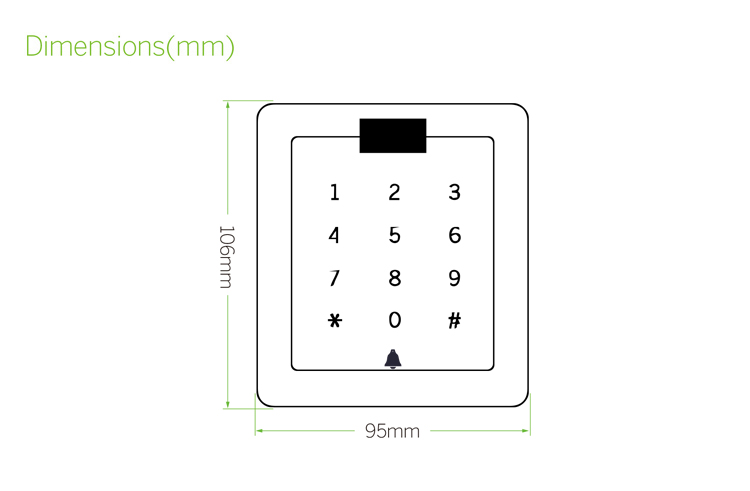

Dimension | 106 x 95 x 22.5mm |
S4A Datasheet_Touch Screen Keypad Access Controller with DoorBell
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
