Standalone Access Controller Standalone Access Controller Standalone Access Controller

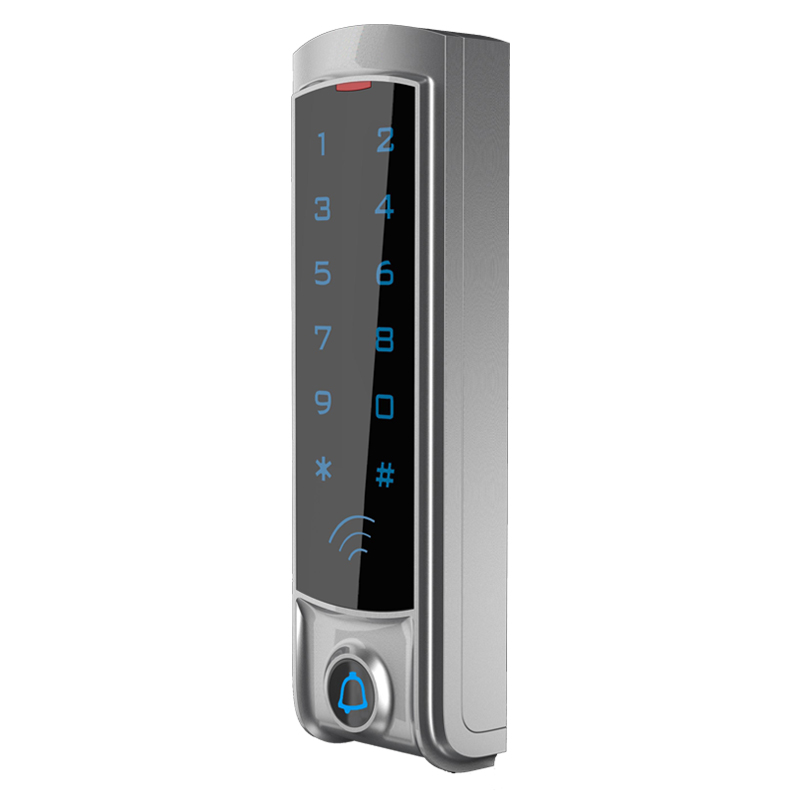

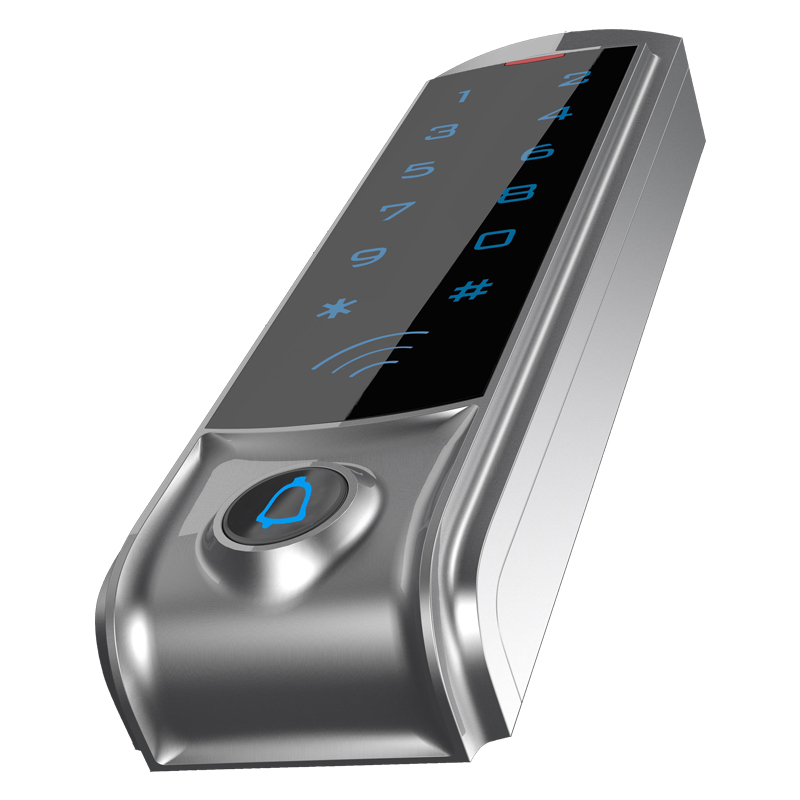

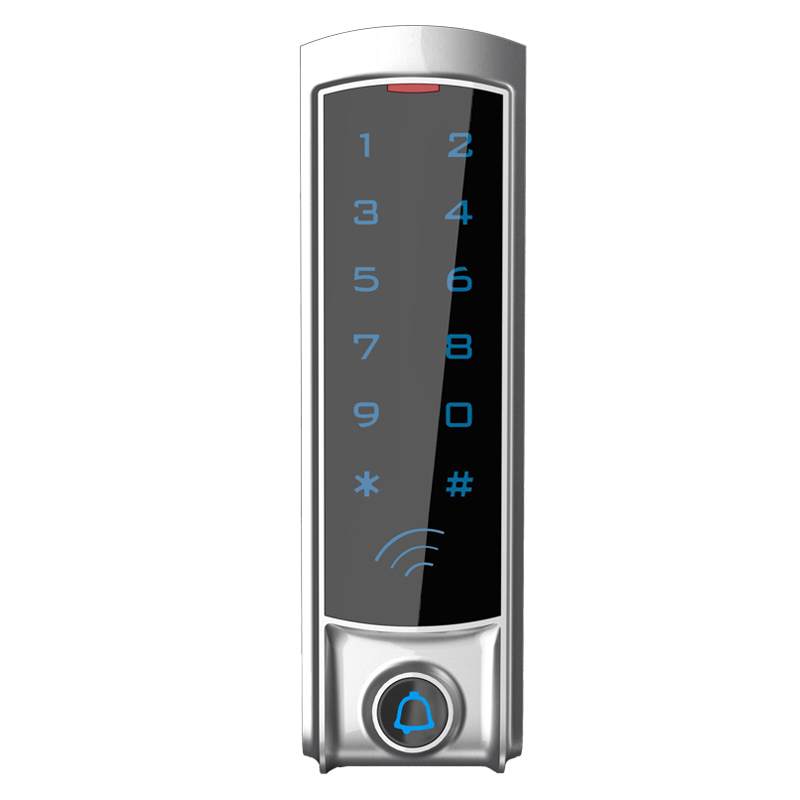

Metal Backlight Touch Screen Keypad Card Password Reader Standalone Access Controller

> Card Type: EM Card

> Metal case, anti-vandal

> Digital backlit touch keypad

> Multi-function standalone access controller and reader,

> WG interface: WG26 Input / output


  • Brand:

    S4A

  • Item NO.:

    T2
Inquire Now
  • Specifications

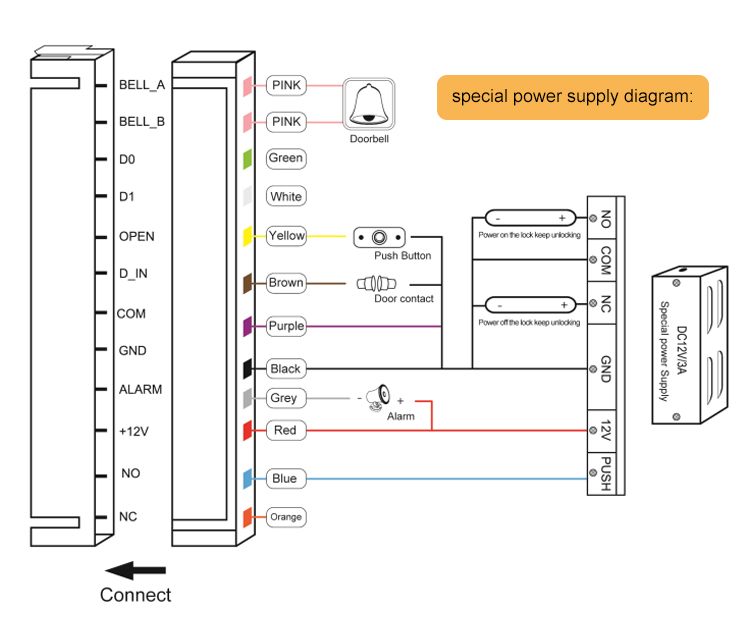

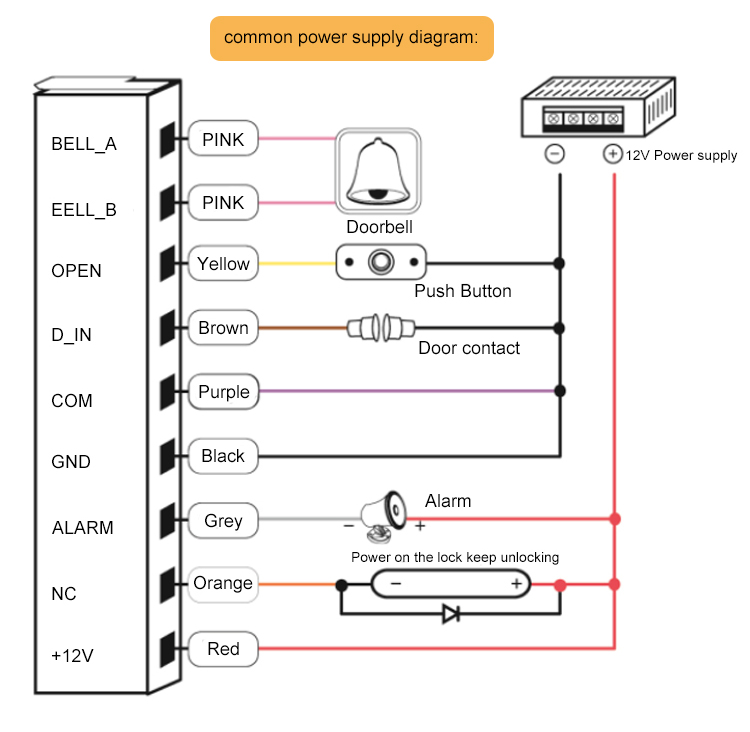

  • Wiring Diagram

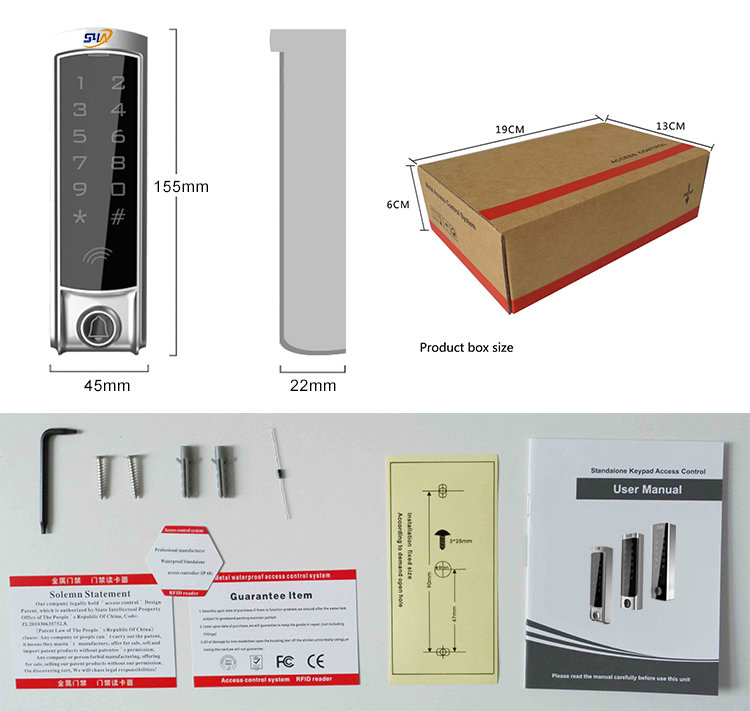

  • Package

Metal Backlight Touch Screen Keypad Card Password Reader Standalone Access Controller

Model No.: T2 EM


Product feature:

> Metal case, anti-vandal

> Digital backlit touch keypad

> Multi-function standalone access controller and reader,

> WG interface: WG26 Input / output

> Capacity: 2000 cards / codes


Card type

EM

Working voltage

DC12V±10%

Reading Range

3-6cm

Humidity

10%~90% RH

Door Opening Time

0~99s(Adjustable)

Sleep electricity

≤30mA

Ambient temperature

-45℃~60℃

Electric lock output

≤3A

Short-circuit Protect

≤100μS

Dimensions

155x45x20mm

Standalone Access Controller

Standalone Access Controller

Standalone Access Controller


Standalone Access ControllerStandalone Access Controller

Standalone Access Controller

Related Tags : Standalone Access Controller Touch Screen Keypad Keypad Reader Access Control Touch Screen Controller
